NEW injection molding machine incremental solid shaft replaced dust and strong encoder NOC-S1000-2HC-HENGXIANG

Overview

Quick Details

Place of Origin:: China

Brand Name:: HEN GXIANG

Model Number:: HENGXIANG S50 encoder

Usage:: PRESSURE SENSOR

Theory:: Optical sensor

Output:: square-wave signal

Item:: S50 rotary encoder 1000ppr

External diameter:: 50mm

Shaft diameter:: 8mm (D type)

Thickness:: 30mm

Resolution:: up to 23040PPR

Protection grade:: IP50 & IP65

Supply voltage:: DC5V & DC8-30V

Output mode:: NPN & voltage output & difference output

Wire length:: 1M

Weight:: about 190g (with package)

Packaging & Delivery

Selling Units:: Single item

Single package size:: 10X10X10 cm

Single gross weight:: 0.200 kg

Package Type:: Carton Box for HENGXIANG S50 replacement encoder 1024ppr long driver output

Lead Time :

Quantity(Pieces)	1 - 10	>10
Est. Time(days)	7	To be negotiated

Products Description

WHY CHOOSE HENGXIANG ?.

* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard

we can offer the same equivalent product of NOC-S1000-2HC

with the same dimension and parameters.

--1000 ppr ,A+B+Z+--

external diameter 50mm

--solid shaft 8mm

--NPN circuit putput, high voltage

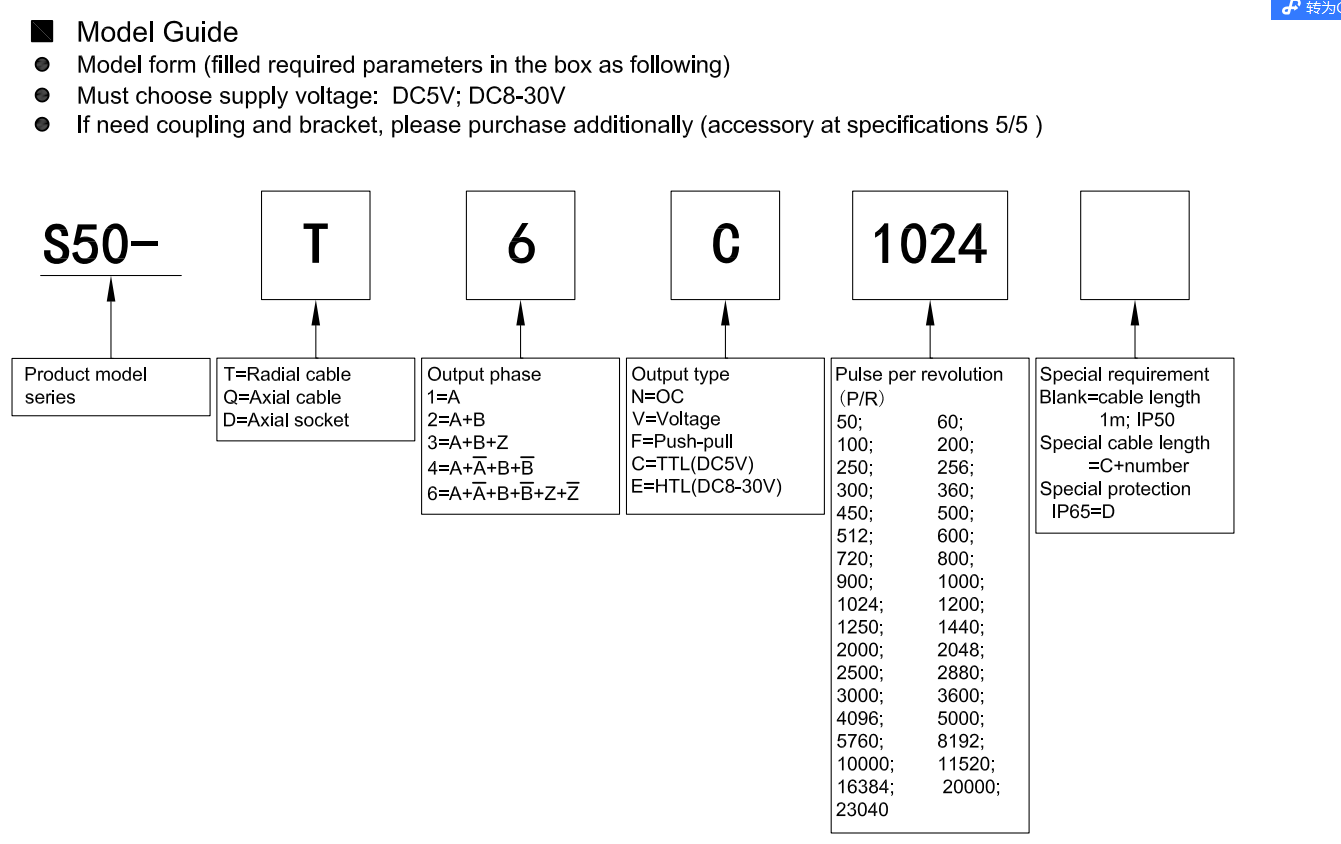

Model Selection Guide

Manufacturing Dimensions

Product Paramenters

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	50mm
Thickness	30mm
Shaft length	16mm
Solid Shaft diameter	8mm(D shape)
Resolution	50;60;100;200;250;256;300;360;400;450;500;512;600;
		700;720;800;900;1000;1024;1200;2000;2048;2500;5000
	8192;10000；11520；16384；20000；23040
Output phase	Phase A+,B+,Z+ A- B- Z-
Supply voltage	DC5V ; DC8-30V
Outlettype	Cable out from side
		Cable out from back
		Socket out from back
Output mode	NPN&PNP
		Voltage output
		Push-pull output
		Difference output(TTL,HTL,RS422)
Environmental temperature	Operating temperature: -20~+90° (Non icing)
		Storage temperature: -25~+100° (Non icing)
Environmental humanity	Operating and storage: 35~85%RH (non-condensing)
Protection grade	IP50 ; IP65
Cable length	1M (cable length could be added appropriately by
		require, but it need payment individually)
Consumption current	100mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
starting torque	less than 5X10-3 N.m
Intertia moment	less than 3x 10-6kg.m2
Shaft load	Radial 40N; Axial 20N
Top REV	5000RPM ;IP65≤3000r rpm
Environmental temperature	Operating:-20 ～+90°；storage:-25 ～+100°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	Dia cast aluminium
GND	not connect to encoder
Cable length	1000mm(cable with shielding)
Certification	CE
package	Carton box
Net weight	About 190g (with package)

Product packaging

Product Usage

About Factory

ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical、mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment 、Water conservancy equipment、Electrical equipment、Textile machinery、Carpentrymachinery、Injection machinery、Vulcanizateequipment 、Medical device、CNC machine、Metallurgical machine、Printing machinery、testing machine、Elevator、Servo motor、Packing machine, etc. , and has won trust and high reputation from clients . "HengXiang" brand encoder, has ISO9001：2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement、Creating Social value、serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .

Customers' Feedback

FAQ

Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.
Q: Do you have some videos of your products?
A: Yes, you could visit our YOUTUBE page for encoder videos.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
Q: Where can I download the encoder catalogue or datasheet?
A: You could visit our official website or email us directly to the latest files.
Q: What parameters are requested before ordering an encoder?
A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal,power supply voltage, etc.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
