WSN49 maintenance-free off-axis Bearing-less Magnetic Encoder Hollow Shaft highest motor speed 18000 rpm

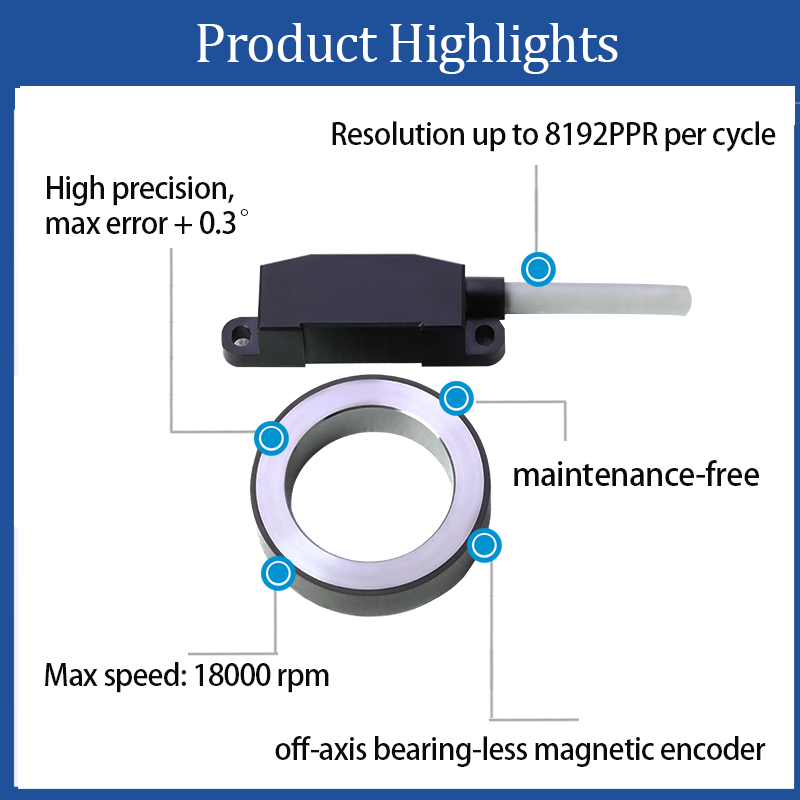

Key Features of the HENGXIANG WSN49 Incremental Magnetic Encoder:

1. Bearing-Less Hollow Shaft Design

• Maintenance-Free: No mechanical wear due to non-contact magnetic sensing.

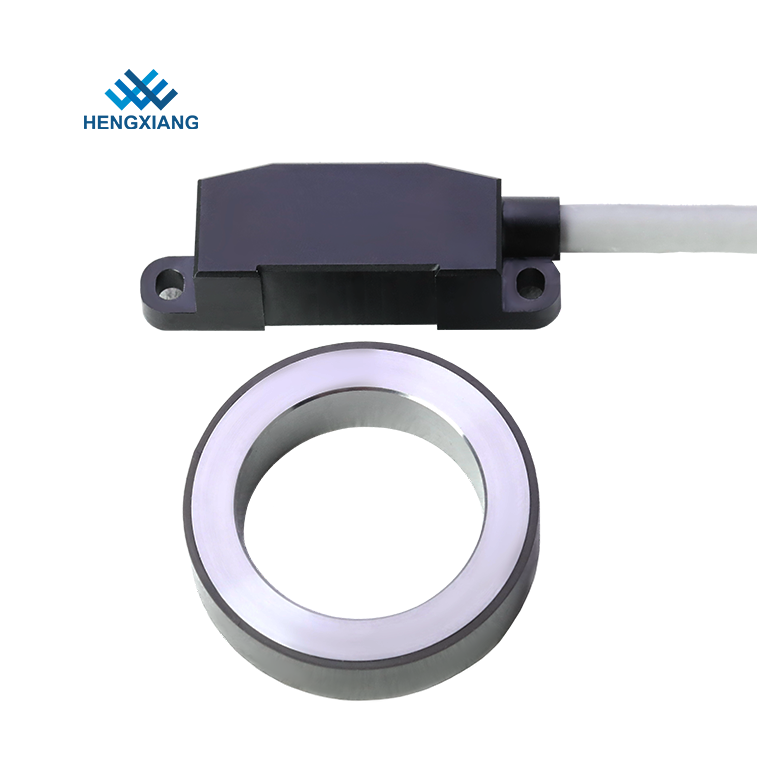

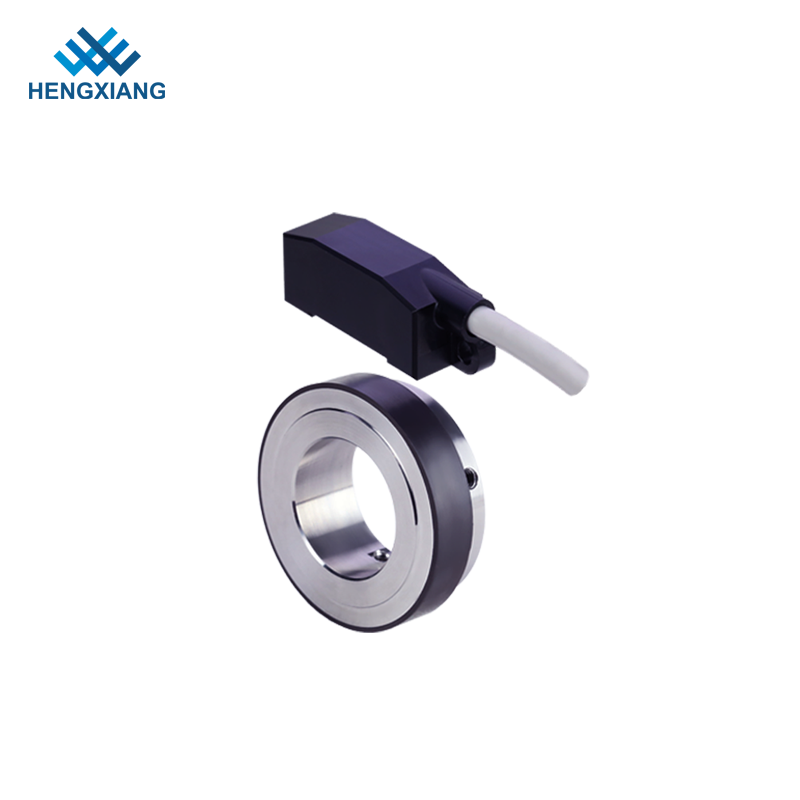

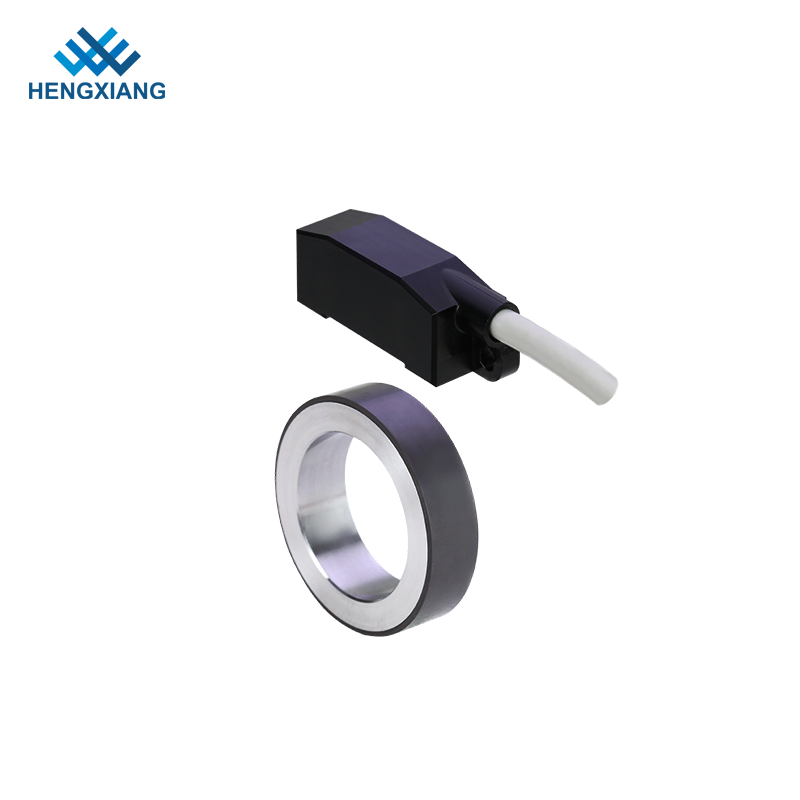

• Easy Installation: Quick, space-saving setup with included magnetic rotor.




2. High Precision & Resolution

• Accuracy: ±0.3° maximum error.

• Resolution: Up to 8192 pulses per revolution (PPR) for fine motion control.




3. Robust Performance

• High-Speed Operation: Supports up to 18,000 RPM.

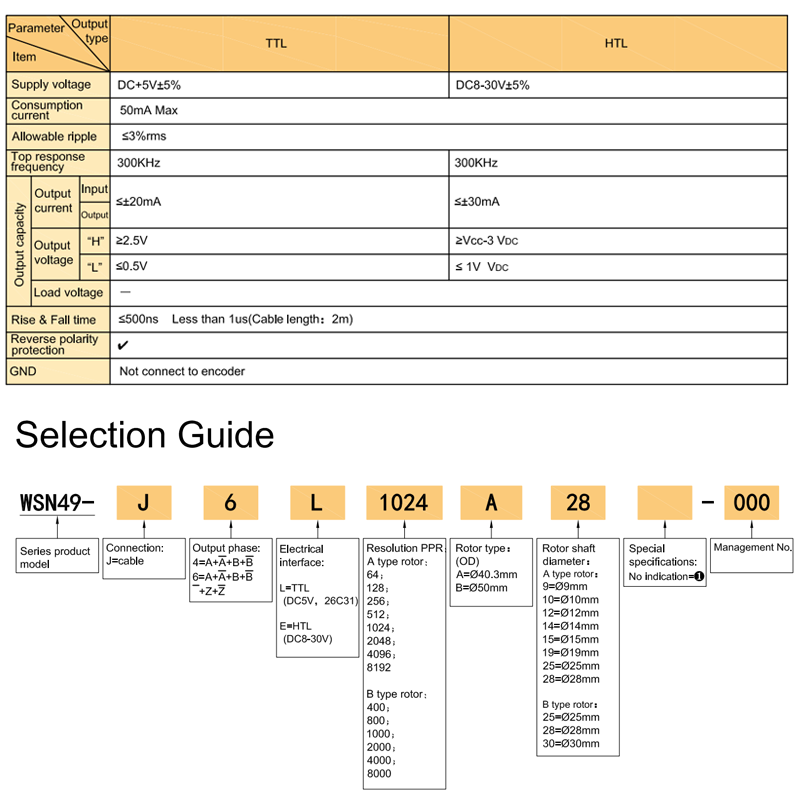

• Dual Output Options: TTL (DC5V) or HTL (DC8-30V) for compatibility with diverse systems.

• Fast Signal Response: Rise/fall time ≤500ns (TTL) and ≤1µs (HTL).




4. Durability & Environmental Resistance

• IP67 Protection: Resists dust, water, and harsh industrial environments.

• Shock & Pollution Resistant: Ideal for demanding applications like textiles and CNC machinery.




5. Electrical Reliability

• Reverse Polarity Protection: Prevents damage from incorrect wiring.

• Stable Outputs: TTL (≥2.5V "H") and HTL (≥Voc-3V "H") with noise-resistant differential signals.




6. Flexible Configuration

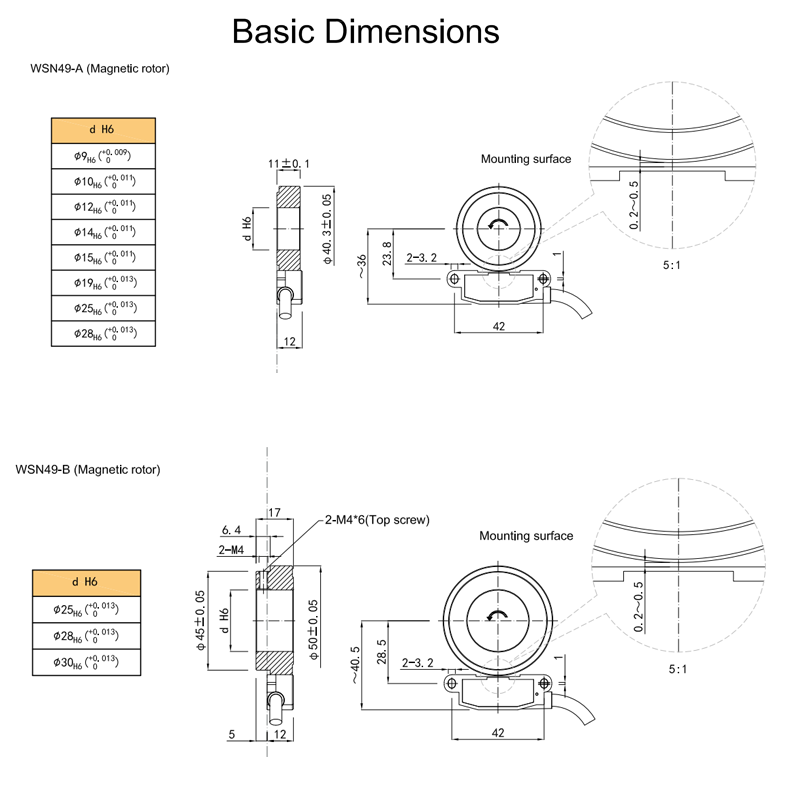

• Customizable Rotors: Multiple diameters (9mm–28mm) and resolutions (64–8192 PPR).

• Cable Options: Standard 1M length, extendable up to 100M.




7. Wide Applications

• Suited for motors, elevators, packaging, and automation where space and durability are critical.




8. Safety & Compliance

• Shielded Wiring Guidance: Recommends twisted-pair cables and proper grounding for EMI reduction.




Ideal for: Industrial automation in challenging conditions requiring high-speed, maintenance-free precision.

Note: Rotor and sensor are matched pairs; replacements must be paired.
