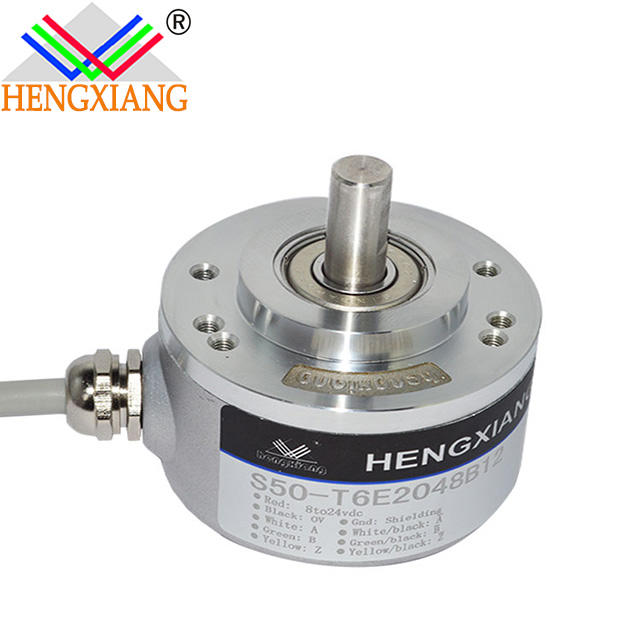

optical shaft encoder,incremental encoder ,rotary encoder S50- Series encoder 900
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
HENGXIANG
Model Number:
encoder 900
Usage:
Position Sensor
Theory:
Optical sensor
Output:
square-wave signal
Brand:
HENGXIANG
External diameter:
50mm
Shaft diameter:
8mm (D type)
Thickness:
30mm
Resolution:
up to 10000 PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC8V-30V
Output type:
wire out from back & wire out from side&socket out from back
Wire length:
1M
Weight:
about 190g(with package)

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
0.200 kg
Package Type:
Carton box for encoder 900
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated

incremental encoder ,rotary encoder S50- Series encoder 900



Our Services

24 hours  online serive,Freely contact us right now!!!



Product Description





1) Advantages                            encoder 900

1, Certification: CE & ISO9001 & SGS.

2, Feature: sturdy and durable, optional various output mode, long service life, low price, etc.

3, Application: textile industry, packing machinery,production line, etc., for automation control.





2) S50- Series Specification:                encoder 900





Items Basic parameters
External dimensionsExternal diameter: 50mm
Thickness: 30mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
 8192;10000
Output phasePhase A,B,Z or A B Z antipole
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Cable out from back
Socket out from back
Output modeCollector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About  190g (with package)
Certification CE













3)Pictures:















Machine Dimension









Packaging & Shipping



Company Information



FAQ

1) How to select an encoder

Before ordering encoders, you could clearly know which type of encoder you may need.

There are incremental encoder and absoltue encoder, after this, our sale-service department would better work for you.



2) What specifications are requeted before order an encoder?

Encoder type----------------solid shaft or hollow shaft encoder

External Diameter----------Min 12mm, MAX 100mm

Shaft Diameter---------------Min shaft 2.5mm, Max shaft 45mm

Phase & Resolution---------Min 20ppr, MAX 48000ppr

Circuit Output Mode-------you could choose NPN,PNP,Voltage, Push-pull,Line driver, etc

Power Supply Voltage------DC5V-30V



3) How to choose a right encoder by yourself ?

Exact Specification Describtion

Check The Installation Dimensions

Contact Supplier to get more details



4) How many pieces to start ?

1PCS only



5) Why choose "Hengxiang" Brand Encoder



All encoders are designed and developed by our own engineer team since year2008,

and most of the electronic component of encoders are imported from overseas market.

Never let our quality down,because quality is our culture.



6) How long is your lead time?



Short lead time----3 days for samples,7-10days for mass production



7) what is your guarantee policy?

1year warranty  and  life-long technical support





8) Your Company Official Website?



You For More information,please freely visit our official website:http://www.shhxgd.com



9) Where to download encoder datasheet or catalogue?



You could visit our website at http://www.shhxgd.com or contact online sale service to get the latest catalogue files.
