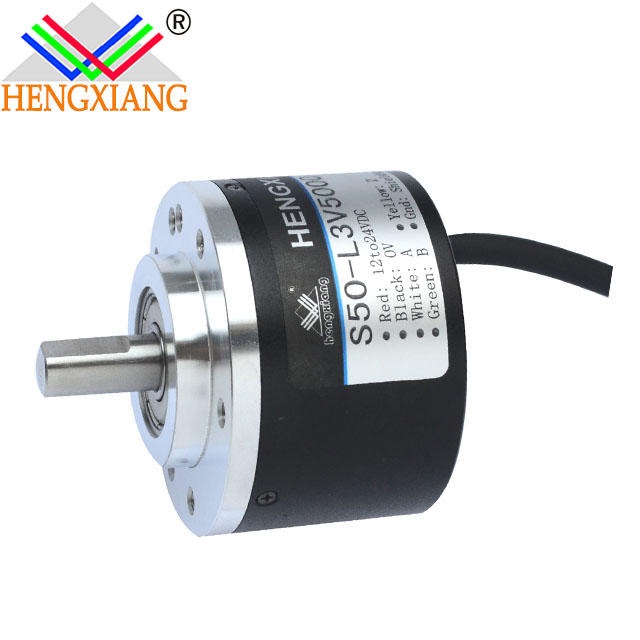

6mm shaft ecoder,incremental encoder ,rotary encoder S50- Series encoder 2048

这里可以自定义设置
6mm shaft ecoder,incremental encoder ,rotary encoder S50- Series encoder 2048
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
HENGXIANG
Model Number:
encoder 2048
Usage:
Position Sensor
Theory:
Optical sensor
Output:
square-wave signal
Brand:
HENGXIANG
External diameter:
50mm
Shaft diameter:
8mm (D type)
Thickness:
30mm
Resolution:
up to 10000 PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC8V-30V
Output type:
wire out from back & wire out from side&socket out from back
Wire length:
1M
Weight:
about 190g(with package)

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
0.200 kg
Package Type:
Carton box for encoder 2048
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated

incremental encoder ,rotary encoder S50- Series encoder 2048



Our Services

24 hours  online serive,Freely contact us right now!!!



Product Description





1) Advantages                        encoder 2048

1, Certification: CE & ISO9001 & SGS.

2, Feature: sturdy and durable, optional various output mode, long service life, low price, etc.

3, Application: textile industry, packing machinery,production line, etc., for automation control.





2) S50- Series Specification:                encoder 2048





Items Basic parameters
External dimensionsExternal diameter: 50mm
Thickness: 30mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
 8192;10000
Output phasePhase A,B,Z or A B Z antipole
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Cable out from back
Socket out from back
Output modeCollector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About  190g (with package)
Certification CE





3)Pictures:















Machine Dimension







Encoder Application



Company Information



Packaging & Shipping



FAQ







More Information

More detail information, welcome to visit our official website: http://www.shhxgd.com



optical components is perceived as optical components with high commercial value. After-sale service will be provided to help our customers during using encoder.
