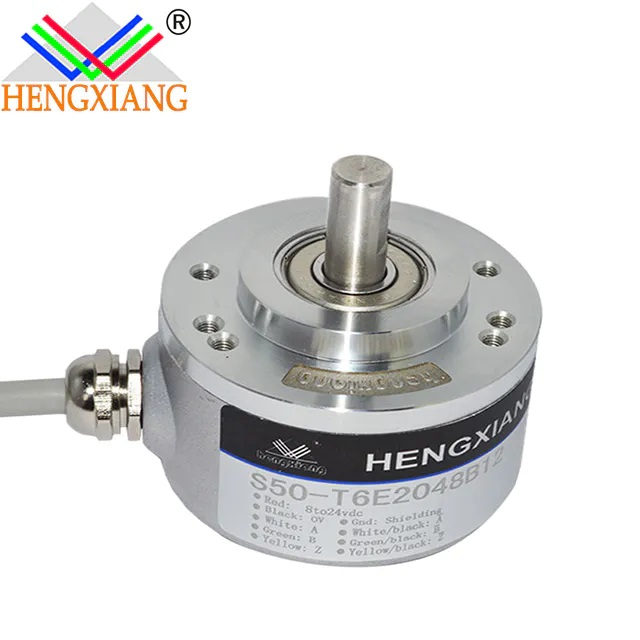

10mm optical encoder S50 high precision incremental incoder 50 pulse Line driver 24V

这里可以自定义设置
10mm optical encoder S50 high precision incremental incoder 50 pulse Line driver 24V
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
HEN GXIANG
Model Number:
S50 solid shaft encoder
Usage:
PRESSURE SENSOR
Theory:
Optical sensor
Output:
Other
Item:
S50 solid shaft encoder
External diameter:
50mm
Shaft diameter:
8mm (D type)
Thickness:
30mm
Resolution:
up to 23040PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC8-30V
Output mode:
NPN & voltage output & line driver output
Wire length:
1M
Weight:
about 190g (with package)

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
0.250 kg
Package Type:
Carton box for S50 solid shaft encoder.
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Product Description







1) Advantages



1, Certification: CE & ISO9001 & SGS.

2, Feature: sturdy and durable, optional various output mode, long service life, low price, etc.

3, Application: textile industry, packing machinery,production line, etc., for automation control.





2) S50- Series Specification:





Items S50 Shaft encoder 24v 5000ppr used in textile machinery
External dimensionsExternal diameter: 50mm
Thickness: 30mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
 8192;10000;11520;16384;20000;23040
Output phasePhase A,B,Z or A B Z antipole
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Cable out from back
Socket out from back
Output modeCollector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive (26LS31)
compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1M (cable length could be added appropriately by
       require, but it need payment individually)
Shell Aluminium
packageCarton box
Net weight About  190g (with package)
Certification CE









3)Pictures:









4) Encoder details:











COMPANY









More Information

More detail information, welcome to visit our website: http://www.shhxgd.com



With rich experience in outer packing, encoder will be well protected and no damage will happen. As per outer packing for encoder, Shanghai Hengxiang Optical Electronics Co,ltd. promises to put into high cost to keep it solid enough.
