Miniature encoder type Hollow shaft encoder 2.5mm 500 pulse MEH-17-500PC square wave encoder equivalent K18

这里可以自定义设置
Miniature encoder type Hollow shaft encoder 2.5mm 500 pulse MEH-17-500PC square wave encoder equivalent K18
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
China
Brand Name:
HENGXIANG ENCODER
Model Number:
MEH-17-500PC square wave encoder equivalent K18
Usage:
Position Sensor
Theory:
Optical sensor
Output:
other
Description:
MEH-17-500PC square wave encoder equivalent K18
ITEM:
MEH-17-500PC square wave encoder equivalent K18
External diameter:
18mm
Shaft diameter:
2.5mm
Thickness:
15.3mm
Resolution:
up to 1600PPR
Protection grade:
IP50
Supply voltage:
DC5V & DC8-30V
Outlet type:
wire out from side
Wire length:
500mm
Weight:
about 20g (with package)

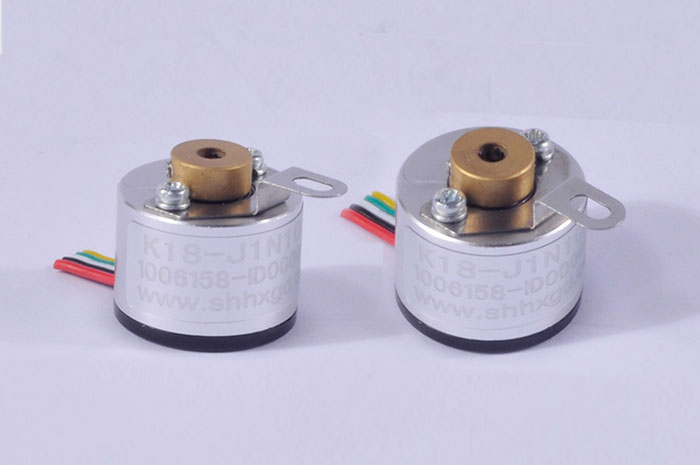

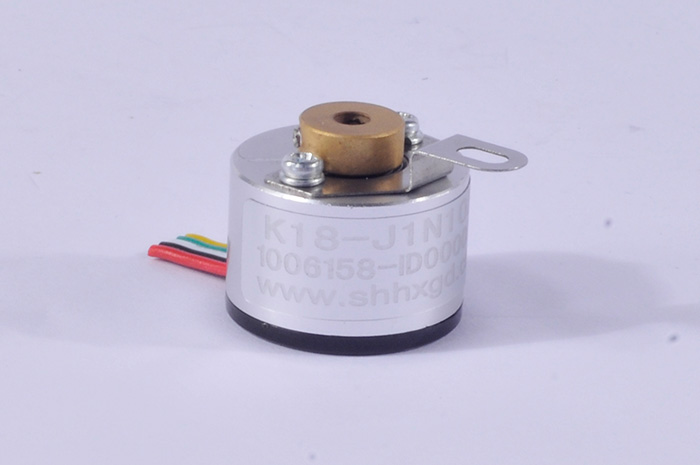

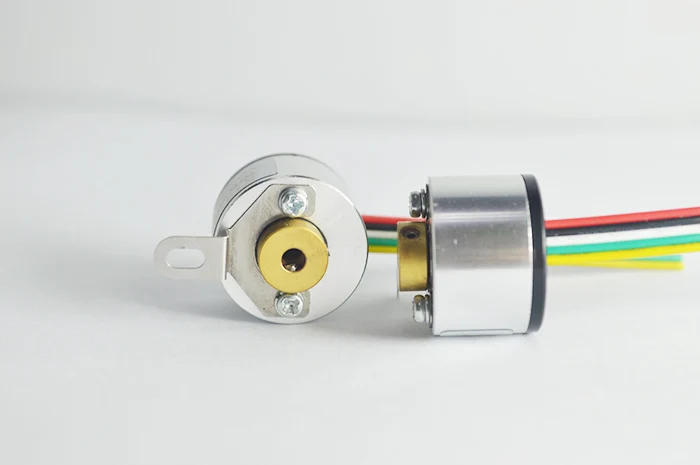

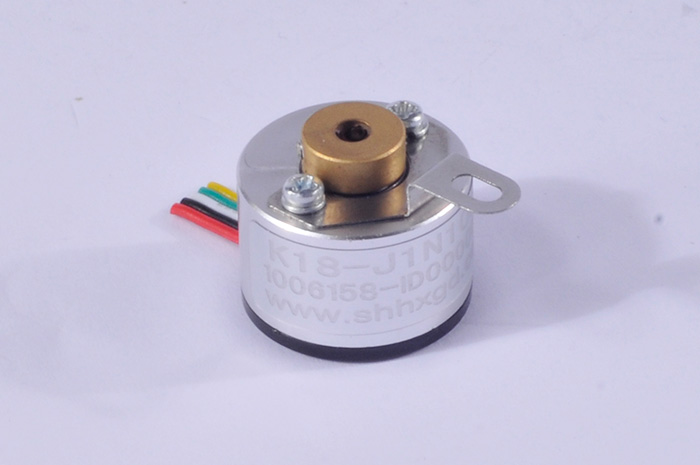

Products Description

WHY CHOOSE HENGXIANG ?.
* Quick response once received customer’s quotation query
* Professional engineer team, to solve your problems at any time
* Strictly inspection before shipment
* Various encoder models to be selected
* Short lead time
* High quality standard

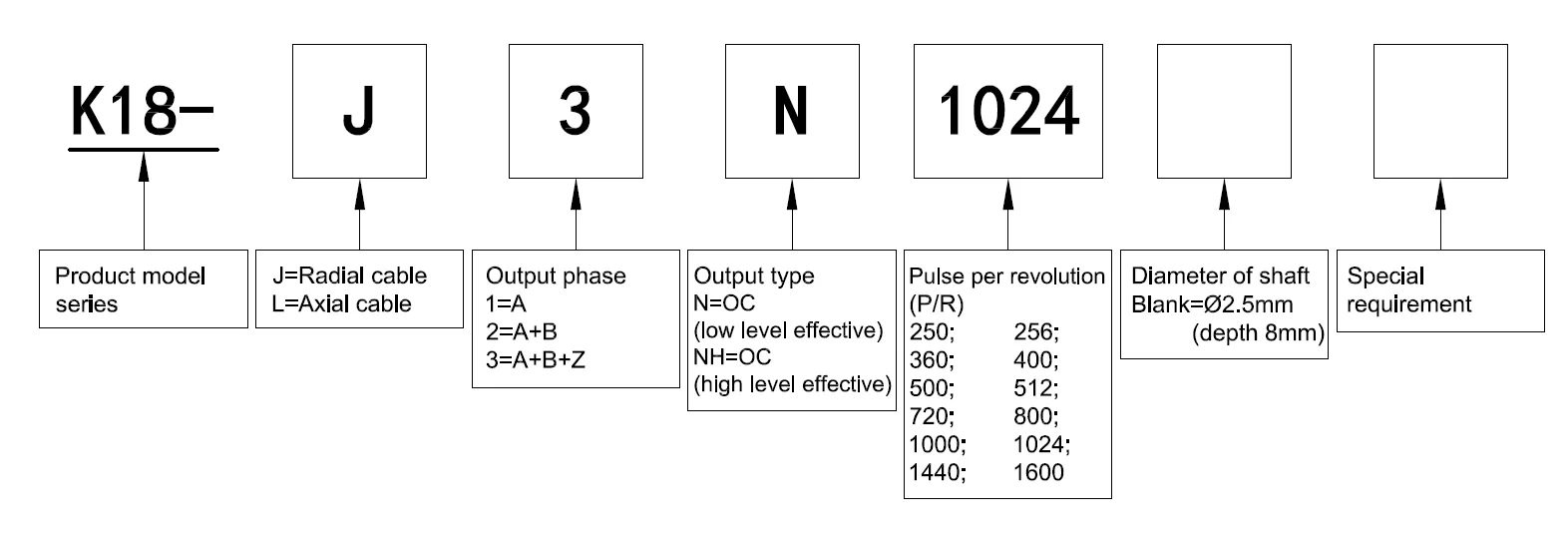

Model Selection Guide

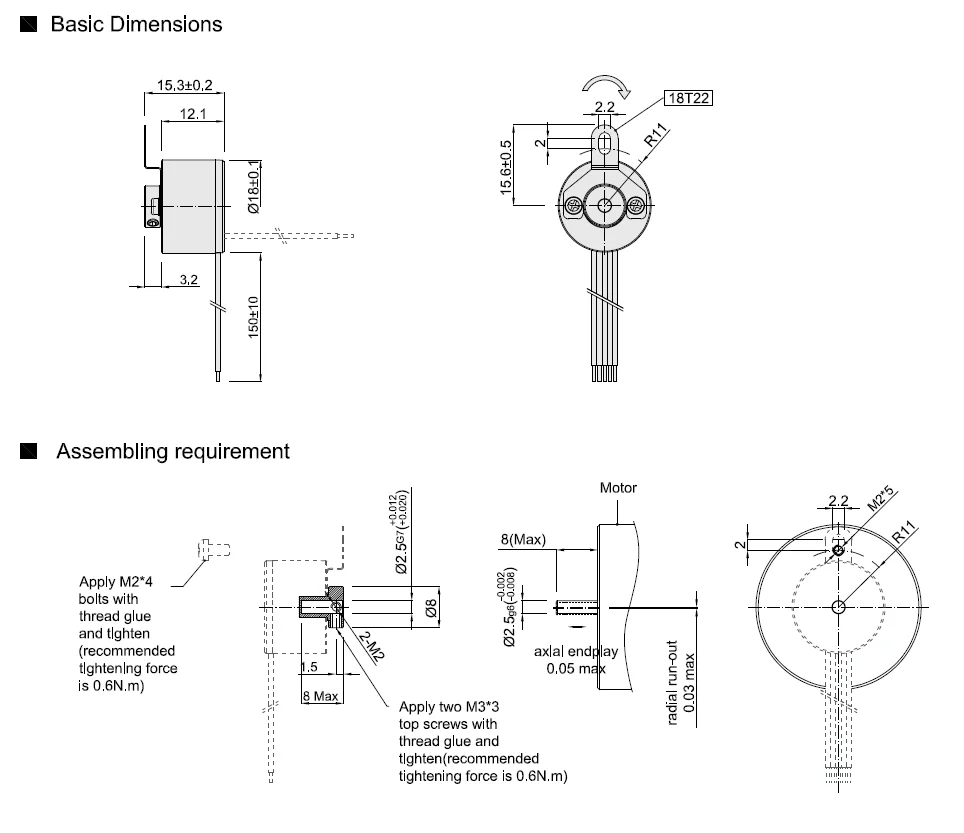

Manufacturing Dimensions
Product Paramenters
Items
Basic parameters
Brand
HENGXIANG
Encoder type
Incremental encoder
External diameter
18mm
Thickness
15.3mm
Installation dimension
R11mm, spring plate 18T22
Hollow shaft diameter
2.5mm
Resolution
250;256;360;400;500;512;720;800;1000;1024;1440;1600
Output phase
Phase A,B,Z
Supply voltage
DC5V ; DC8-30V
Outlettype
Cable out from side
Cable out from back
Output mode
Collector open circuit output(NPN &PNP)
Protection grade
IP50
Cable length
1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current
50mA MAX
Top response frenquency
100KHZ
Rise/ Fall time
100nsec Max
starting torque
less than 5x 10-4 N.m
Intertia moment
less than 0.3x 10-6kg.m2
Shaft load
Radial 2N; Axial 2N
Top REV
3000r rpm
Environmental temperature
Operating:-10 ~+70°;storage:-15 ~+75°
Enviromental humidity
Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)
Amplitude 0.75mm,10-50Hz,1 hours for three axis individually
Sock(endure)
49m/s2 ,three times for X,Y,Z direction individually
Shaft Material
Stainless steel
Shell Material
aluminium alloy
Cable length
150mm
Certification
CE
package
Carton box
Net weight
About 20g (with package)
Product packaging
Product Usage
