HENGXIANG K38 resolver encoder factory supplier external diameter38mm

这里可以自定义设置
HENGXIANG K38 resolver encoder factory supplier external diameter38mm
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
HENGXIANG
Model Number:
HENGXIANG K38 resolver encoder factory supplier external diameter38mm
Usage:
Position Sensor
Theory:
Optical sensor
Output:
square-wave signal
Brand:
HENGXIANG K38 resolver encoder factory supplier external diameter38mm
External diameter:
38mm
Shaft diameter:
8/5/6/6.35mm
Thickness:
28mm
Resolution:
up to 16384PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC8-30V
Output mode:
wire out from side & wire out from back
Wire length:
1M
Weight:
about 140g (with package)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month K38 resolver encoder factory supplier external diameter 38mm

HENGXIANG K38 resolver encoder factory supplier external diameter38mm









Kindly note: K38 series hollow shaft encoder can be widely used on elevator.

For more details, pls refer to below electrical and mechanical parameter













1) Advantages



1, Certification: CE & ISO9001 & SGS.

2, Feature: general, small volume,various output mode, long service life, low price etc.

3, Application: textile industry, packing machinery, production line, etc., for automation control.



2) K38- Series Specification



Items   Basic parameters
External dimensions  External diameter: 38mm
  Thickness: 28mm
  Shaft diameter: 5mm/6mm/8mm/6.35mm
Resolution   50;60;66;100;200;250;256;300;360;400;450;500;512;600;
  700;720;800;900;1000;1024;1200;2000;2048;2500;5000;8192;10000;16384
Output phase   A,B,Z,A-,B-,Z-
Supply voltage  DC5V & DC8-30V
Outlettype  Cable out from side
   Cable out from back
Output mode  NPN&PNP
  Voltage output
  Push-pull output
  Long line drive (26LS31)
  Long line drive (RT7272),RS422
Environmental temperature   Operating temperature: -20~+80° (Non icing)
  Storage temperature: -25~+85° (Non icing)
Environmental humanity   Operating and storage: 35~85%RH (non-condensing)
Protection grade  IP50 & IP65
Cable length  1M
Shell   Aluminium
package  Carton box
Net weight   About  140g (with package)
Certification   CE/ISO9001

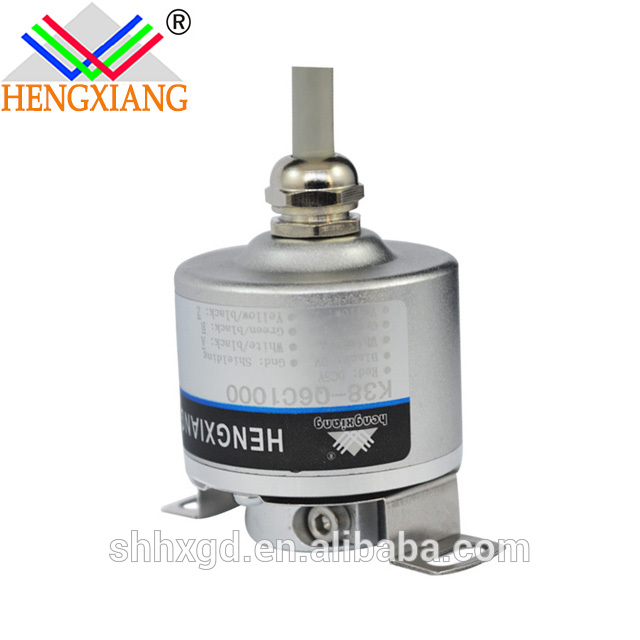

3) Pictures





4) Encoder details







FAQ

1) What specifications are needed before buying encoder?

         .External Diameter

         .Shaft Diameter

         .Phase & Revolution

         .Circuit Output Mode

         .Power Supply Voltage

2) How to choose a right encoder by yourself ?

      .Exact Specification Describtion

      .Check The Installation Dimensions

      . Contact Supplier to get more details

3) Why choose "Hengxiang" Brand Encoder

        .MOQ:1 PCS only

       .cheap price and big discount

       .short lead time----3days for samples,7-10days for mass production

       .perfect quality---we have CE,ISO,SGS certification.

                                       1year warranty   life-long technical support

4) How to order ?

            .You are welcome t o click  &
               To get the latest quotation right now!!!

5) Your Comapy Official Website?

            .You For More information,please freely visit our official website:http://www.shhxgd.cn
