K50 Incremental Hollow Shaft Encoder
1) Advantages
1, Certification: CE& ISO9001 & SGS.
2, Feature: microminiature, logical compact configuration and easy to install.
3, Application: subminiature motor, small instrument, etc., for automation control
2) K50- Series Encoder Specification
Brand | HENGXIANG |
External dimensions | External diameter: 50mm |
Thickness: 30mm | |
Shaft diameter: 6mm/8mm/10mm/12mm/14mm | |
Resolution | 50;60;100;200;250;256;300;360;400;500;512;600;700;720;800;900;1000;1024;1200;1440;2000;2048;3000;3600;4000;4096;5000;5760;8192;10000;11520;16384;20000;23040 |
Output phase | Phase A,B,Z ,A-,B-,Z- |
Supply voltage | DC5V & DC8-30V |
Outlettype | Cable out from side |
Cable out from back | |
Output mode | Collector open circuit output(NPN &PNP) |
Voltage output | |
Push-pull output | |
Line drive (26LS31) | |
Line drive (RT7272) | |
Line drive (Compatible RS422) | |
Environmental temperature | Operating temperature: -20~+80° (Non icing) |
Storage temperature: -25~+85° (Non icing) | |
Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
Protection grade | IP50 & IP65 |
Cable length | 1000mm |
Shell | Aluminium |
Package | Carton box |
Net weight | About 200g (with package) |
Certification | CE |

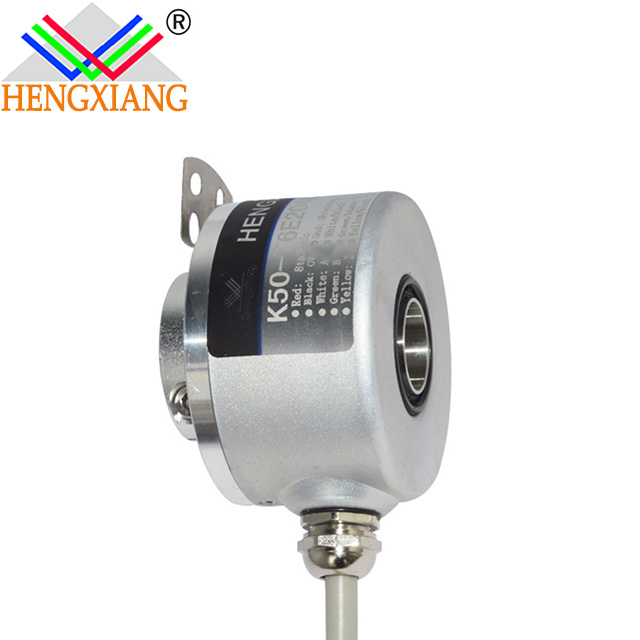

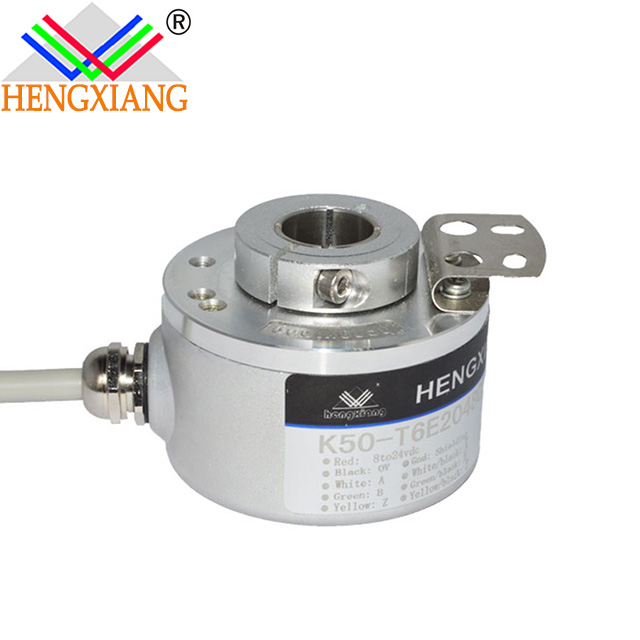

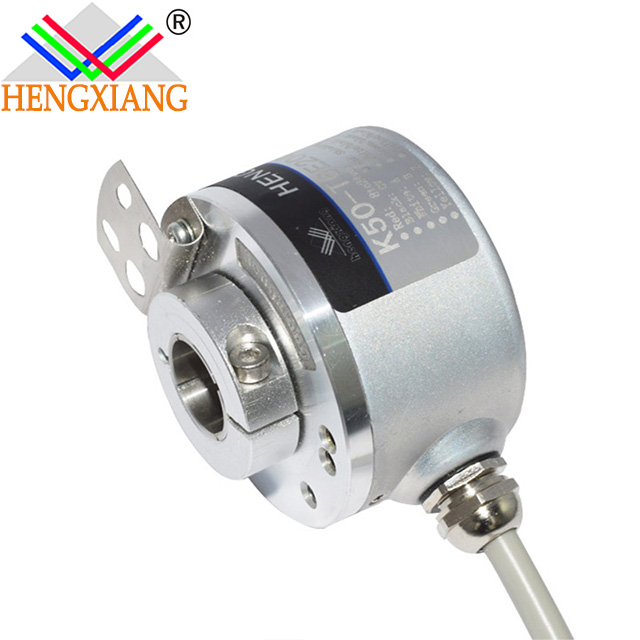

3) Pictures
4)Machine Dimension
