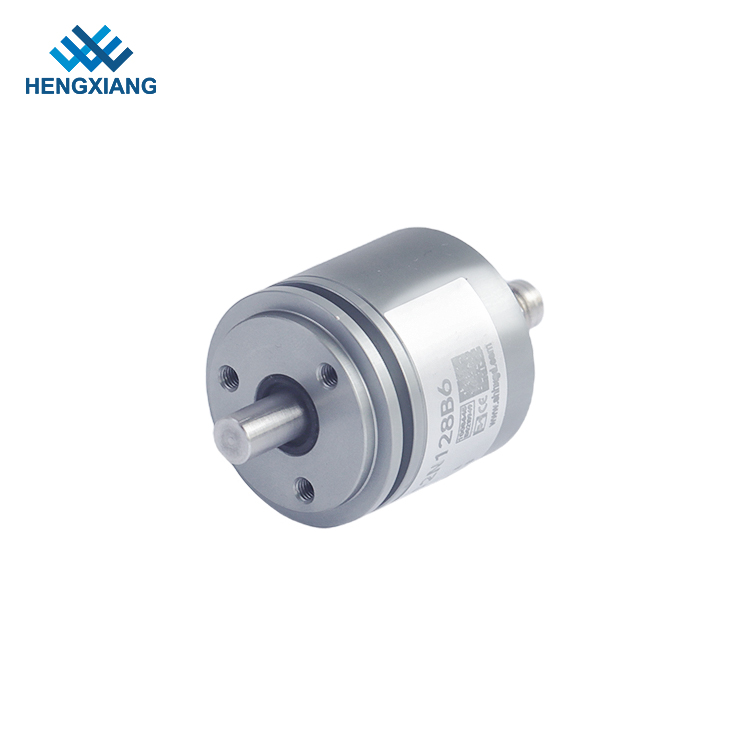

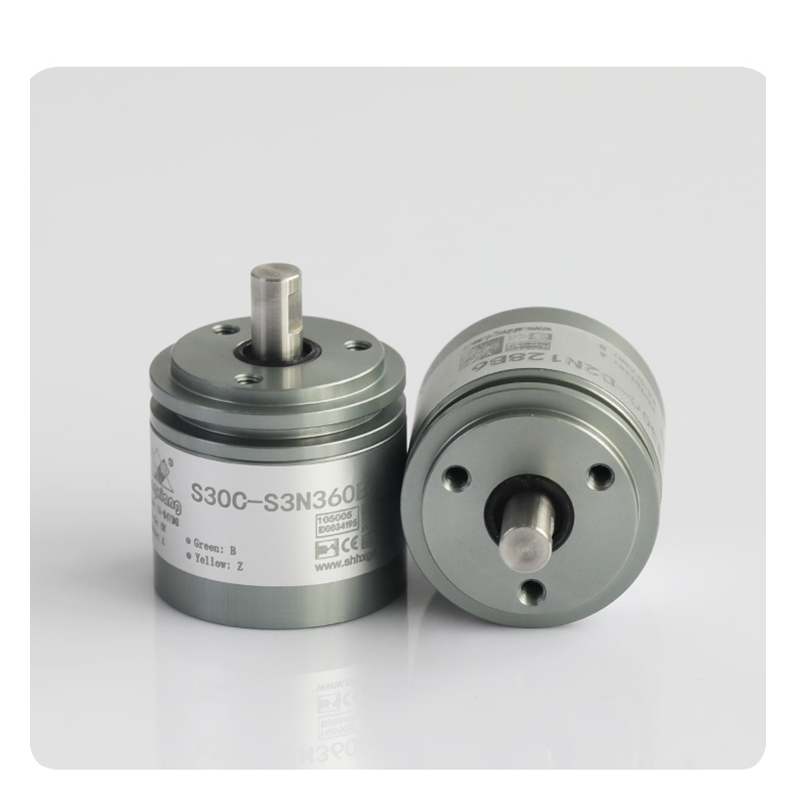

S30C Small Rotary Encoder with IP65 Protection Dustproof Waterproof High Durability

Key Features of S30C Incremental Optical Encoder

1. Compact & Lightweight Design

• Ultra-small size with aluminum alloy housing and weight of ~100g.

• Supports Ø4mm and Ø6mm shafts (stainless steel material).




2. High-Speed & Precision Performance

• Max slew speed: 6,000 RPM with response frequency up to 500kHz (HTL mode).

• Phase shift accuracy: 90°±10° (low speed), 90°±20° (high speed).




3. Robust Electrical Interfaces

• Multiple output types: OC, Voltage, Push-Pull, TTL, HTL.

• Wide supply voltage range: DC+5V±5% to DC8–30V±5%.

• Reverse polarity and short-circuit protection.




4. Industrial-Grade Durability

• IP65 protection (dustproof and water-resistant).

• Bearing life: 1.5×10⁹ revolutions (100,000 hours at 2,500 RPM).

• Shock/vibration resistance: 490m/s² shocks, 0.75mm amplitude vibrations (tested per industrial standards).




5. Wide Environmental Adaptability

• Operating temperature: -30°C to +90°C (storage: -30°C to +95°C).

• Suitable for 45–85% humidity (non-condensing).




6. Flexible Installation & Connectivity

• M8 8-pin socket or radial cable (standard 1m length).

• Twisted-pair shielded wiring for noise immunity (TTL/HTL modes).

• Compatible with spring-type and cross-type couplers (optional accessories).




7. Low Power Consumption

• ≤100mA current (OC/Voltage modes), ≤120mA (TTL mode).




8. Safety & Compliance

• Insulation strength: AC500V for 60s.

• Short-circuit tolerance: Permitted for up to 30s.




Ideal for high-speed automation, robotics, and harsh industrial environments requiring compact, reliable motion feedback.

Shanghai Hengxiang Optical Electronics Co., Ltd. is a high-tech enterprise specializing in the creation, research, production, and marketing of high-precision optical encoders. We have a mature independent research and development capability, which enables to customize the production of exclusive models based on the needs of new development technology products. We  founded in 2001 and exported products to domestic and overseas after 21 years of sedimentation. Our company mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.

We focus on being a well-known brand in the field of precision optical encoders and aim to be a leader in international precision encoders.

"Precision in Sensing for a Sci-tech Life.” "Hengxiang will adhere to the corporate principles of "Integrity, Precision & Pragmatism, Customer-oriented, Unity and Mutual-success".

FAQ:

Q: What's your major products?

A: Our company established products from optical lens and encoder disk,which provide a strong theoretical basis for encoders, after 20 years development, we exteneded our business to encoders , this is why our quality is highly assured and won positive feedback compared to other encoder factory.

Q: Are you a manufacturer or a agency?

A: We are a factory for over 23 years of manufacturing experience,welcome to visit our factory,we are located in Shanghai city, China.

Q: Can I customize an encoder if there's no similar parameters from your current catalog?

A: Yes, we can provide customized services,we also have laser printing machines to custom your own logo or part number;

If you would like to get an equivalent products for other brands,you may contact us to get an accurate price and parameters confirmation, we will reply you within one hour in working time.

Q: What is your MOQ?

A: MOQ is 1pcs for our regular encoders.

Q: How long does the lead time take?

A: Delivery takes within 1 week for samples,about 10 days for mass order for regular encoders.
