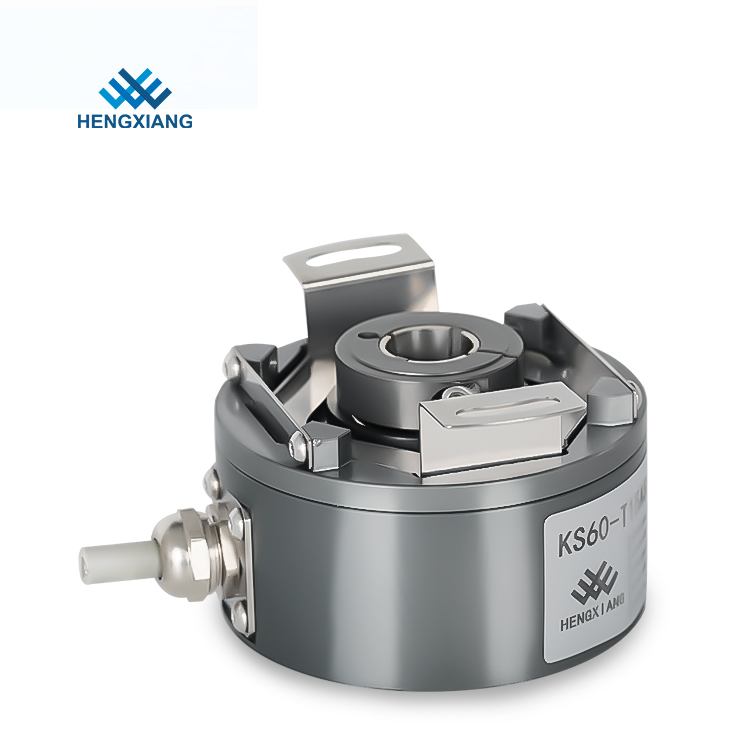

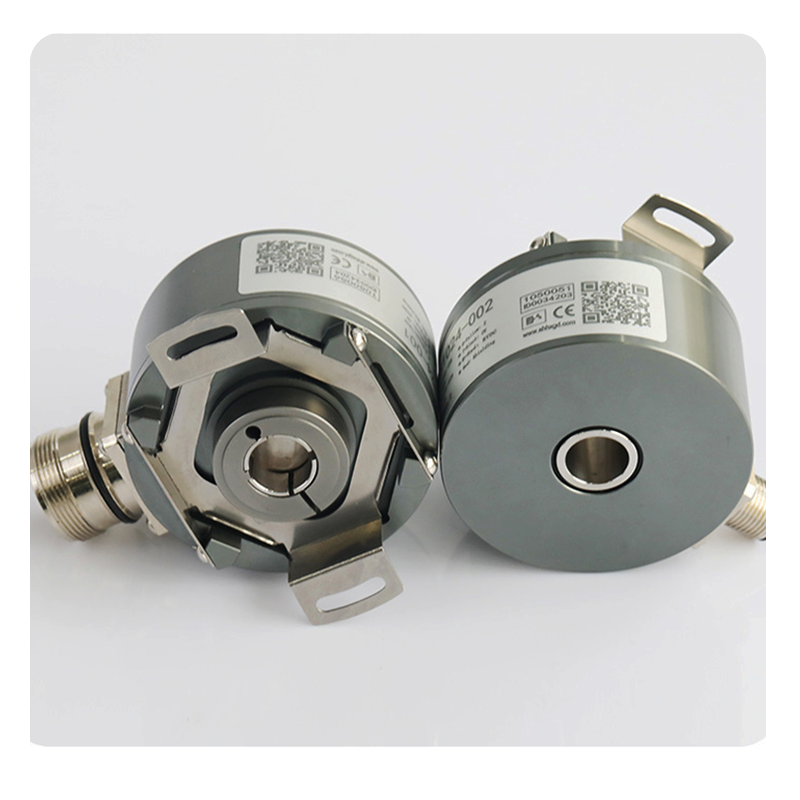

KS60
KS60 is a through hole miniaturized design, compact, sturdy and safewhich can solve the user's use in high segmentation areas.
Features:
Encoder external diameter φ42mm、thickness 33mm、
diameter of shaft up to φ10mm,
achieved robust miniaturization.
Ring locking mounting structure.
Adopt non-contact photoelectric principle.
Resolution per turn Sin/Cos period 1024.
Our advantages
1.It has two signal types,one is after differential generation and the other is before differential generation.
2. Die-cast aluminum alloy shell, solid and durable, long service life
3.The connection type is radial socket or radial cable, suitable for all kinds of applications
4. Safty encoder type, allows reverse polarity protection and short circuit protection
5. High protection class which up to IP65
6. Supply voltage from DC5V to 8-30V
7. High temeprature and low temperature allowable
Items | Basic parameters |
Brand | HENGXIANG |
Encoder type | Incremental encoder |
External diameter | 42mm |
Thickness | 33mm |
Installation dimension | 46±0.1mm diameter |
Hollow shaft type | through hole |
Hollow Shaft diameter | 6mm; 8mm;10mm (Key slot 2) |
Bit(steps) | 1024 (Sin/Cos) |
Supply voltage | DC5V ； DC8-30V |
Signal | After differential generation Sin/Cos (DC5V; DC8-30V) |
Before differential generation Sin/Cos (DC5V) | |
Protection grade | IP65 |
Cable length | 1M (cable length could be added appropriately by |
require, but it need payment individually. Max 100m) | |
Supply voltage | DC4.5V...5.5V; DC8...30V |
Maximum output frequency | ≤200kHz |
Reverse polarity protection | √ |
Short-circuit protection | √ |
Starting torque | ≤1.0 Ncm (at 20℃） |
Operating torque | ≤0.8 Ncm (at 20℃） |
Permissible movement static | ±0.3mm (radial); ±0.5mm (Axial) |
Permissible movement dynamic | ±0.05mm (radial); ±0.1mm (Axial) |
Max. angular acceleration | ≤500,000 rad/s² |
Operating speed | 6000min^-1 |
Bearing lifetime | 3.6x10^9 |
Shell material | Aluminum alloy |
Shaft material | Stainless steel |
Cable length | 1000mm |
Certification | CE |
package | Carton box |
Net weight | About 200g (with package) |
Certification | CE |
package | Carton box |
Net weight | About 150g (with package) |
Applications:
Here are some specific applications of KS42 incremental encoders
l Drawworks drums, mud pumps, catwalks, hoists, winches & motors
l Motor and drive speed feedback
l Converting Machinery
l Material Handling
l Packaging Equipment
l Pickling Equipment
l Processing Equipment
l Elevators
l PLC’s and electronic counters musement rides
