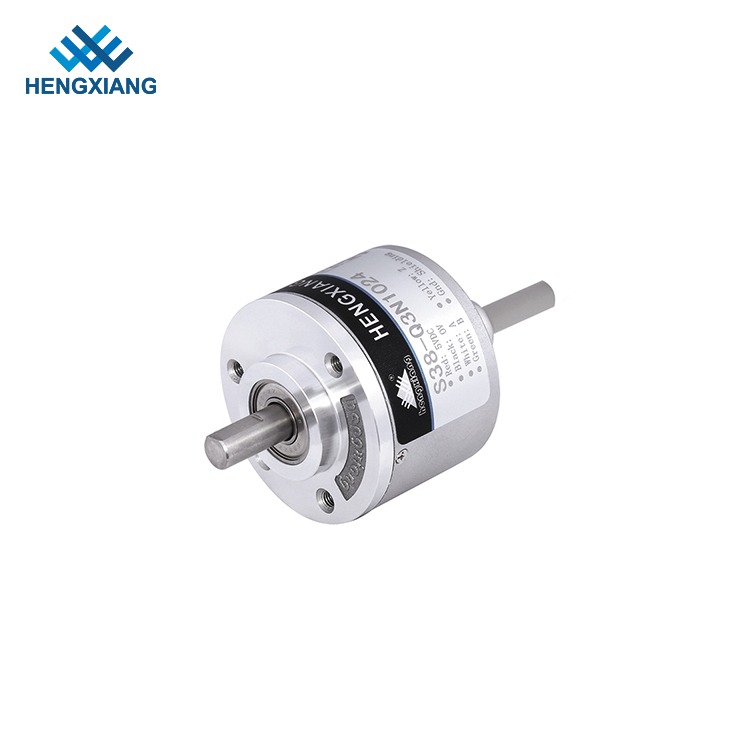

SJ38 absolute digital encoder micro rotary encoder shaft 5mm 6mm NPN output single turn absolute encoder max 12 bit position encoder sensor

这里可以自定义设置
product-HENGXIANG-img
product-HENGXIANG-img
product-HENGXIANG-img
SJ38 absolute digital encoder micro rotary encoder shaft 5mm 6mm NPN output single turn absolute encoder max 12 bit position encoder sensor
Brand
HENGXIANG
Factory Price
Negotiable
Supply Ability
50,000 Piece/Pieces per year
Month Port
SHANGHAI
Payment Terms
T/T,Cash,Western Union, Paypal,Credit Card
Min.Order Quantity
1pcs
ODM & OEM
Acceptable
Certification
ISO9001/CE
Delivery date
3-5 working days for sample order, 7-10 days for mass order
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享

Add success, do you want to check your shopping cart?

该产品后台详情无内容
这里可以自定义设置

PRODUCT PARAMETERS

ItemsBasic parameters
BrandHENGXIANG
Encoder typeAbsolute encoder
External diameter38mm
Thickness28mm
Installation dimension30mm diameter
Shaft length 13mm
Solid Shaft diameter6mm D shape
Bit(steps)

5 bit(32ppr); 6 bit(64ppr); 7 bit(128ppr); 8 bit(180ppr); 8 bit(256ppr);9 bit(360ppr); 9 bit(512ppr);10 bit(720ppr);10bit (1024ppr) 11 bit(2048ppr);

Supply voltageDC5V; DC8-30V
OutlettypeRadial cable
Radial socket
Axial cable with plug
Radial cable with plug
Count directionCounterclockwise
Outside control direction
Clockwise
InterfaceNPN low level effective

NPN high level effetive

NPN low level effective
PNP high level effective
Protection gradeIP50; IP65
Cable length1M(cable length could be added appropriately by
Require, but it need payment individually)
Consumption current100mA MAX
Top response frenquency100KHZ
Allowable ripple≤3%rms
Load Voltage≤DC30V
Output codeGray code
Precision360/(resolution x 4)
Insulation strengthAC500V 60s
Insulation resistance10MΩ
GNDNot connect to encoder
Starting torqueLess than 4.4x 10-3N.m
Intertia momentLess than 1.5x 10-6kg.m2
Shaft loadRadial 30N; Axial 20N
Top REV3000RPM; IP65≤2000r rpm
Bearing life1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperatureOperating: -20 ~ +85°C; storage: -25 ~ +90°C
Enviromental humidityOperating and storage: 35-85%RH(noncondensing)
Vibration(endure)Amplitude 0.75mm, 10-55Hz, 2 hours for three axis individually
Sock(endure)49m/s2, 11 ms three times for X, Y, Z direction individually
Shaft MaterialStainless steel
Shell Material Dia cast aluminium
Cable length1000mm(cable with shielding)
Certification CE
packageCarton box
Net weightAbout 130g(with package)
