Hollow Shaft
22mm
18mm
4mm
360-16384ppr
Incremental encoder
IP40
TTL, NPN
No
| Quantity: | |
|---|---|

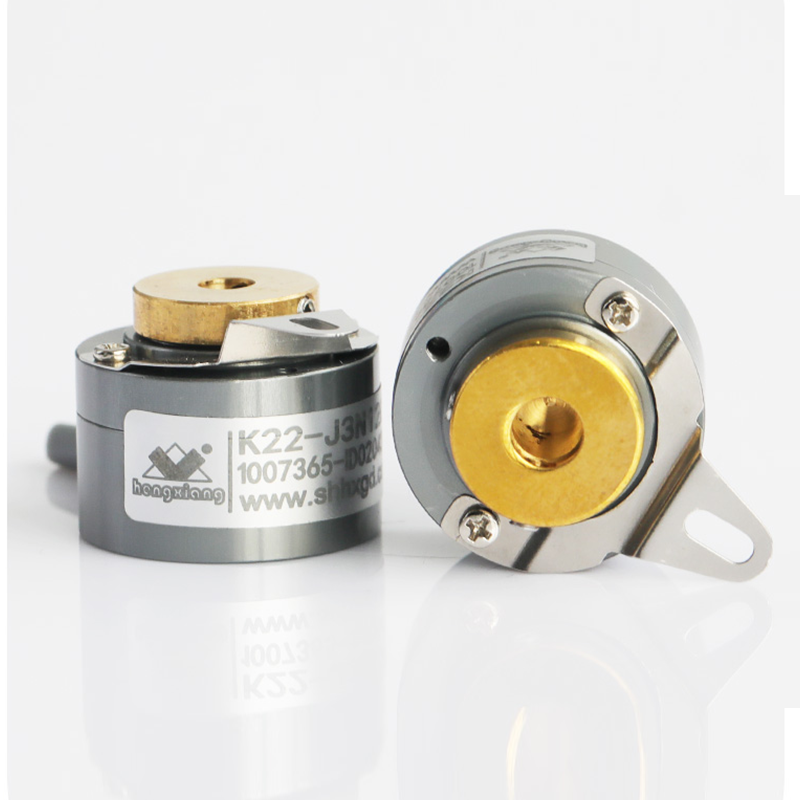

K22
| Items | Basic parameters | |
| Brand | HENGXIANG | |
| Encoder type | Incremental encoder | |
| External diameter | 22mm | |
| Thickness | 18mm | |
| Installation dimension | R12mm, spring plate 22T24 | |
| Hollow shaft type | blind hole | |
| Hollow shaft diameter | 4mm;5mm,6mm,6.5mm | |
| Resolution | 360;400;500;512；720；800；1000;1024;1440; 1600;2000;2048;2880;3200;4000;4096;5760; 6400;8000;8192;11520;12800;16000;16384 | |
| Output phase | Phase A,B,Z | |
| Supply voltage | DC5V | |
| Outlettype | Radial cable | |
| Axial cable | ||
| Output mode | NPN | |
| TTL | ||
| Protection grade | IP50 | |
| Cable length | 500mm | |
| Consumption current | 100mA MAX | |
| Top response frenquency | 200KHZ | |
| starting torque |  less than 5x 10-4 N.m | |
| Intertia moment | less than 1x 10-6kg.m2 | |
| Shaft load | Radial 2N; Axial 2N | |
| Top REV | 5000r rpm | |
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+85° | |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) | |
| Vibration(endure) | Amplitude 0.75mm,5-50Hz,2 hours for X,Y,Z direction individually | |
| Sock(endure) | 49m/s2 ,three times for X,Y,Z direction individually | |
| Shell Material | Aluminium alloy | |
| Certification | CE | |
| package | Carton box | |
| Net weight | About 35g | |
