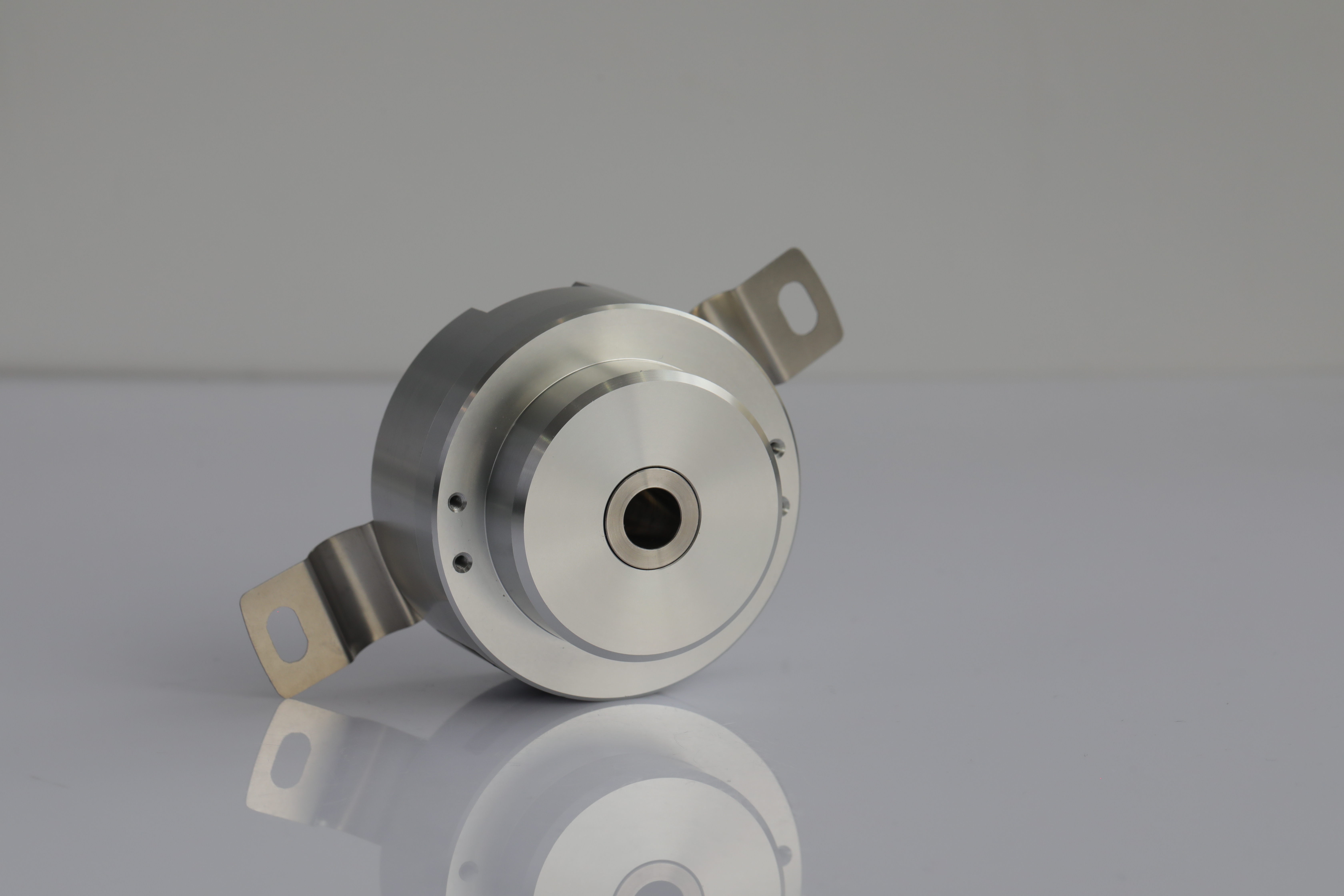

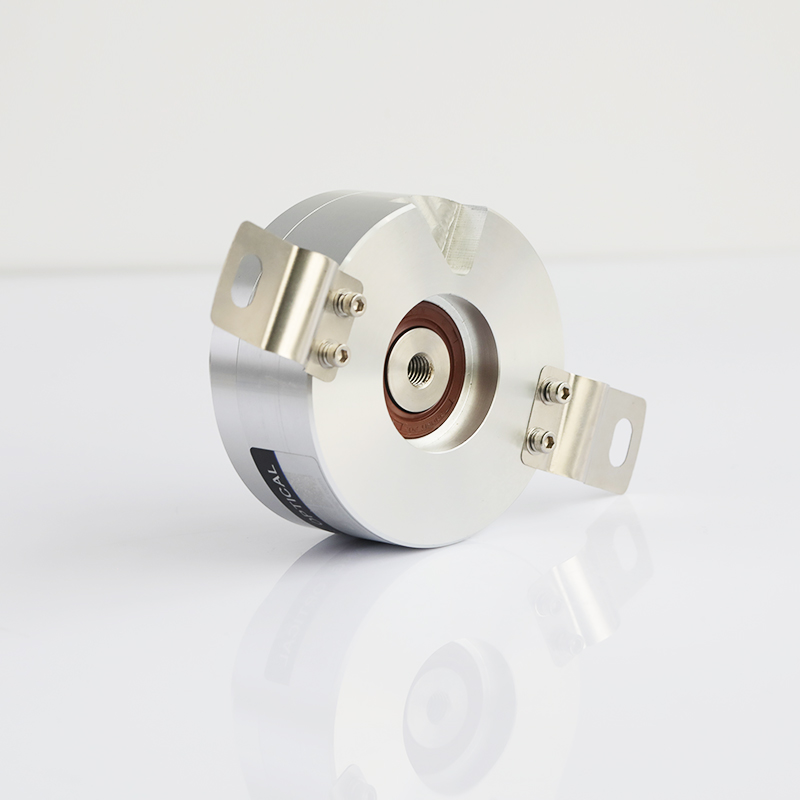

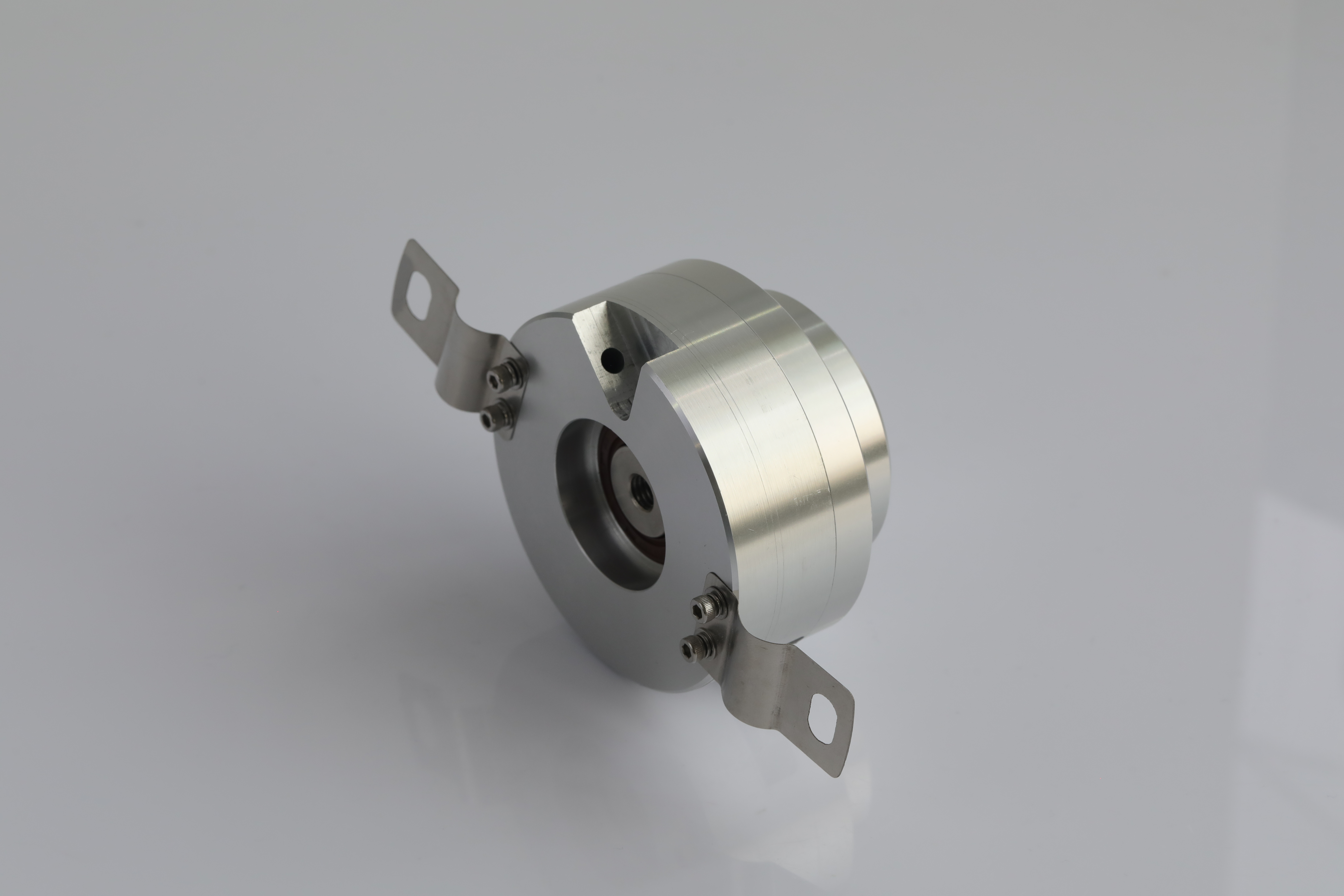

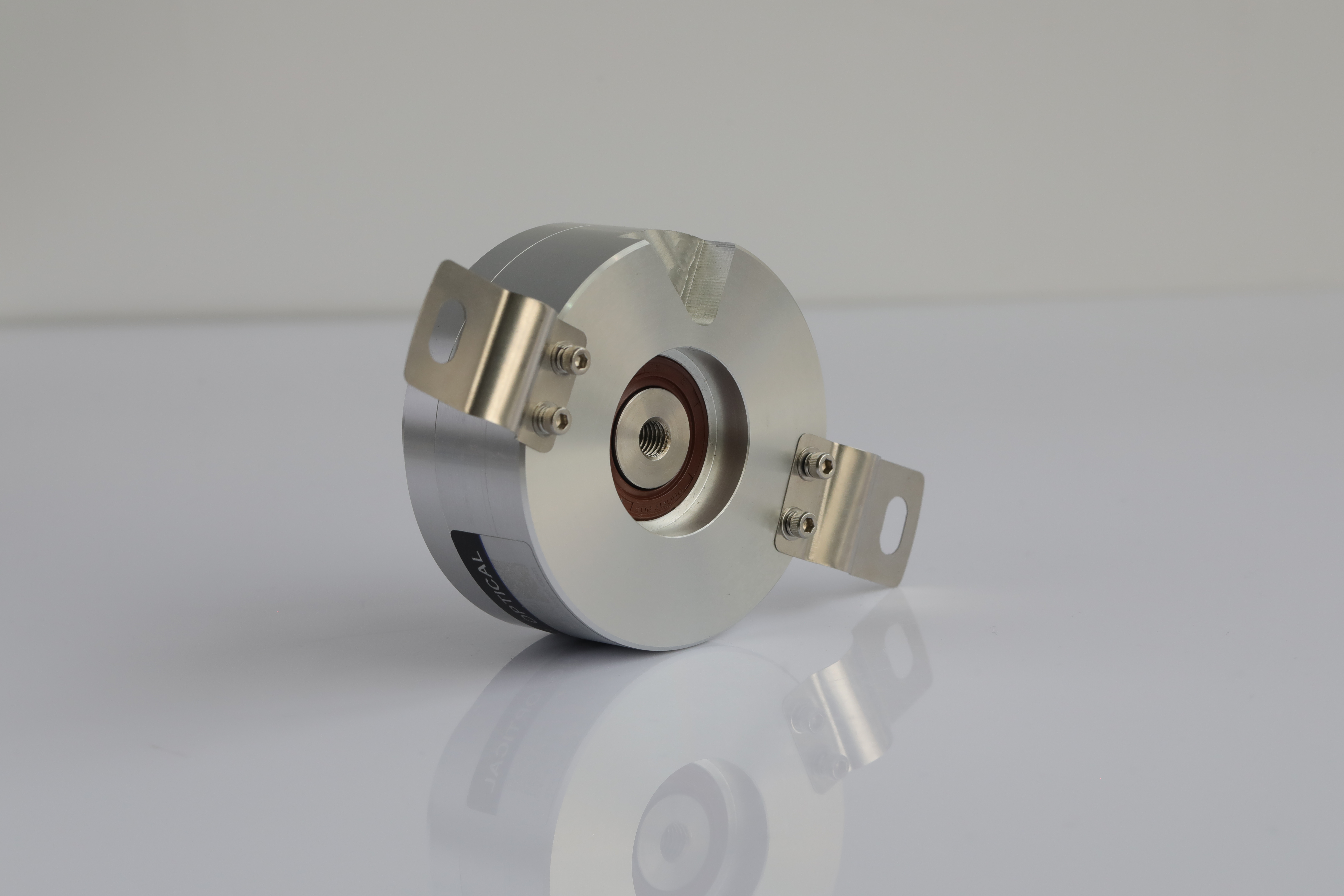

K80 incremental encoder external diameter 80mm thickness 50mm elevator encoder hollow shaft 20mm IP65 mechanical encoder

Brand：HENGXIANG
Factory Price：Negotiable
Supply Ability：50,000 Piece/Pieces per year
Payment Terms：T/T,Cash,Western Union, Paypal,Credit Card
Min.Order Quantity：1pcs
ODM & OEM：Acceptable
Certification：ISO9001&CE&25 ITEMS of IVENTION PATENTS
Delivery date：3-5 working days for sample order, 7-10 days for mass order
Shipment:FedEx/UPS/DHL/other express line
SKU:
Availability:
Quantity:
Inquiry Add to Basket

incremental encoder optical incremental encoder
Product Description

PRODUCT PARAMETERS


Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 80mm
Thickness 50mm
Installation dimension R60.5mm(spring plate 80T121)
Hollow shaft type through hole
Hollow shaft diameter 10.5mm,12mm
Resolution 1000;1024;1200;1800;2000;2048;2500;3000;3600;4096;5000;
7200;8192;10000；14400;16384；28800；32768
Output phase Phase A+, B+, Z+, A-, B-, Z-,
Supply voltage DC5V; DC8-30V
Outlettype Cable out from side
Socket out from side
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Consumption current 100mA MAX
Top response frenquency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND Not connect to encoder
Mark to Space ratio 45% to 55%
starting torque Less than 5 x 10-3 N.m
Intertia moment Less than 3x 10-6kg.m2
Shaft load Radial 50N; Axial 30N
Top REV 3000RPM; IP65≤2000r rpm
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~ +80°；storage:-25 ~ +85°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm, 5-55Hz, 2 hours for three axis individually
Sock(endure) 490m/s2, 11 ms three times for X, Y, Z direction individually
Shaft Material Stainless steel
Shell Material  Dia cast aluminium
Cable length 1000mm(cable with shielding)
Protection grade IP50; IP65
Cable length 1M(cable length could be added appropriately by Require, but it need payment individually)
Certification  CE
Package Carton box
Net weight About 600g (with package)
