Solid Shaft
65mm
56mm
8mm
9-48000ppr
Incremental encoder
IP65 IP50
TTL HTL NPN PNP Push-Pull Voltage
No
| Quantity: | |
|---|---|

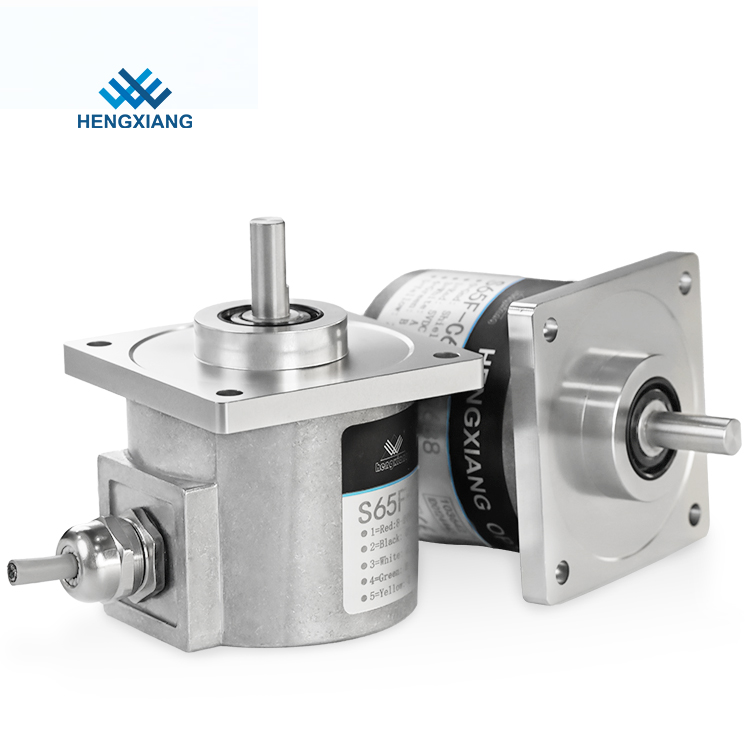

S65F
| Items | Basic parameters | |
| External dimensions | External diameter: 65mm,Thickness: 56mm | |
| Installation Size:52.5mm, Flange:65*65mm | ||
| Shaft diameter: 8mm(D type) | ||
| Resolution | 9;20;30;50;60;100;200;240;250;256;300;360;450;500;512 ;600;720;800;900;1000;1024;1200;1250;1440;1500;2000; 2048;2500;2880;3000;3600;4000;4096;5000;5760;6000; 7200;8192;9000;10000;11520;12000;14400;16384;18000; 20000;23040 | |
| Output phase | Phase A,B,Z or A- B- Z- | |
| Supply voltage | DC5V & DC8-30V | |
| Outlettype | Cable out from side with metal sleeve | |
| Socket out from side | ||
| NPN/PNP(Open Collector Output) | ||
| Voltage output | ||
| Output mode | Push-pull output | |
| line drive (26LS31) TTL | ||
| line drive(DC8-30V) HTL | ||
| Environmental temperature | Operating temperature: -20~+80° (Non icing) | |
| Storage temperature: -25~+85° (Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) | |
| Protection grade | IP50 & IP65 | |
| Cable length | 1M (cable length could be added appropriately by | |
| require, but it need payment individually) | ||
| Shell | Aluminium | |
| package | Carton box | |
| Net weight | About 370g (with package) | |
| Certification | CE | |
