50mm incremental encoder K50 Stainless Steel Hollow Shaft Elevator Encoder 23040 line

这里可以自定义设置
50mm incremental encoder K50 Stainless Steel Hollow Shaft Elevator Encoder 23040 line
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
HENGXIANG ENCODER
Model Number:
K50 incrememtal hollow shaft encoder
Usage:
Position Sensor
Theory:
Optical sensor
Output:
Other
Item:
K50 incrememtal hollow shaft encoder
External diameter:
50mm
Hollow shaft diameter:
8 /10 /12 /14 mm
Thickness:
30mm
Output Phase:
A+ A- B+ B-Z+ Z-
Resolution:
up to 23040P/R
Supply voltage:
DC5V & DC8-30V
Protection grade:
IP50&IP65
Wire length:
1M (it can be added as requirement)
Weight:
about 200g (with package)
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Product Description





K50 incrememtal hollow shaft encoder





1) Advantages



1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control



2) K50- Series Encoder Specification



BrandHENGXIANG
External dimensionsExternal diameter: 50mm
Thickness: 30mm
Shaft diameter: 6mm/8mm/10mm/12mm/14mm
Resolution 50;60;100;200;250;256;300;360;400;500;512;600;700;720;800;900;1000;1024;1200;1440;2000;2048;3000;3600;4000;4096;5000;5760;8192;10000;11520;16384;20000;23040
Output phasePhase A,B,Z ,A-,B-,Z-
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Cable out from back
Output modeCollector open circuit output(NPN &PNP)
Voltage output
Push-pull output
Line drive (26LS31)
Line drive (RT7272)
Line drive (Compatible RS422)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1000mm
Shell Aluminium
PackageCarton box
Net weight About  200g (with package)
Certification CE

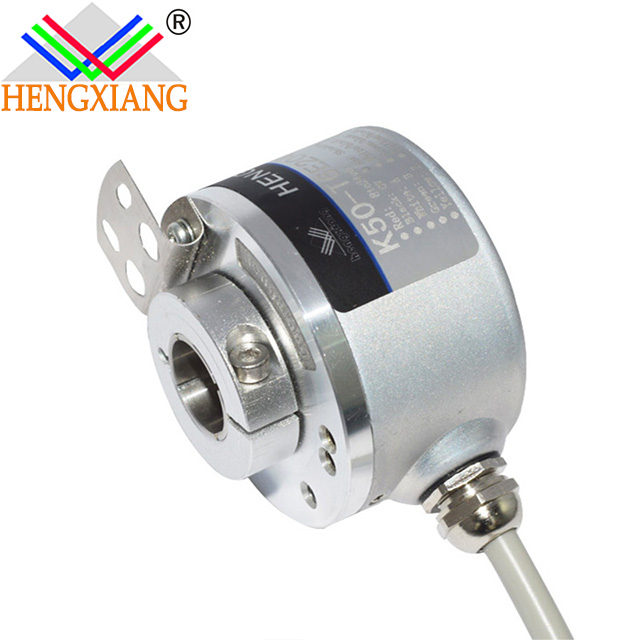

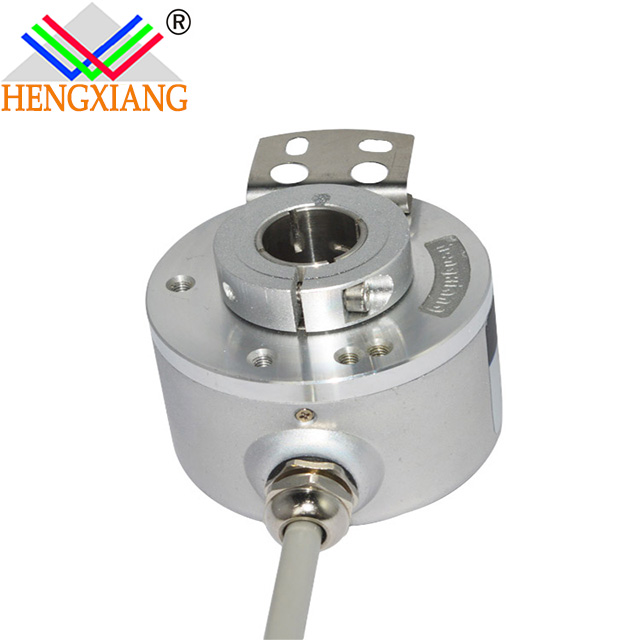

3) Pictures









4)Machine Dimension







Company Information

OUR FACTORY

Shanghai Hengxiang Optical Electronics Co.,Ltd , located on Shanghai , a international city of China , set up in 2001 , is a professional manufacturing high-tech corporation , main operation include research,development and manufacture of rotary encoder , with optical,mechanical and electronical design . Now we have finished primary pipelining of encoder manufacture , and have capability of supplying 20,000 encoders per year .

Brand of encoder , "HengXiang" , has been got certificate of ISO9001:2000 quality control verification and CE verification , while we have got 5 patents of invention and 5 patents of utility model , and got certificate of Shanghai new high-tech production translation item .

HENGXIANG
Main Market

America,Most of Europe countries,Southest of Aisa.



Our target : meeting client's requirement,creating social value,serving attentively and bringing benefits for both sides .

Certifications

CERTIFICATE

Strength proof

All encoder products passed the inspection standards included CE,ISO9001-2008 with 100% quality Assurance.

Packaging & Shipping

 Shipping

INTERNATIONAL AIR MAIL

 Payment

 Fast Delivery

Different amount of time will be required for different
FAQ

Q1.What’s your advantage? Why we choose you?

A:1)Over16 Years experience of producing encoders with the most professional techniques and team. More advantage in price

2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.

3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.

Q2.What’s the Payment?

A:T/T would be better with quick transfer and few bank fees. Also Western Union is acceptable,
Citibank and American Bank both OK,including credit card.

Q3.Are you a factory or trading company?

A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How can I get some samples?

A:We are honored to offer you samples.
Kindly check alll parameters needed, such as revolution(PPR), phase, circuit output mode, power supply voltage, motor speed(RPM)
