Z58 optical encoder Module Incremental Sensor bearingless encoder extra thin 15mm thickness for robot arms application-HENGXIANG

Overview

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: HENGXIANG ENCODER

Model Number:: Z58 optical encoder Module

Usage:: Position Sensor

Theory:: Optical sensor

Output:: Other

Item:: Z58 optical encoder Module

External diameter:: 58mm

Through hole diameter:: 14mm/19mm/20mm/24mm

Thickness:: 15mm

Installation dimension:: 53mm

Resolution:: up to 10000ppr

Supply voltage:: DC5V & DC8-30V

Protection grade:: IP40

Wire length:: 300mm

Weight:: about 85g (with package)

Packaging & Delivery

Selling Units:: Single item

Single package size:: 10X10X10 cm

Single gross weight:: 0.850 kg

Package Type:: Carton box for Z58 optical encoder Module

Lead Time :

Quantity(Pieces)	1 - 5	>5
Est. Time(days)	7	To be negotiated

Product Description

Z58 optical encoder Module Incremental Sensor bearingless encoder extra thin 15mm thickness for robot arms application

1) Advantages

1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control

2) S58- Series Encoder Specification

Items	Basic parameters
Brand	HENGXIANG
Encoder type	bearingless encoder
External diameter	58mm
Thickness	15mm
Hollow shaft type	through hole
Hollow shaft diameter	14mm;19mm;20mm;24mm;25mm
Resolution	1024/8;1024/10;1024/16;2048/6;2048/8;2048/10;2500/8;
	2500/164096/8;4096/10/;4096/16;5000/8;5000/10;
	5000/16;10000/8;10000/10;10000/16
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V ; DC8--30V
Outlet type	Cable out from side
Output mode	line drive (26LS31) TTL
Output mode	line drive(DC8-30V) HTL
Cable length	300mm
Consumption current	120mA MAX
Top response frenquency	300KHZ
GND	not connect to encoder
Slew speed	5000rpm
Environmental temperature	Operating:-20 ~+80°;storage:-25 ~+90°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Material	aluminium alloy
Certification	CE
package	Carton box
Net weight	About 85g (with package)

3) Pictures

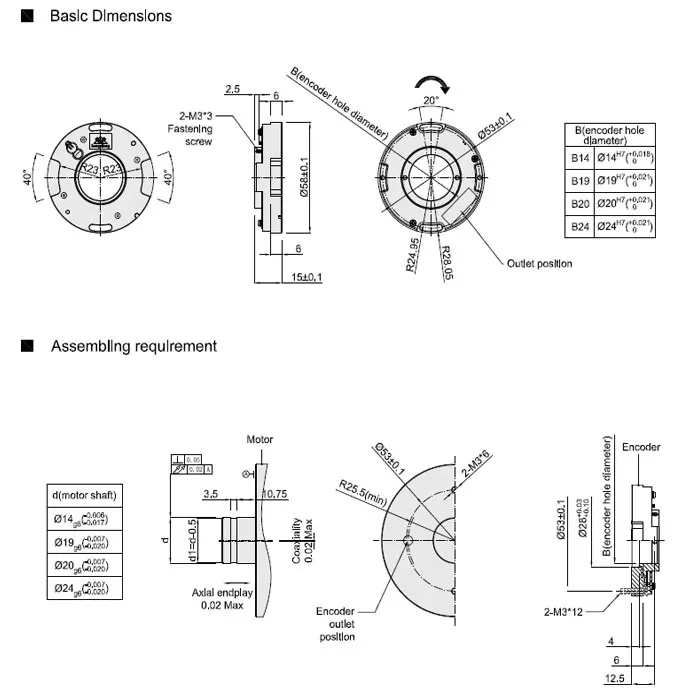

4)Machine Dimension
