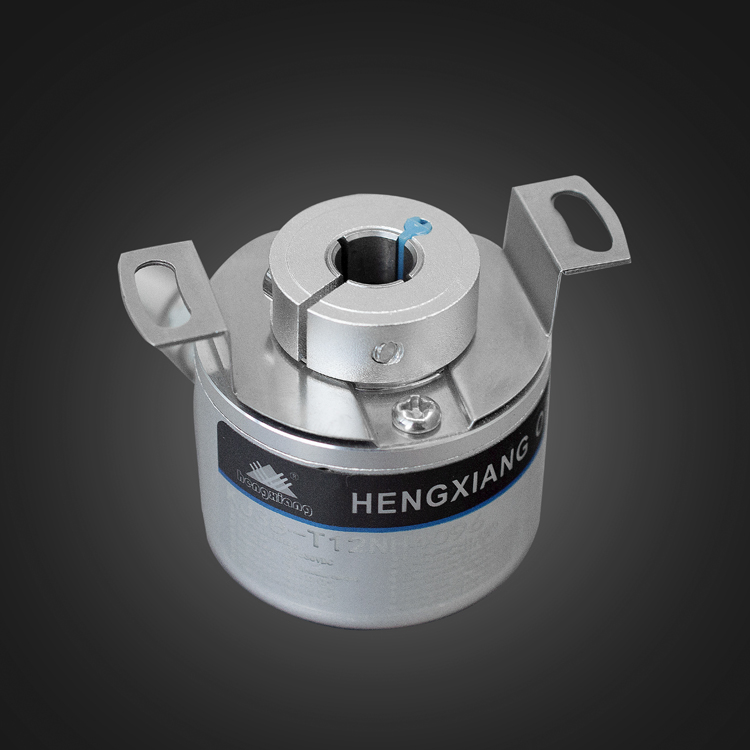

KJ38 absolute sigle turn encoder gray code NPN PNP outputRotary Encoders CNC Lathe Spindle Rotary Encoder

Share to:

KJ38 absolute sigle turn encoder gray code NPN PNP outputRotary Encoders CNC Lathe Spindle Rotary Encoder

Brand: HNGXIANG

Factory Price: Negotiate

Supply Ability: 50,000 Piece/Pieces per

Payment Terms: T/T, Cash, Western Union, Paypal, Credit Card

Min.Order Quantity: 1pcs

ODM & OEM: Available

Certification: ISO9001%CE&21 ITEMS of IVENTION PATENTS

Delivery date: 3-5 working days for sample order, 7-10 days for mass order

Quantity:



Inquiry Add to Basket

hollow shaft absolute encoder absolute encoder

Product Description

PRODUCT PARAMETERS

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Absolute encoder
External diameter	38mm
Thickness	28mm
Installation dimension	45mm diameter
Installation Depth	17mm(Max)
Hollow shaft diameter	5mm;6mm;8mm(Blind hole)
Bit(steps)	5 bit(32ppr); 6 bit(64ppr); 7 bit(128ppr); 8 bit(180ppr); 8 bit(256ppr);9 bit(360ppr); 9 bit(512ppr);10 bit(720ppr);10bit (1024ppr) 11 bit(2048ppr);
Supply voltage	DC5V; DC8-30V
Outlettype	Radial cable
	Axial socket
	Radial cable with plug Axial cable with plug
Count direction	Counterclockwise
	Outside control direction
	Clockwise
Interface	NPN low level effective
Interface	NPN high level effetive PNP high level effetive PNP low level effetive
Protection grade	IP50; IP65
Cable length	1M (cable length could be added appropriately by
Cable length	Require, but it need payment individually)
Consumption current	100mA MAX
Top response frenquency	100KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Output code	gray code
Precision	360/(resolution x 4)
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	Not connect to encoder
Starting torque	Less than 9.8x 10-3N.m
Intertia moment	Less than 6.5x 10-6kg.m2
Shaft load	Radial 30N; Axial 20N
Top REV	3000RPM; IP65≤2000r rpm
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～ +85°C；storage:-25 ～ +90°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm, 10-5Hz, 2 hours for three axis individually
Sock(endure)	49m/s2, 11 ms three times for X, Y, Z direction individually
Shaft Material	Stainless steel
Shell Material	Dia cast aluminium
Cable length	1000mm(cable with shielding)
Certification	CE
package	Carton box
Net weight	About 140g(with package)

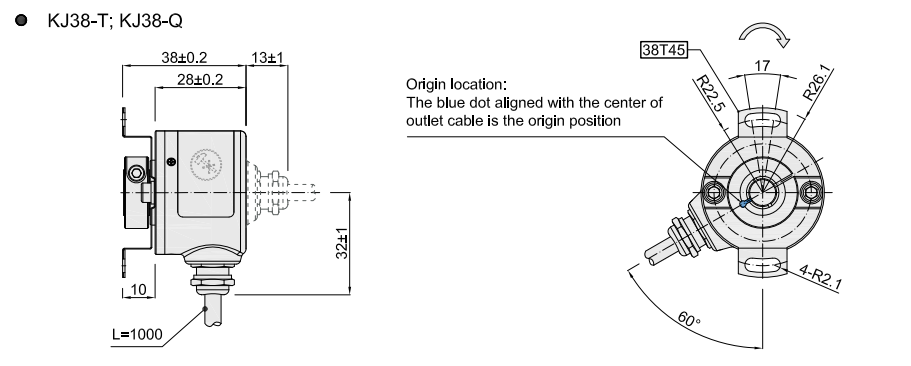

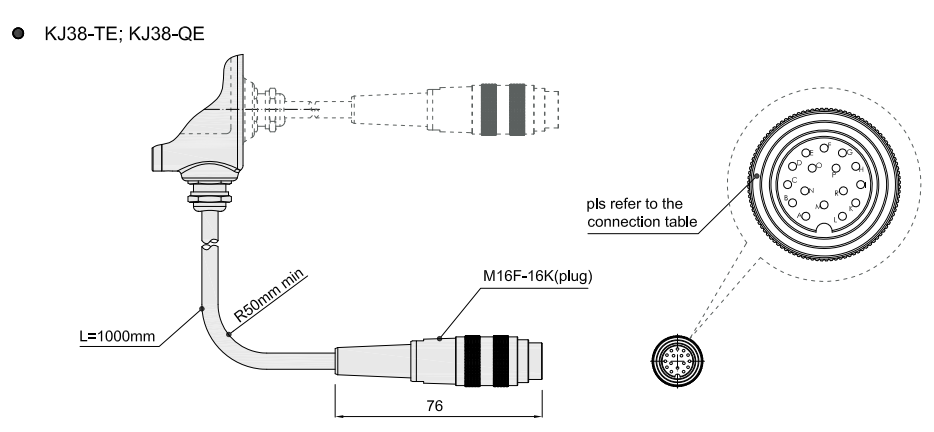

Basic Dimensions

About Absolute Encoder Basic

The advantage of absolute rotary encoders is that they provide unique position values as soon as they are switched on by scanning the position of a coded element.Absolute encoders have an encoder disc which has marks or slots on a power-transmission shaft and a stationary pickup. The disc records a unique code for each shaft position. Each position corresponds to a unique code, and even movements that occur while there is no power are recorded into accurate position values once the encoder is turned on again.According to a many range of encoder applications, it is necessary to need to measure the accuracy of the motion of a rotary shaft and to know its rotation position, speed, or even acceleration. In order to do this, a electrical part which called a shaft or rotary encoder is used to the motor/shaft assembly.
