Hollow Shaft
35mm
11mm
6mm
17-24bit
Absolute Single-turn, Absolute-Multi-turn
None
Biss-C, SSI, RS485
No
| Quantity: | |
|---|---|

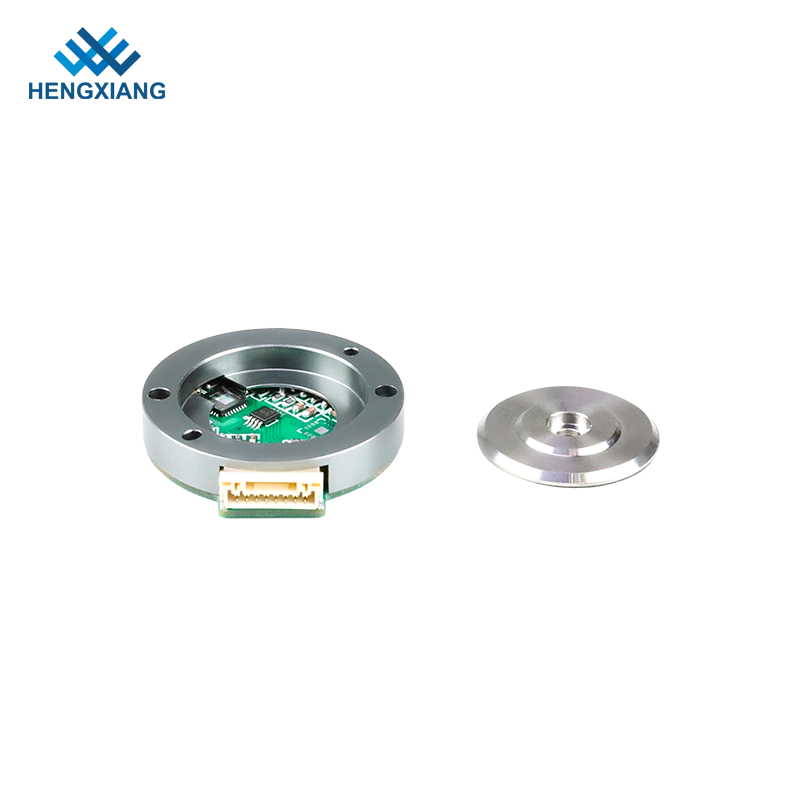

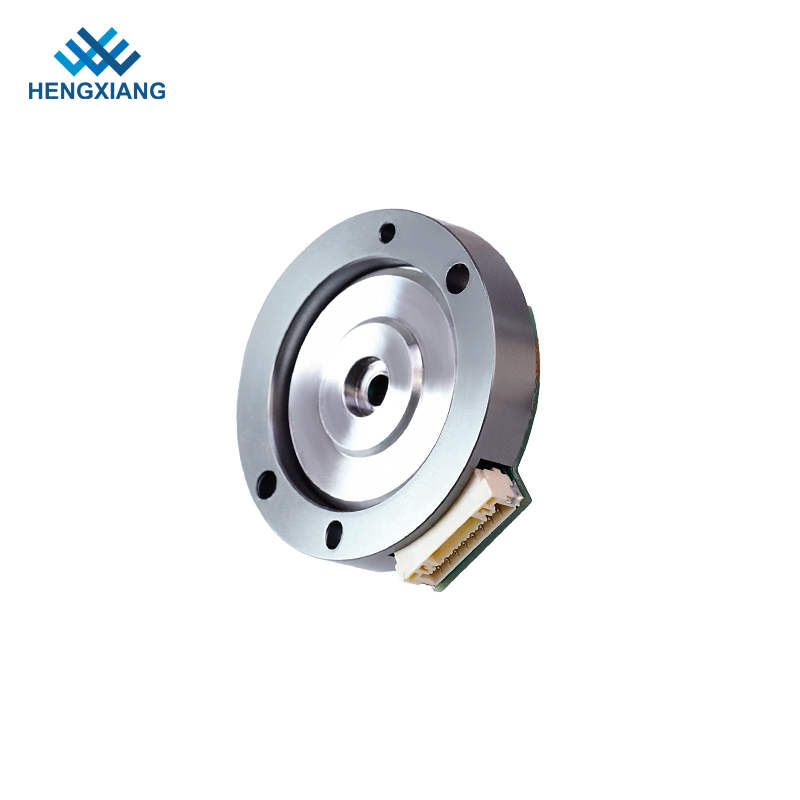

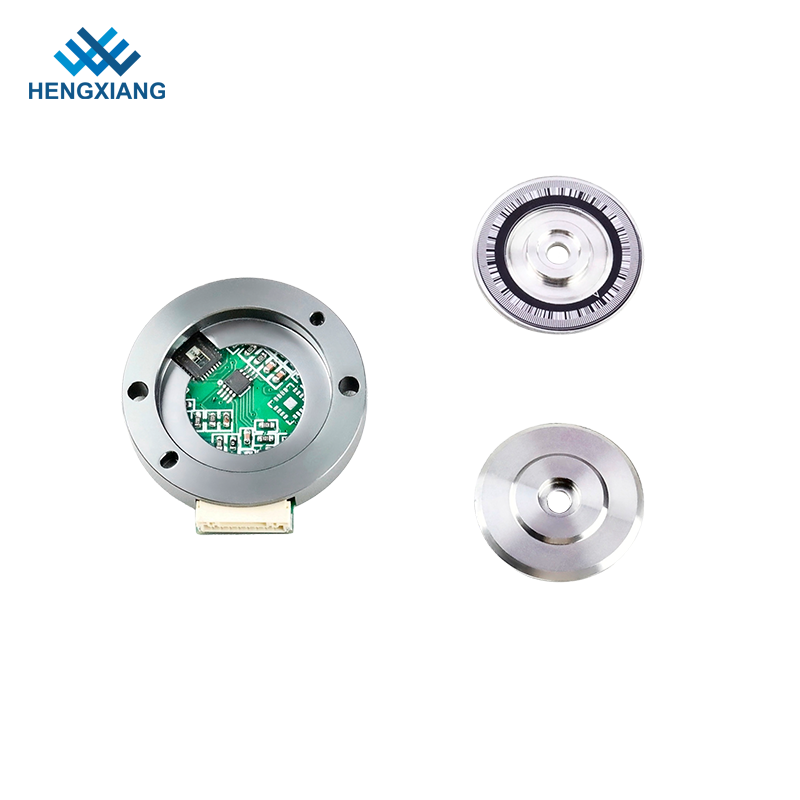

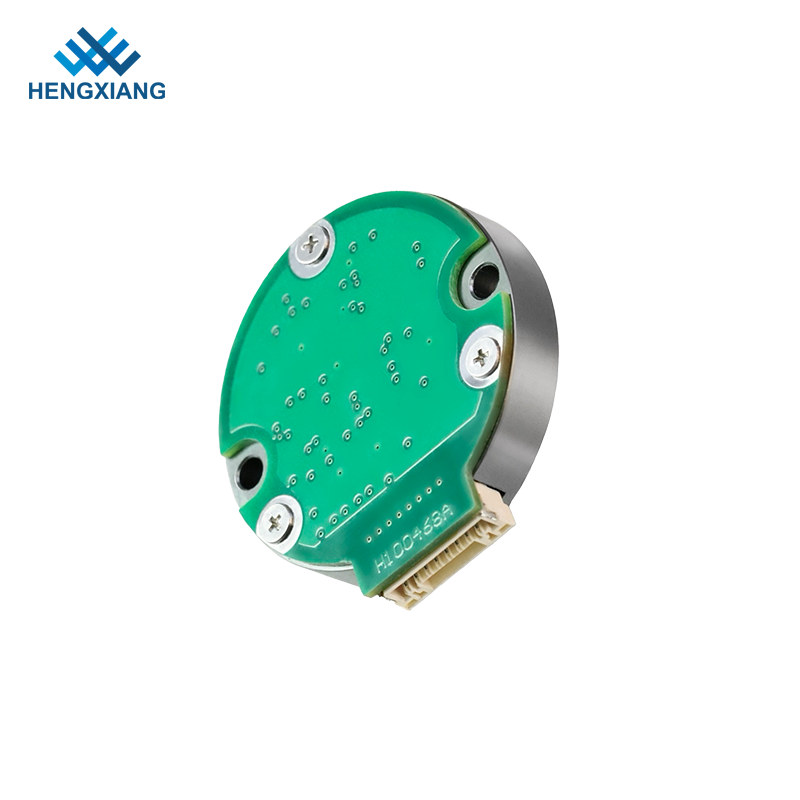

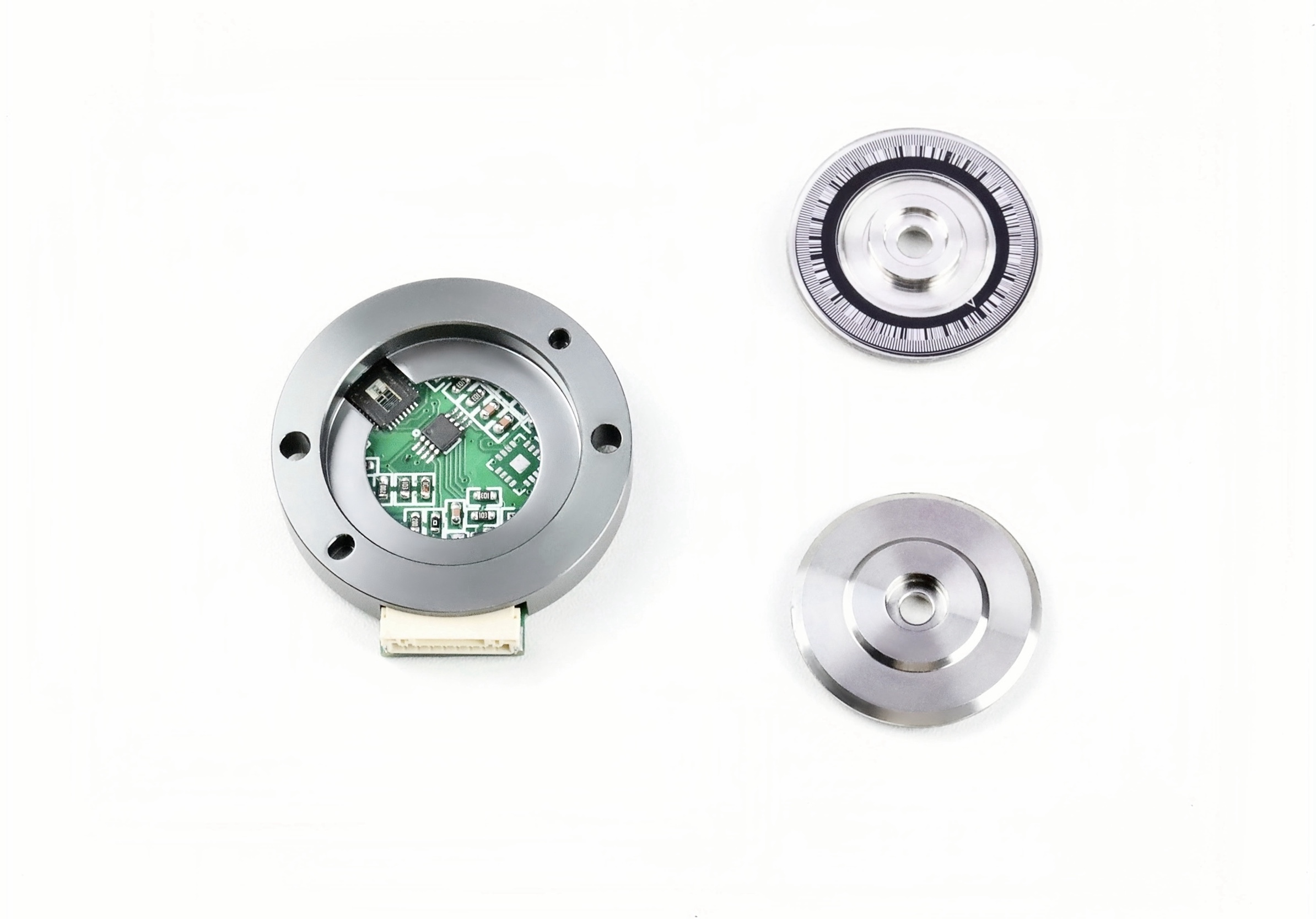

ZM35 Multi-turn Absolute Bearing-less Encoder (Blind shaft) single-turn and multi-turn encoder with extra thin structure
The ZM35 is a high-precision multi-turn absolute bearing-less photoelectric encoder with a blind shaft design, ideal for space-constrained industrial applications. Featuring an ultra-thin profile (35mm OD, 11.8mm thickness) and a 6mm shaft, it delivers 24Bits of single-turn resolution (expandable to 32Bits) and up to 24Bits of multi-turn position data, ensuring precise motion control. Its non-contact photoelectric reflection principle guarantees reliability, while interfaces like BiSS_C and SSI enable seamless integration with servo motors, robots, and other automation systems. With a sturdy compact structure, ±80" accuracy, and support for power-off multi-turn data recording, the ZM35 (weighing ~80g) operates in -40℃ to 95℃ environments. Available with cable or socket connections, it's a versatile choice for demanding industrial automation needs.

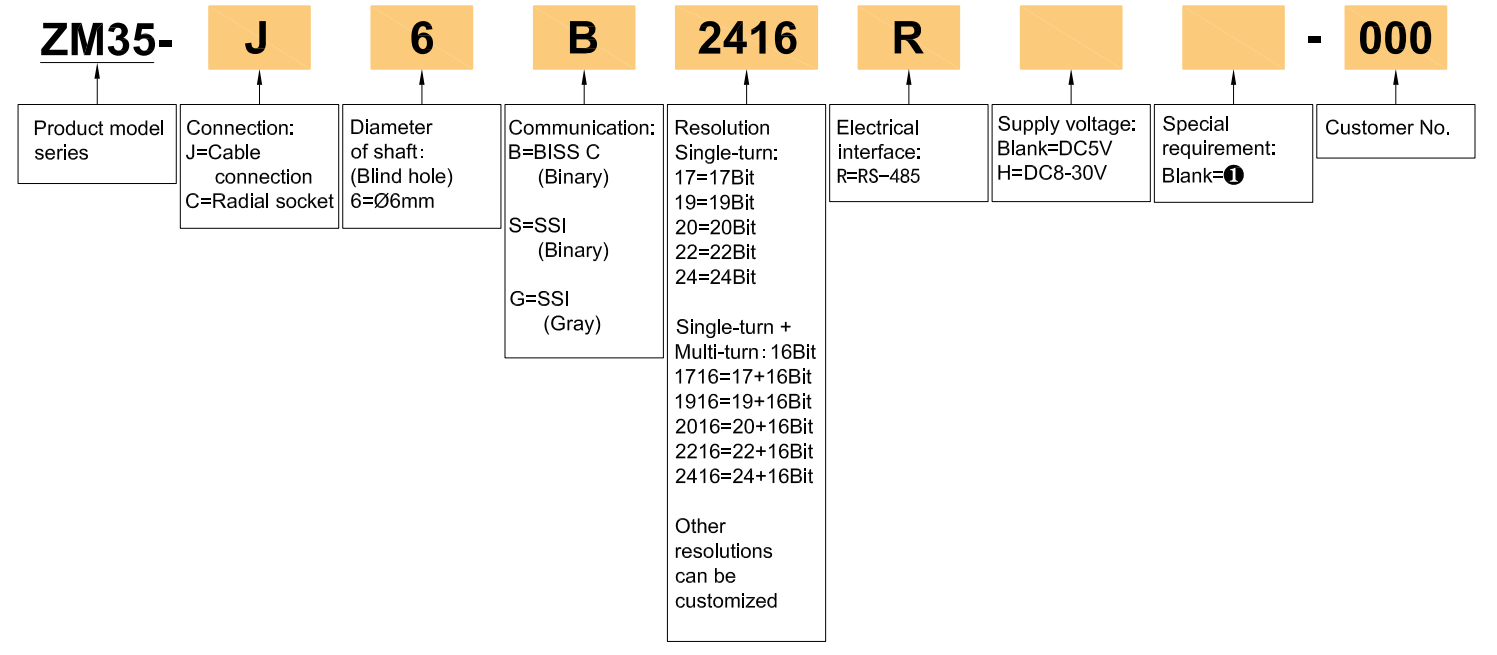

| Items | Basic parameters |
| Brand | Hengxiang |
| Encoder type | Absolute encoder |

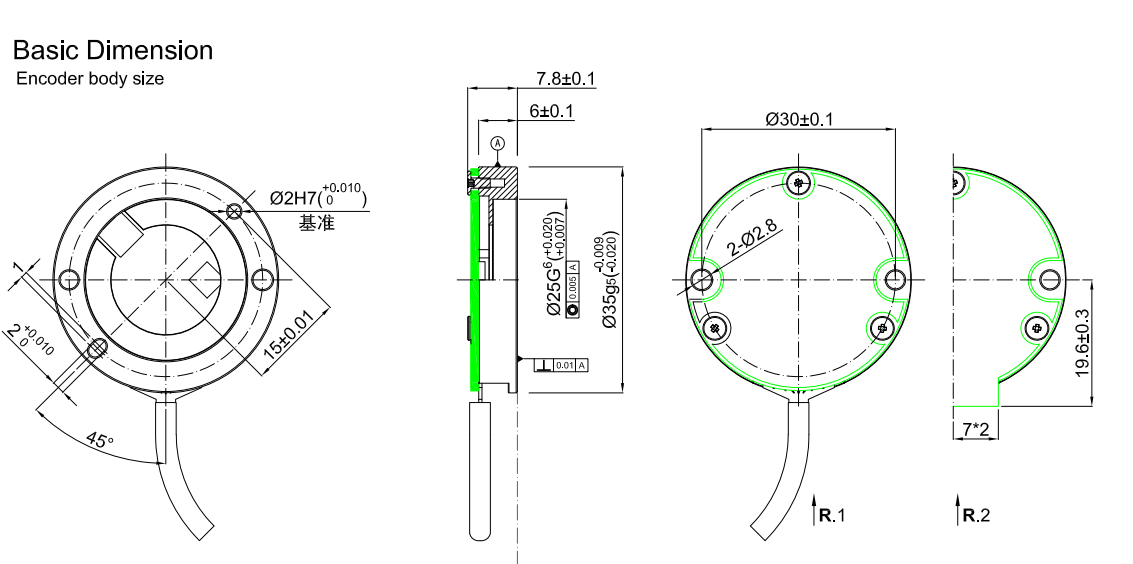

| External diameter | 35mm |
| Thickness | 11.8mm |
| Hollow shaft type | Blind hole |
| Hollow shaft diameter | 6mm |
| Resolution | 17Bit, 19Bit,20Bit, 22Bit, 24Bit, can be expanded to 32 bit |
| Communication | BISS-C; SSI |
| Electrical connection | Radial socket;Radial cable |
| Output mode | Single-turn(Binary&Gray);Multi-turn(Binary&Gray) |
| Scanning principle | Photoelectric |
| Accuracy | ±80" |
| Response speed | Normal action: 6000min |
| RMS position signal noise | ±2@18 bits/r |
| Communication clock frequency | ≤10MHz(BISS) or ≤ 5MHz(SSI) |
| Starting time | typical value: 13ms |
| Absolute position sampling period | ≤75 ns |
| Allowable speed | ≤32200 r/min (restricted by mechanical speed limit) |
| Cable length | 200mm-10000mm |
| Mechanical Connection | Ring locking to the shaft, steel connection fixed to the motor platform |
| Starting Torque | less than 9.8×10-3 N.m |
| Inertial moment | less than 6.5×10-6 kg.m2 |
| Shaft load | Radial 20N; Axial 10N |
| Slew speed | ≤3000rpm |
| Shell Material | Aluminum |
| Weight | about 80g |
| Environmental temperature | Operating: -40~+95℃; Storage: -40~+95℃ |
| Environmental humidity | Operating and storage: 35~85%RH(Noncondensing) |
| Vibration | Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually |
| Shock | 490m/s2 11ms, three times for X,Y,Z direction individually |
| Protection | none |
