Hollow photoelectric encoder motorized encoder TRD-NH1000-RZVW 1000ppr, hollow shaft encoder 8mm-HENGXIANG

Overview

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: HENGXIANG ENCODER

Model Number:: TRD-NH1000-RZVW 1000ppr

Usage:: Position Sensor

Theory:: Optical sensor

Output:: square-wave signal

Brand:: Hollow photoelectric encoder motorized encoder TRD-NH1000-RZVW 1000ppr

External diameter:: 50mm

Hollow shaft diameter:: 8 /10 /12 /14 mm

Thickness:: 30mm

Installation dimension:: 55mm

Resolution:: up to 23040P/R

Supply voltage:: DC5V & DC8-30V

Protection grade:: IP50&IP65

Wire length:: 1M (it can be added as requirement)

Weight:: about 200g (with package)

Packaging & Delivery

Selling Units:: Single item

Single package size:: 15X15X5 cm

Single gross weight:: 0.300 kg

Package Type:: Each piece was Packed by Carton box, size for caton box is 15*15*15/CM net weight is 300 grams for each piece gross weight is 1KG for each piece the more quantityt you order, you will eget more cheaper shipping cost. if you have any doubt on freight charge, please contact us directly.

Picture Example:

Lead Time :

Quantity(Pieces)	1 - 5	6 - 10	11 - 50	>50
Est. Time(days)	3	5	15	To be negotiated

Hollow photoelectric encoder motorized encoder TRD-NH1000-RZVW 1000ppr, hollow shaft encoder 8mm

Advantages

1, Certification: CE & ISO9001 & SGS.

2, Feature: logical compact configuration, various output mode and diameter of shaft, easy to install, etc.

3, Application: textile industry, packing machinery,production line, etc., for automation control.

K50- Series Specification

Items	Hollow photoelectric encoder autonics motorized encoder 14mm
External dimensions	External diameter: 50mm
	Thickness: 30mm
	Shaft diameter: 8mm/10mm/12mm/14mm
Resolution	50;60;100;200;250;256;300;360;400;450;500;512;600;
	700;720;800;900;1000;1024;1200;2000;2048;2500;5000
	8192;10000;11520;16384;20000;20340
Output phase	Phase A,B,Z,A-,B-,Z-
Supply voltage	DC5V & DC8-30V
Outlettype	Cable out from side (with metal sleeve)
	Cable out from back (for blind hole type only)
Output mode	Collector open circuit output
	Voltage output
	Push-pull output
	Difference output	Long line drive (26LS31)
		Long line drive (RT7272),RS422
Environmental temperature	Operating temperature: -20~+80° (Non icing)
	Storage temperature: -25~+85° (Non icing)
Environmental humanity	Operating and storage: 35~85%RH (non- condensing)
Protection grade	IP50
Cable length	1M (cable length could be added appropriately by
	require, but it need payment individually)
Shell	Aluminium
package	Carton box
Net weight	About 200g (with package)
Certification	CE

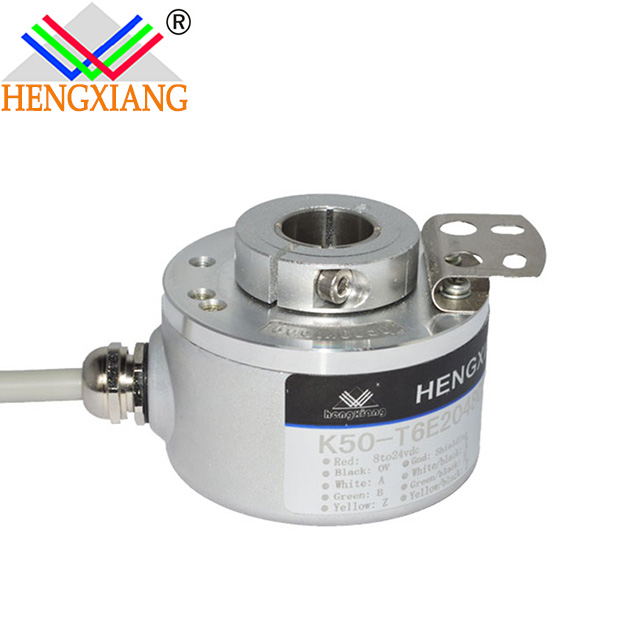

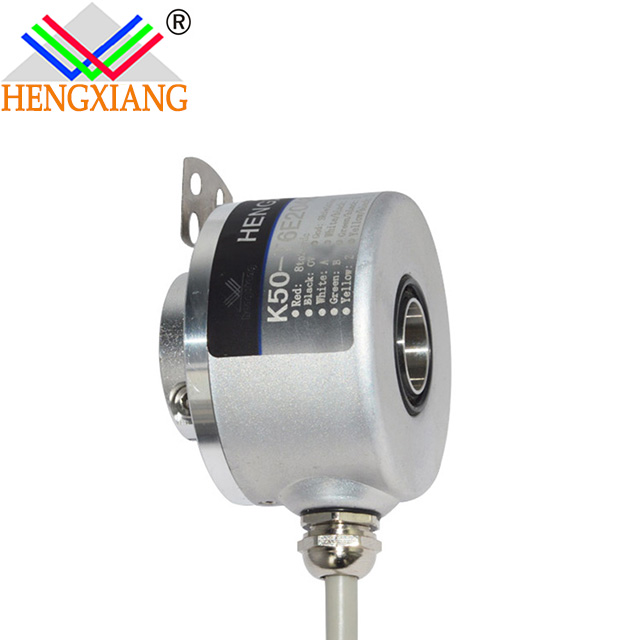

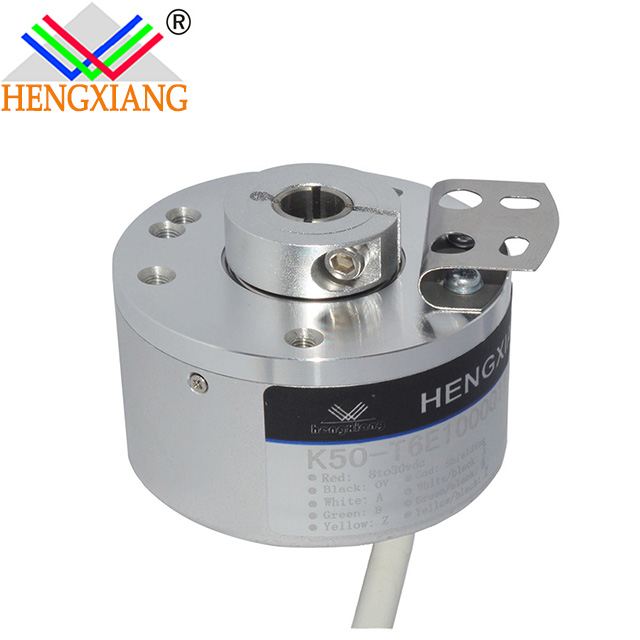

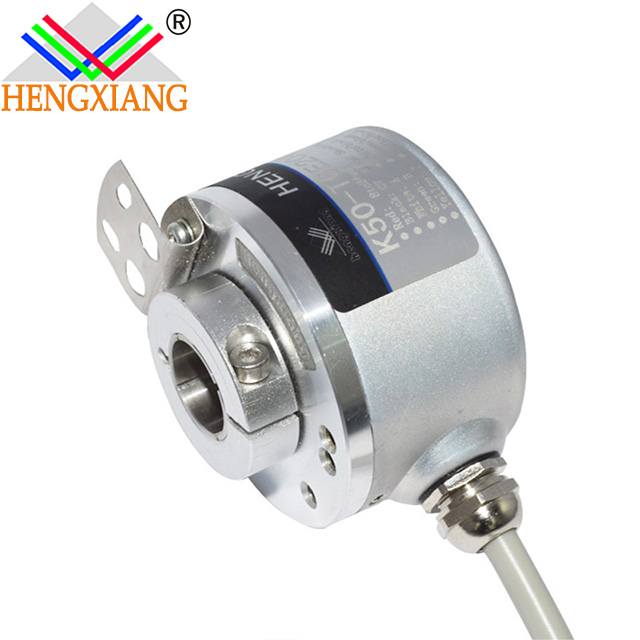

Main products Picture:

Encoder Application

Our Factory

company introduction

Shanghai Hengxiang Optical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entity integrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture.

"HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project.

Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.

Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .

FAQ before ordering

1) How to select an encoder

Before ordering encoders, you could clearly know which type of encoder you may need.

There are incremental encoder and absoltue encoder, after this, our sale-service department would better work for you.

2) What specifications are requeted before order an encoder?

Encoder type----------------solid shaft or hollow shaft encoder

External Diameter----------Min 12mm, MAX 100mm

Shaft Diameter---------------Min shaft 2.5mm, Max shaft 45mm

Phase & Resolution---------Min 20ppr, MAX 48000ppr

Circuit Output Mode-------you could choose NPN,PNP,Voltage, Push-pull,Line driver, etc

Power Supply Voltage------DC5V-30V

3) How to choose a right encoder by yourself ?

Exact Specification Describtion

Check The Installation Dimensions

Contact Supplier to get more details

4) How many pieces to start ?

1PCS only

5) Why choose "Hengxiang" Brand Encoder

All encoders are designed and developed by our own engineer team since year2008,

and most of the electronic component of encoders are imported from overseas market.

Never let our quality down,because quality is our culture.

6) How long is your lead time?

Short lead time----3 days for samples,7-10days for mass production

7) what is your guarantee policy?

1year warranty and life-long technical support

8) Your Company Official Website?

You For More information,please freely visit our official website:http://www.shhxgd.com

9) Where to download encoder datasheet or catalogue?

You could visit our website at http://www.shhxgd.com or contact online sale service to get the latest catalogue files.
