Hollow Shaft
96mm
49.5mm
15.875/25/28/30mm
120-32768ppr
Incremental encoder
IP67
TTL HTL NPN PNP Push-Pull Voltage
No
| Quantity: | |
|---|---|

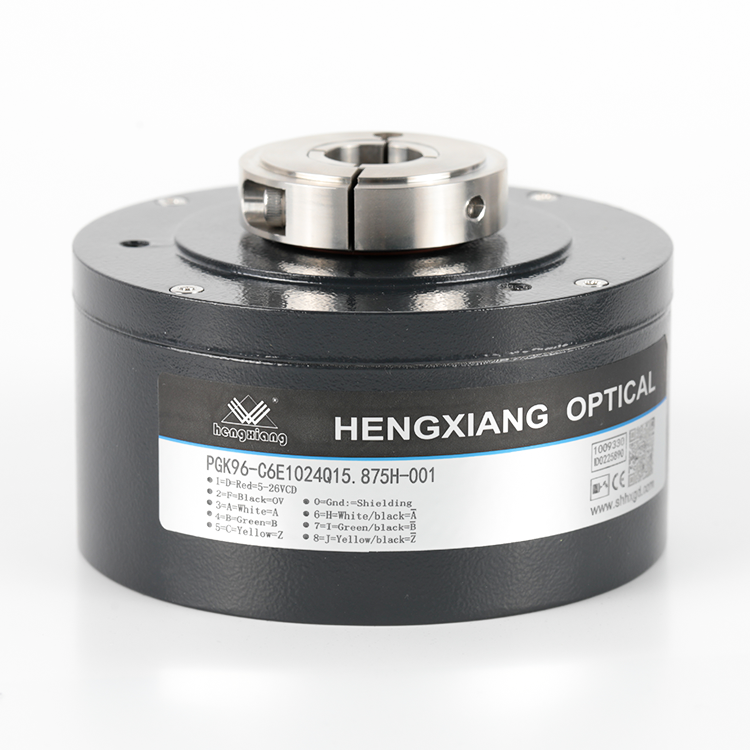

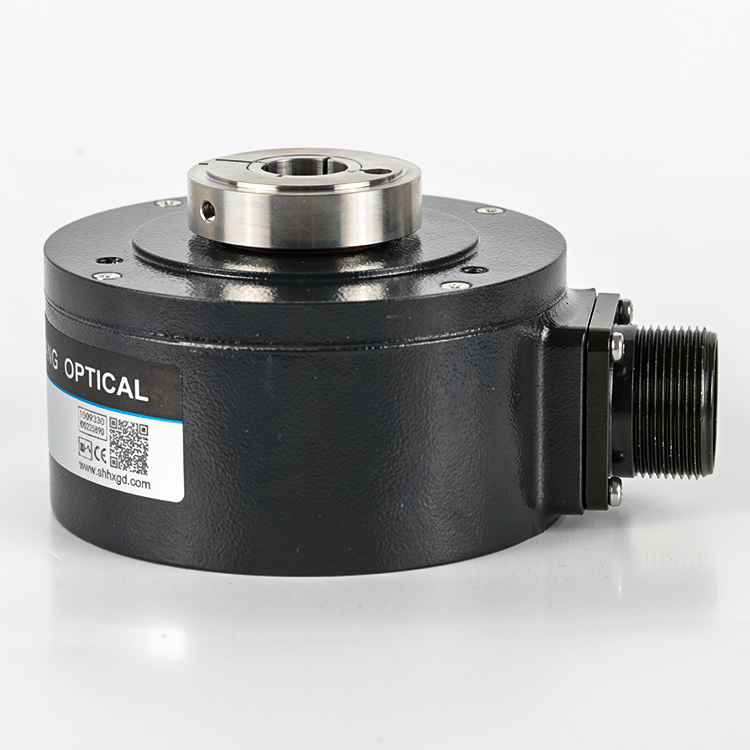

PGK96
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental Type |
| External diameter | 96mm |
| Thickness | 63.5mm |
| Hollow shaft type | Through shaft |
| Hollow shaft diameter | 15.875mm;25mm;28mm;30mm |
| Resolution | 1000;2000;2500;4096;8000;10000;16384;32768 1024;2048;4000;5000;8192;16000;32000;64000;65536 |
| Output phase | A+A-+B+B-+Z+Z- |
| Reverse polarity protection | √ |
| Short-circuit protection | √ |
| Supply voltage | DC5V; DC8-30V |
| Outlet type | Radial cable |
| Output mode | NPN/PNP/Voltage/Push-pull/TTL/HTL/RS422 |
| Consumption current | 100mA Max; 120mA Max |
| Top response frenquency | 100kHZ; 500kHZ; 600kHZ |
| GND | not connected to the encoder |
| Starting torque | Less than 70×10-3 N.m |
| Inertia moment | Less than 90×10-6 kg.m2 |
| Environmental temperature | Operating: -40~+95℃(repeatable winding cable: -10℃); Storage: -40~+95℃ |
| Enviromental humidity | Operating and storage: 50~85%RH(noncondensing) |
| Protection | IP67 |
| Shell | Aluminium alloy |
| Certification | CE |
| package | Carton box |
| Net weight | About 1100g |
Shanghai Hengxiang Optical Electronics Co., Ltd. is a high-tech enterprise specializing in the creation, research, production, and marketing of high-precision optical encoders. We have a mature independent research and development capability, which enables to customize the production of exclusive models based on the needs of new development technology products. We founded in 2001 and exported products to domestic and overseas after 21 years of sedimentation. Our company mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.
We focus on being a well-known brand in the field of precision optical encoders and aim to be a leader in international precision encoders.
"Precision in Sensing for a Sci-tech Life.” "Hengxiang will adhere to the corporate principles of "Integrity, Precision & Pragmatism, Customer-oriented, Unity and Mutual-success".
Q: What's your major products?
A: Our company established products from optical lens and encoder disk,which provide a strong theoretical basis for encoders, after 20 years development, we exteneded our business to encoders , this is why our quality is highly assured and won positive feedback compared to other encoder factory.
Q: Are you a manufacturer or a agency?
A: We are a factory for over 23 years of manufacturing experience,welcome to visit our factory,we are located in Shanghai city, China.
Q: Can I customize an encoder if there's no similar parameters from your current catalog?
A: Yes, we can provide customized services,we also have laser printing machines to custom your own logo or part number;
If you would like to get an equivalent products for other brands,you may contact us to get an accurate price and parameters confirmation, we will reply you within one hour in working time.
Q: What is your MOQ?
A: MOQ is 1pcs for our regular encoders.
Q: How long does the lead time take?
A: Delivery takes within 1 week for samples,about 10 days for mass order for regular encoders.
