Hollow Shaft
39mm
41mm
6/8/10mm
17-24bit
Absolute Single-turn Absolute-Multi-turn
IP65
Biss-C SSI RS485
No
| Quantity: | |
|---|---|

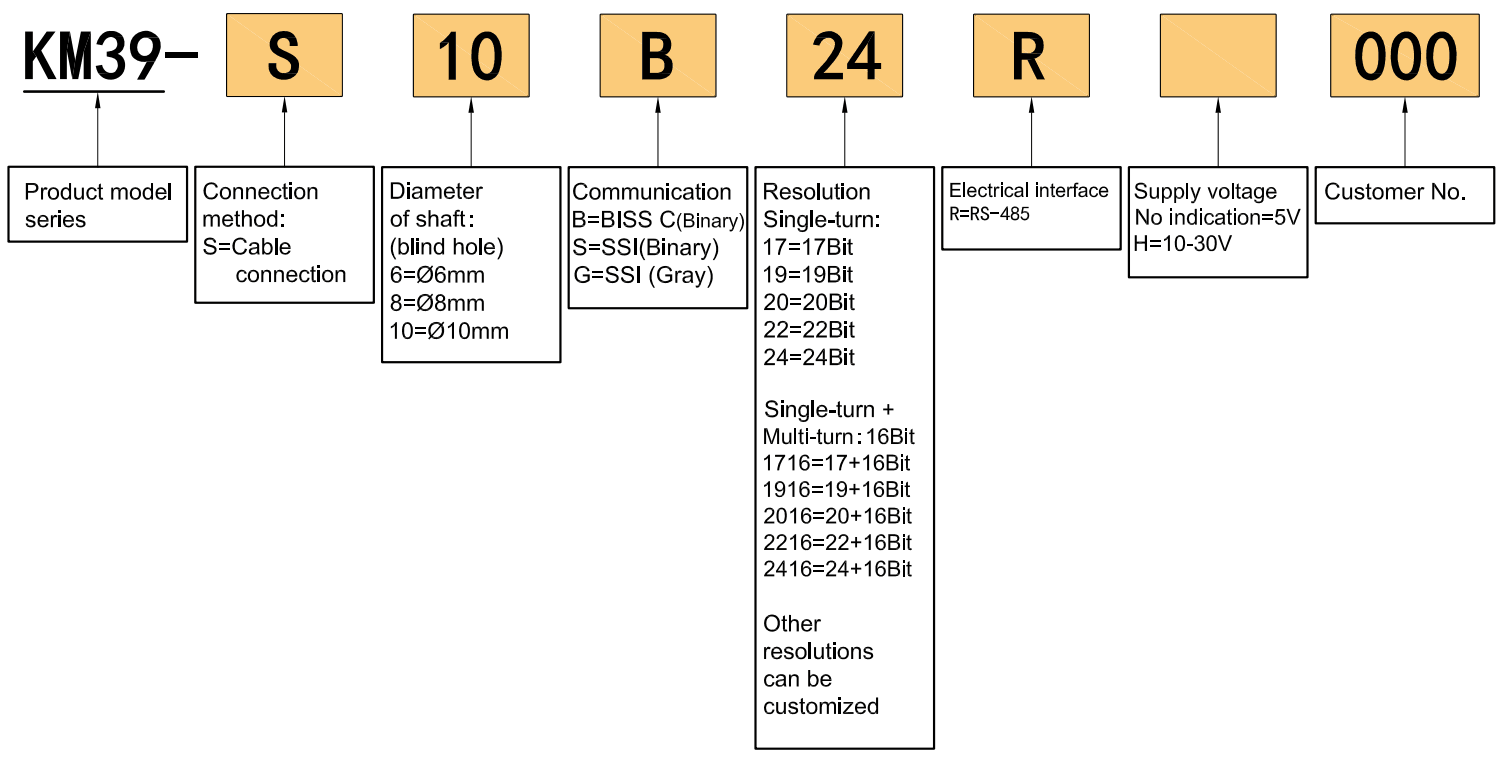

KM39
| Items | Basic parameters |
| Brand | Hengxiang |
| Encoder type | Absolute encoder |

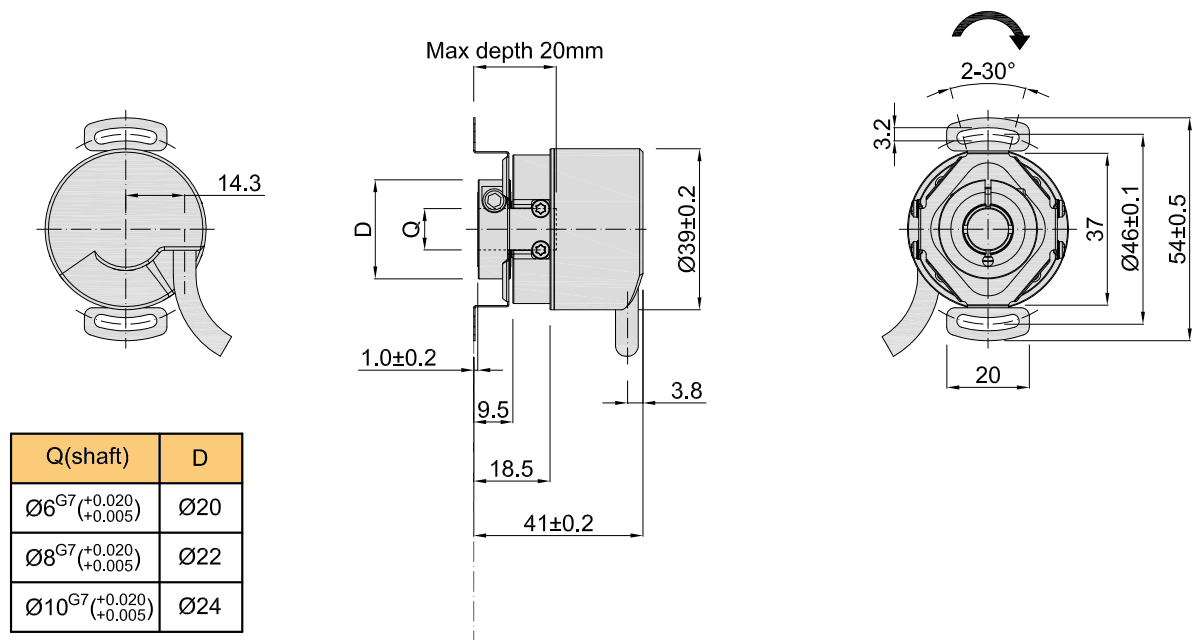

| External diameter | 39mm |
| Thickness | 41mm |
| Installation dimension | 46mm |
| Hollow shaft type | Blind hole |
| Hollow shaft diameter | 6mm; 8mm; 10mm |
| Resolution | single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit |
| multi-turn: 1716=17+16Bit, 1916=19+16Bit, | |
| 2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit | |
| Communication | BISS-C; SSI |
| Electrical connection | Radial cable |
| Output mode | Multi-turn(Binary&Gray) |
| Single-turn(Binary&Gray) | |
| Scanning principle | Photoelectric |
| Accuracy | ±80" |
| Response speed | Normal action: 6000min |
| RMS position signal noise | ±2@18 bits/r |
| Communication clock frequency | ≤10MHz(BISS) or ≤ 5MHz(SSI) |
| Starting time | typical value: 13ms |
| Absolute position sampling period | ≤75 ns |
| Allowable speed | ≤32200 r/min (restricted by mechanical speed limit) |
| Cable | Differential twisted-paired cable |
| Cable length | 200mm-10000mm |
| Mechanical Connection | Ring locking to the shaft, steel connection fixed to the motor platform |
| Starting Torque | less than 9.8×10-3 N.m |
| Inertial moment | less than 6.5×10-6 kg.m2 |
| Shaft load | Radial 20N; Axial 10N |
| Slew speed | ≤6000rpm |
| Shell Material | Aluminum |
| Weight | about 130g |
| Environmental temperature | Operating: -40~+95℃; Storage: -40~+95℃ |
| Environmental humidity | Operating and storage: 35~85%RH(Noncondensing) |
| Vibration | Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually |
| Shock | 980m/s2 11ms, three times for X,Y,Z direction individually |
| Protection | IP65 |
Shanghai Hengxiang Optical Electronics Co., Ltd. is a high-tech enterprise specializing in the creation, research, production, and marketing of high-precision optical encoders. We have a mature independent research and development capability, which enables to customize the production of exclusive models based on the needs of new development technology products. We founded in 2001 and exported products to domestic and overseas after 21 years of sedimentation. Our company mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.
We focus on being a well-known brand in the field of precision optical encoders and aim to be a leader in international precision encoders.
"Precision in Sensing for a Sci-tech Life.” "Hengxiang will adhere to the corporate principles of "Integrity, Precision & Pragmatism, Customer-oriented, Unity and Mutual-success".
Q: What's your major products?
A: Our company established products from optical lens and encoder disk,which provide a strong theoretical basis for encoders, after 20 years development, we exteneded our business to encoders , this is why our quality is highly assured and won positive feedback compared to other encoder factory.
Q: Are you a manufacturer or a agency?
A: We are a factory for over 23 years of manufacturing experience,welcome to visit our factory,we are located in Shanghai city, China.
Q: Can I customize an encoder if there's no similar parameters from your current catalog?
A: Yes, we can provide customized services,we also have laser printing machines to custom your own logo or part number;
If you would like to get an equivalent products for other brands,you may contact us to get an accurate price and parameters confirmation, we will reply you within one hour in working time.
Q: What is your MOQ?
A: MOQ is 1pcs for our regular encoders.
Q: How long does the lead time take?
A: Delivery takes within 1 week for samples,about 10 days for mass order for regular encoders.
