Hollow Shaft
58mm
30mm
14/18/20/22/24/25mm
17-24bit
Absolute Single-turn, Absolute-Multi-turn
IP65, IP50
Biss-C, SSI, RS485
No
| Quantity: | |
|---|---|

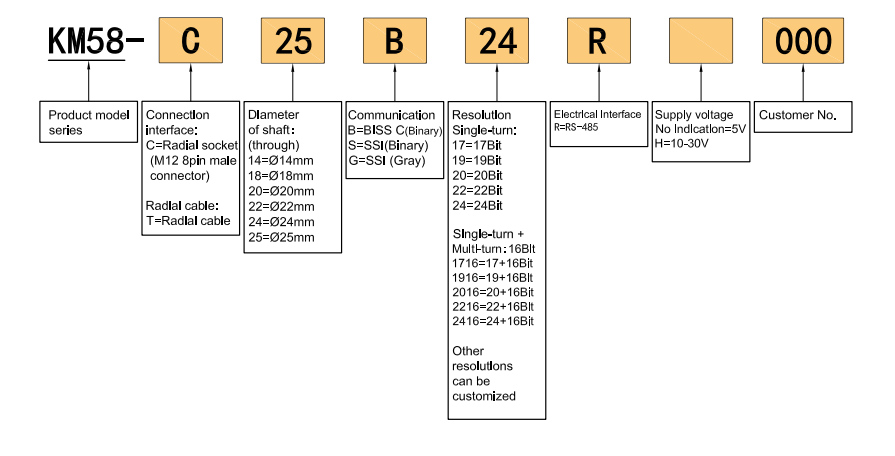

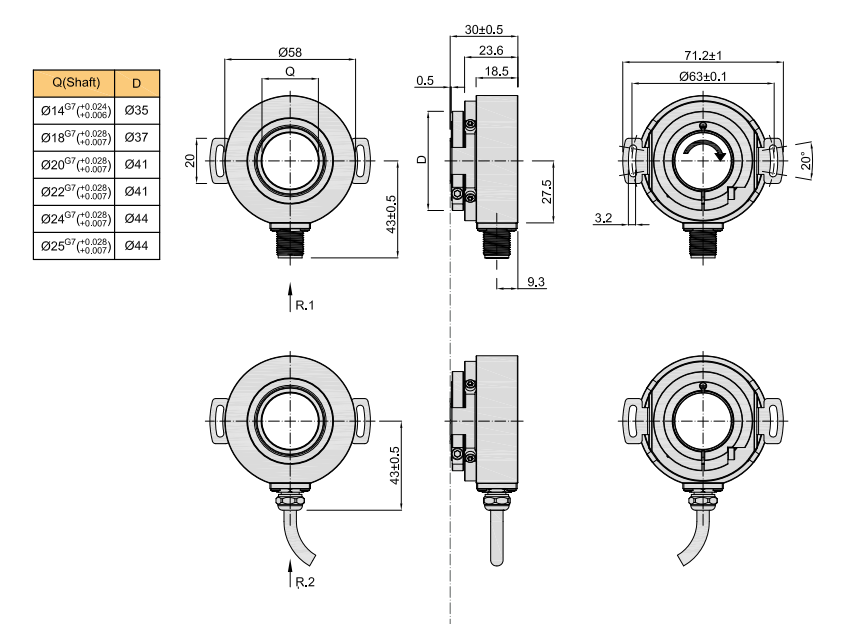

KM58
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Absolute encoder |
| External diameter | 58mm |
| Thickness | 30mm |
| Shaft type | solid shaft |
| Shaft diameter | 14mm;18mm;20mm;22mm;24mm;25mm |
| Bit(steps) | Single-turn 17bits; 19bits; 20bits; 22bits; 24bits;Up to 32bits; |
| Multi-turn: 16bits+(17-24bits) | |
| Outlet type | Cable connection; Radial socket;Axial socket |
| Electrical interface | RS-485 |
| Communication | BISS C Binary/Gray) |
| SSI (Binary/Gray) | |
| Protection grade | IP65 |
| Cable length | 1M (cable length could be added appropriately by |
| require, but it need payment individually) | |
| Response speed | Normal action: 6000min-1 |
| RMS position signal noise | ±2 @18 Bits/r |
| Communication clock frequency | ≤10 MHz (BiSS) or ≤5 MHz (SSI) |
| Starting time | Typical value: 13ms |
| Absolute position sampling priod | ≤75 ns |
| starting torque | less than 12 10-3N.m |
| Intertia moment | less than 11x 10-6kg.m2 |
| Shaft load | Radial 30N; Axial 20N |
| Allowed speed | ≤6000r rpm |
| Environmental temperature | Operating:-40 ～+95°C；storage:-40 ～+95°C |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Vibration(endure) | Amplitude 1.52mm,5-55Hz,2 hours for three axis individually |
| Shock(endure) | 980m/s2 ,11 ms three times for X,Y,Z direction individually |
| Shaft Material | Stainless steel |
| Shell Material | Aluminum alloy |
| Certification | CE |
| package | Carton box |
| Net weight | About 180g (with package) |
