Single Bearing 11mm Thickness Hollow Shaft 8-14mm Encoder P48

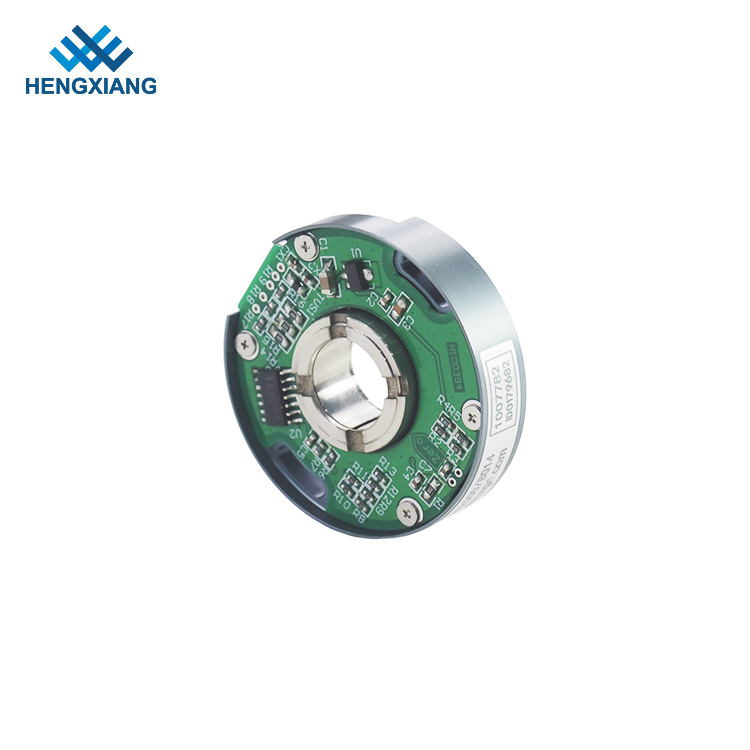

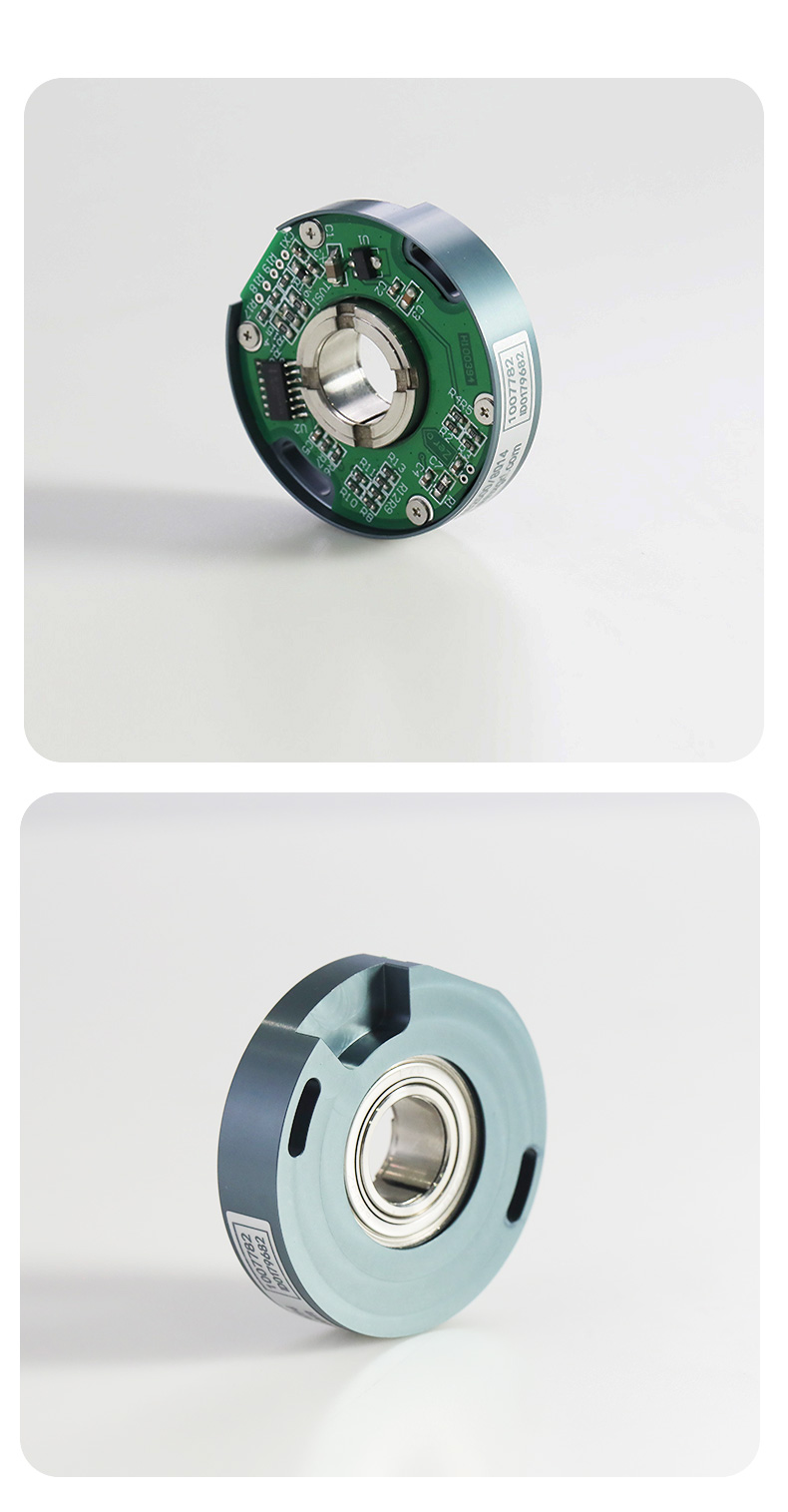

The P48 Incremental Optical Encoder (Hollow Shaft) features a unique through-shaft concentric locking device and single-bearing ultra-thin design, ideal for low-space installations. With an external diameter of 48mm, thickness as low as 11mm, and shaft diameter up to 14mm, it employs non-contact photoelectric principles for reliable performance. Equipped with reverse polarity and short-circuit protection, it offers multiple electrical interfaces and a resolution of up to 5000 PPR. Suitable for servo motors, robots, and automation control, it ensures precise positioning. Available with radial sockets (8P/14P) or a 1.0M radial cable, it weighs about 60g. Operating in -20°C to +85°C, it's designed for durability with die-cast aluminum construction. Perfect for high-precision industrial applications, it combines compact design with robust functionality.

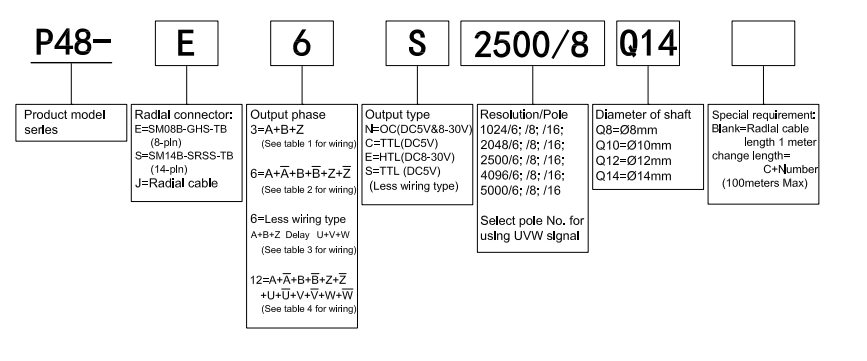

| Items | Basic parameters |
| Brand | Hengxiang |
| Encoder type | Incremental encoder |
| External diameter | 48mm |
| Thickness | 11mm |
| Installation dimension | R21mm |
| Hollow shaft type | through hole |
| Hollow shaft diameter | 8mm/10mm/12mm/14mm |
| Resolution | 2500/6,2500/8,2500/16,5000/6,5000/8,5000/16,10000/6,10000/8,10000/16 |
| Output phase | 6=A+A-+B+B-+Z+Z-, 6=wire-saving type A+B+Z Lag+U+V+W |
| 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W- | |
| Supply voltage | DC5V;DC8-30V |
| Outlet type | Radial socket |
| Output phase | C=TTL(DC5V) |
| E=HTL(DC8-30V) | |
| S=TTL(DC5V)(Wire-saving type) | |
| Consumption current | 100mA MAX |
| Top response frenquency | TTL: 850KHz, HTL:1MHz |
| Rise/ Fall time | Less than 1us(cable length:2m) |
| starting torque | Less than 9.8×10-3N·m |
| Intertia moment | Less than 6.5×10-6kg·m2 |
| Shaft load | Radial 40N; Axial 20N |
| GND | not connect to encoder |
| Environmental temperature | Operating: -40~+105℃; Storage:-40~+110℃ |
| Enviromental humidity | Operating and storage: 35~85%RH(noncondensing) |
| Slew speed | (top response frequency/pulse)×60 |
| Shell Material | Aluminium alloy |
| Certification | CE |
| package | Carton box |
| Net weight | about 50g |
