Hollow Shaft
38mm
38mm
5/6/8mm
50-32768ppr
Incremental encoder
IP65, IP50
TTL, HTL, NPN, PNP, Push-Pull, Voltage
No
| Quantity: | |
|---|---|

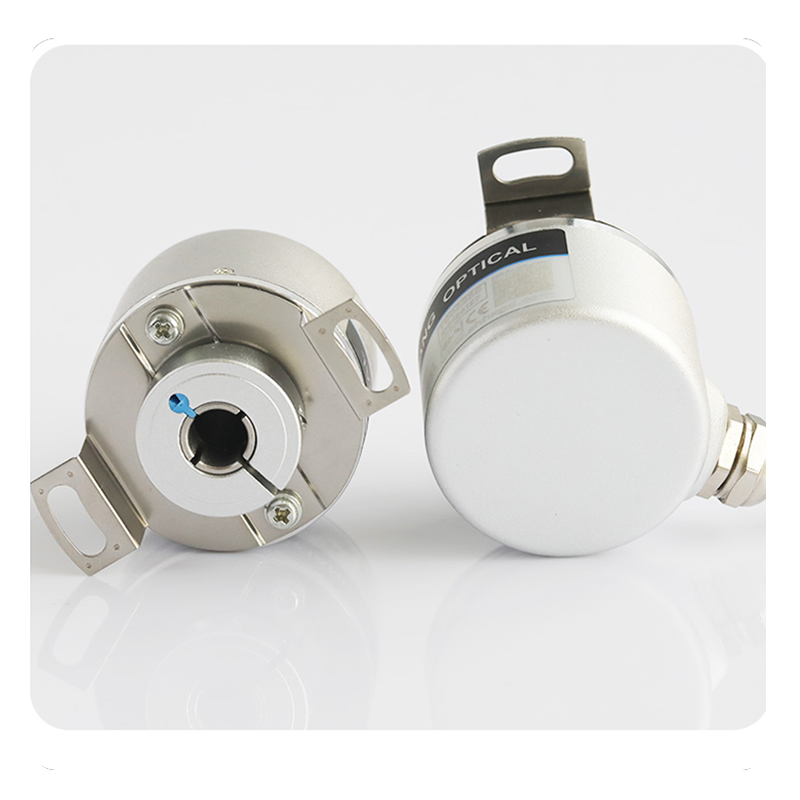

K38 Small economic univeral high pulse encoder up to 50 to 32768ppr
The K38 Incremental Optical Encoder (Blind/Through Shaft) offers a compact, economic design for industrial automation. With an external diameter of 38mm, thickness 38mm, and shaft diameter up to 8mm, it features a ring locking structure and non-contact photoelectric principle. Equipped with reverse polarity and short-circuit protection, it supports multiple electrical interfaces (OC, Push-pull, TTL/HTL) and delivers resolutions up to 32768 PPR. Suitable for textile, packaging, motors, elevators, and CNC systems, it ensures precise positioning. Choose between radial/axial cables (1M standard) with IP50/IP65 protection. Weighing 140g, it operates at ≤6000 rpm (IP50)/≤4000 rpm (IP65) in -20°C to +90°C, ideal for harsh environments.

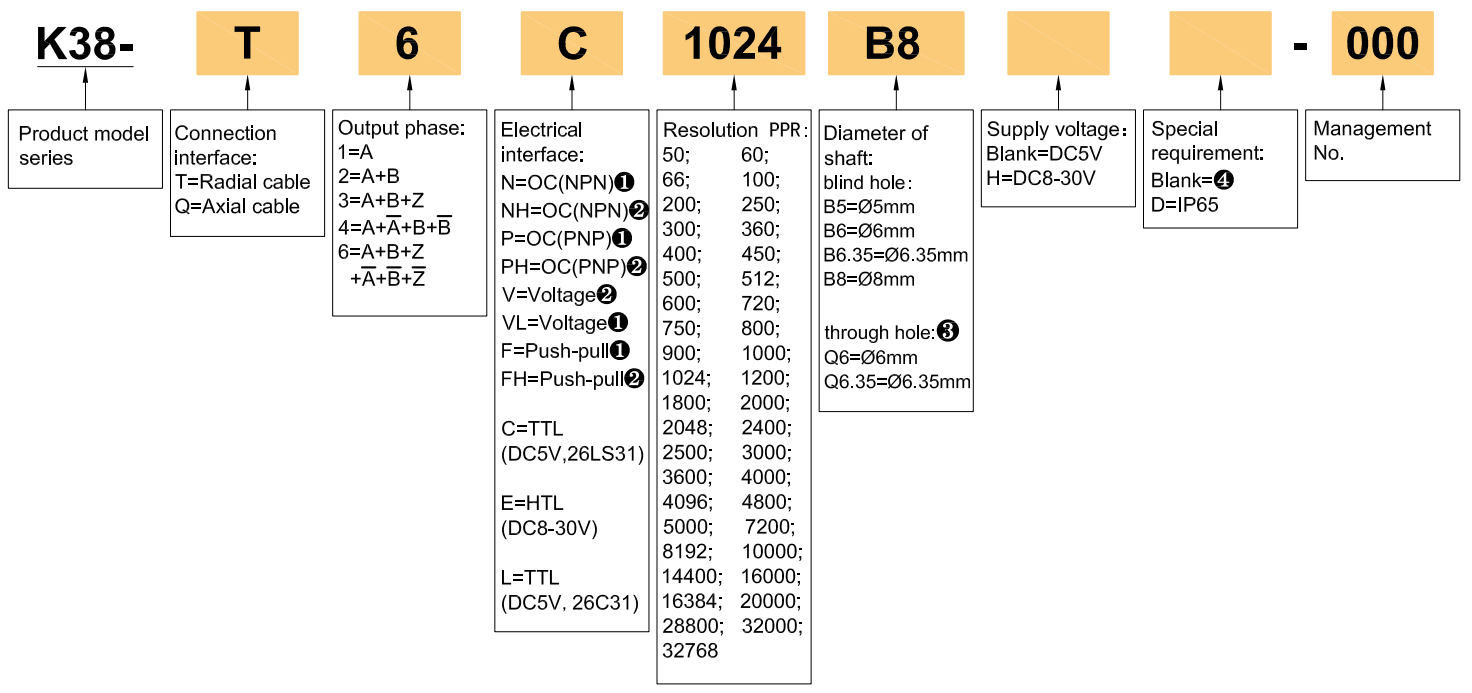

| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 38mm |
| Thickness | 38mm |
| Installation dimension | R23.5mm(spring plate 38T45) |
| Through shaft | 6/6.35mm |
| Blind shaft | 5/6/6.35/8mm |
| Resolution | 50;60;66;100;200;250;300;360;400;450;500;512;600;720; 750;800;900;1000;1024;1200;1800;2000;2048;2400;2500; 3000;3600;4000;4096;4800;5000;7200;8192;10000;14400; 16000;16384;20000;28800;32000;32768 |
| Reverse polarity protection | √ |
| Short circuit protection | √ |
| Output phase | Phase A,B,Z A- B- Z- |
| Supply voltage | DC5V ; DC8-30V |
| Outlettype | Radial cable |
| Axial cable | |
| Output mode | NPN/PNP(Open Collector Output) |
| Voltage output | |
| Push-pull output | |
| Long line drive (26LS31) | |
| Compatible RS422 | |
| Long line drive (RT7272) | |
| Environmental temperature | Operating temperature: -20~+90° (Non icing) |
| Storage temperature: -25~+95° (Non icing) | |
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
| Shell | Die cast aluminium |
| Consumption current | 100mA Max |
| Shaft Load | Radial: 30N; Axial:20N |
| Top REV | 6000RPM ;IP65≤4000RPM |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| Mark to Space ratio | 45% to 55% |
| Top Resonse Frequency | 100kHz Max |
| Shell Material | aluminium alloy |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
| GND | not connect to encoder |
| Shaft Material | Stainless steel |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for X,Y,Z direction individually |
| Shock(endure) | 490m/s2,11 ms three times for X,Y,Z direction individually |
| Protection grade | IP50 ; IP65 |
| Cable length | 1000mm |
| starting torque | less than 9.8X10-3 N.m |
| Intertia moment | less than 6.5x 10-6kg.m2 |
| package | Carton box |
| Net weight | About 140g (with package) |
| Certification | CE |
