65mm rotary encoder 8192 PPR Rotary Encoder ABZ signal

这里可以自定义设置
product-HENGXIANG-img
product-HENGXIANG-img
product-HENGXIANG-img
product-HENGXIANG-img

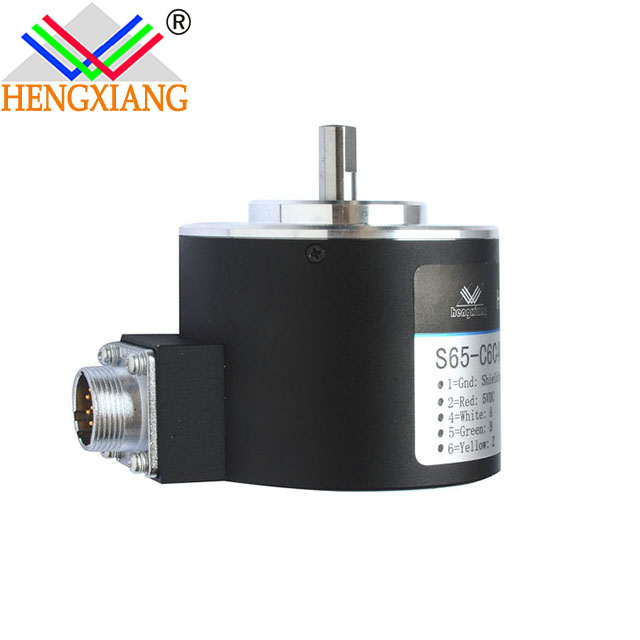

65mm rotary encoder 8192 PPR Rotary Encoder ABZ signal
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
HENGXIANG
Model Number:
S65 solid shaft encoder
Usage:
Position Sensor
Theory:
Optical sensor
Output:
Other
ITEM:
S65 solid shaft encoder
External diameter:
65mm (flange 67*67)
Shaft diameter:
8mm & 10mm (D type)
Thickness:
59mm
Resolution:
up to 23040P/R
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC8V-30V
Outlet type:
socket at side
Cable length:
1M
Weight:
about 350g (with package)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Product Description





S65 incremental solid shaft encoder





1) Advantages



1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control



2) S65- Series Encoder Specification



BrandHENGXIANG
External dimensionsExternal diameter: 65mm
Thickness: 53mm
Shaft diameter:8mm/10mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;500;512;600;700;720;800;900;1000;1024;1200;2000;2048;2500;50008192;10000;11520;16384;20000;23040
Output phasePhase A,B,Z ,A-,B-,Z-
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Socket out from back
Output modeCollector open circuit output(NPN &PNP)
Voltage output
Push-pull output
Line drive (26LS31)
Line drive (RT7272)
Line drive (Compatible RS422)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1000mm
Shell Aluminium
PackageCarton box
Net weight About  350g (with package)
Certification CE





3) Pictures





4)Machine Dimension







Encoder Application



Company Information



Packaging & Shipping

 Shipping

INTERNATIONAL AIR MAIL

 Payment

 Fast Delivery

Different amount of time will be required for different
FAQ

Q1.What’s your advantage? Why we choose you?

A:1)Over16 Years experience of producing encoders with the most professional techniques and team. More advantage in price

2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.

3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.

Q2.What’s the Payment?

A:T/T would be better with quick transfer and few bank fees. Also Western Union is acceptable,
Citibank and American Bank both OK,including credit card.

Q3.Are you a factory or trading company?

A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q4.How can I get some samples?

A:We are honored to offer you samples.
Kindly check alll parameters needed, such as revolution(PPR), phase, circuit output mode, power supply voltage, motor speed(RPM)
