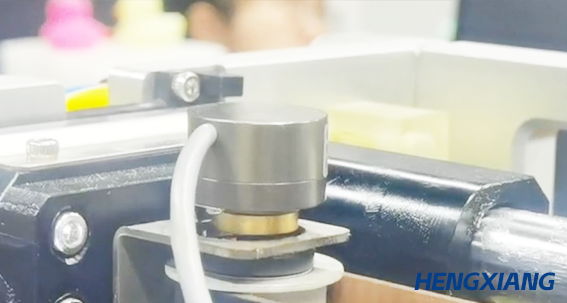

High Speed Rotary Encoder

In the world of motion control, speed is more than just a number—it's a challenge that demands precision, responsiveness, and unwavering reliability. High - speed rotary encoders are the unsung heroes that rise to this challenge, turning the blur of rapid rotation into clear, actionable data. Let's dive into what makes these speed demons tick, with a focus on how Shanghai Hengxiang Optical Electronics Co., Ltd. engineers solutions that thrive in the fast lane.

At first glance, a high - speed rotary encoder might look similar to its slower counterparts, but under the hood, it's a marvel of engineering tuned for velocity. The core mission remains the same: translating rotational motion into electrical signals. But when shafts spin at thousands of revolutions per minute (RPM)—think of a high - speed motor in a manufacturing line or a turbine in a power plant—the encoder must keep up, capturing every tiny increment of movement without missing a beat.

So, what sets high - speed encoders apart? It starts with the code disk. In standard encoders, the patterns on the disk are spaced to balance precision and readability. For high - speed models, Hengxiang's engineers shrink these patterns, packing more transparent and opaque segments into each track. This means more pulses per revolution, allowing the encoder to detect even the smallest movements, even when the shaft is spinning at breakneck speeds. Imagine a runner sprinting past a series of checkpoints—if the checkpoints are closer together, you can track their position more frequently. That's exactly what a high - density code disk does for rapid rotation.

But more pulses mean more data to process, and speed demands lightning - fast signal handling. High - speed encoders from Hengxiang are equipped with advanced circuitry that can process these pulses in microseconds. The photodetectors, too, are upgraded—they need to switch between detecting light and darkness faster than their standard counterparts to avoid "blurring" the signal at high speeds. It's like upgrading from a slow - shutter camera to a high - speed one; you capture crisp images even in fast motion.

Durability is another non - negotiable factor. High - speed rotation generates heat, vibration, and centrifugal force that can stress components. Hengxiang's high - speed encoders are built with robust materials: the code disk is made from heat - resistant glass or metal to prevent warping, and the shaft is reinforced to handle the mechanical stress of rapid spinning. Sealing is also critical—any dust or debris that sneaks in could disrupt the light path, so these encoders often feature tight, industrial - grade seals to keep the inner workings clean.

Let's take a real - world example: a high - speed packaging machine that fills hundreds of bottles per minute. The motor driving the conveyor belt spins at 3,000 RPM, and the encoder must track its speed to ensure the belt moves in perfect sync with the filling nozzles. A standard encoder might lag, causing misalignment and spilled product. But Hengxiang's high - speed encoder, with its dense code disk and fast processing, sends precise pulse signals to the control system, which adjusts the motor's speed in real - time, keeping the operation smooth and efficient.

Absolute high - speed encoders add another layer of sophistication. Even at top speeds, they must maintain their "memory" of exact position. Hengxiang achieves this by combining the high - density code disk with a secondary track that uses a unique absolute code. This way, even as the encoder zips through thousands of RPM, it can still report not just how fast it's spinning, but exactly where it is at any given moment—a crucial feature for applications like aerospace turbines, where knowing the exact angle of a blade at high speed is vital for safety.

Magnetic high - speed encoders, though less common in Hengxiang's lineup, also have their place. Their magnetic sensors are less prone to interference from vibration, which can be intense at high speeds. However, optical encoders still hold the edge in precision for extreme velocity, making them Hengxiang's go - to for applications where accuracy can't be compromised.

In the end, high - speed rotary encoders are a testament to the marriage of miniaturization, speed, and durability. They're not just faster versions of standard encoders—they're reimagined to thrive in environments where every microsecond counts. For Shanghai Hengxiang Optical Electronics Co., Ltd., crafting these encoders is about more than meeting specifications; it's about enabling industries to push the boundaries of what's possible, knowing their motion tracking is in capable hands.

Whether it's powering a high - speed production line or monitoring a turbine in a power plant, a high - speed rotary encoder from Hengxiang doesn't just keep up with the speed—it defines it, turning chaos into control, one pulse at a time.
