Solid Shaft
38mm
28mm
4mm
50-32768ppr
Incremental encoder
IP65, IP50
TTL, HTL, NPN, PNP, Push-Pull, Voltage
No
| Quantity: | |
|---|---|

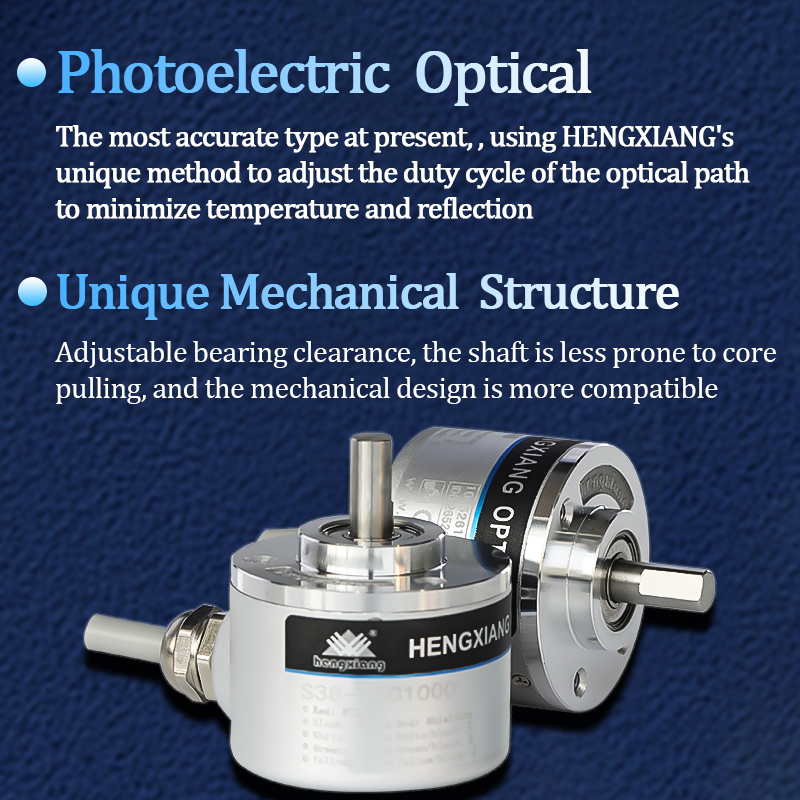

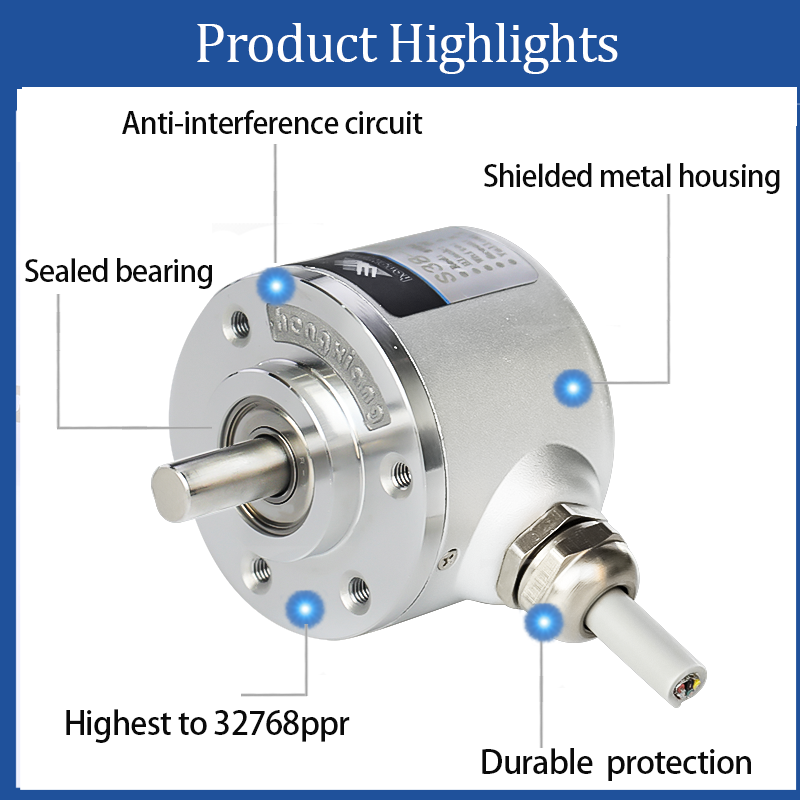

S38

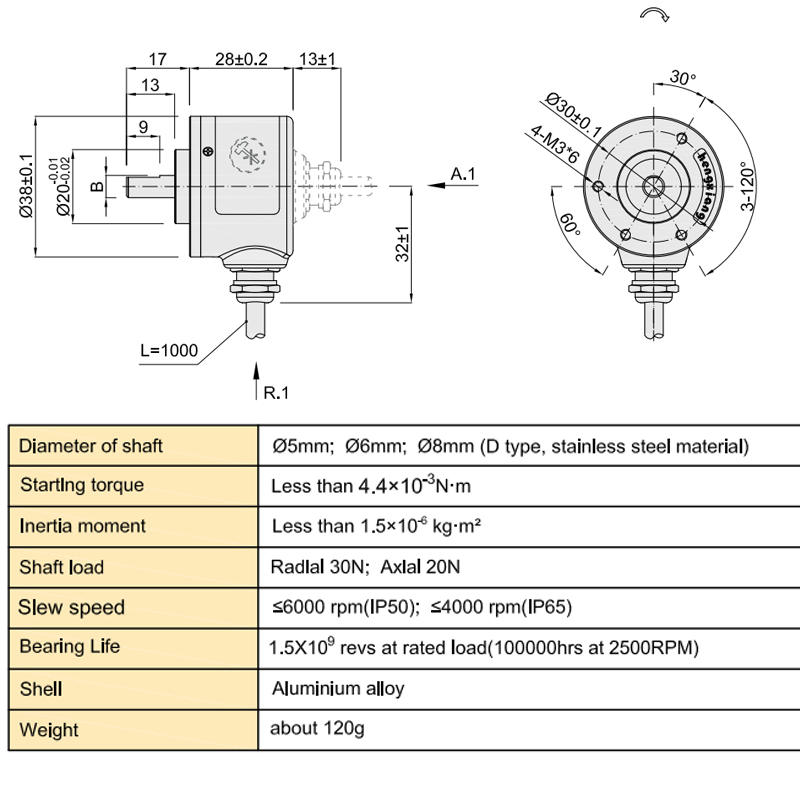

| ITEM | PARAMTERS |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 38mm |
| Thickness | 28mm |
| Shaft length | 13mm |
| Solid Shaft diameter | 5mm; 6mm;8mm(D shape) |
| Resolution | 50;60;66;100;200;250;300;360;400;450;500;512; |
| 600;720;750;800;900;1000;1024;1200;2000;2048;2500; | |
| 3600;4000;4096;4800;5000;7200;8192;10000;16384 | |
| 20000;28800;32000;32768 | |
| Output mode | NPN&PNP |
| Voltage output | |
| Push-pull output | |
| Difference output(TTL,HTL,RS422) | |
| Reverse polarity protection | √ |
| Short circuit protection | √ |
| Output phase | Phase A,B,Z,A-,B-,Z- |
| Outlet type | Radial cable 7 Axial Cable |
| Protection grade | IP50 & IP65 |
| Cable length | 1000MM |
| package | Carton box |
| Net weight | About 120g (with package) |
| starting torque | less than 4.4X10-3 N.m |
| Intertia moment | less than 1.5x 10-6kg.m2 |
| Shaft load | Radial 30N; Axial 20N |
| Top REV | 6000RPM ;IP65≤4000r rpm |
| Environmental temperature | Operating:-20 ～+90°；storage:-25 ～+95° |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
| Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually |
| Shaft Material | Stainless steel |
| Shell Material | Alminium alloy |
| Cable length | 1000mm(cable with shielding) |
| Certification | CE |
Shanghai Hengxiang Optical Electronics Co., Ltd. is a high-tech enterprise specializing in the creation, research, production, and marketing of high-precision optical encoders. We have a mature independent research and development capability, which enables to customize the production of exclusive models based on the needs of new development technology products. We founded in 2001 and exported products to domestic and overseas after 21 years of sedimentation. Our company mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.
We focus on being a well-known brand in the field of precision optical encoders and aim to be a leader in international precision encoders.
"Precision in Sensing for a Sci-tech Life.” "Hengxiang will adhere to the corporate principles of "Integrity, Precision & Pragmatism, Customer-oriented, Unity and Mutual-success".
Q: What's your major products?
A: Our company established products from optical lens and encoder disk,which provide a strong theoretical basis for encoders, after 20 years development, we exteneded our business to encoders , this is why our quality is highly assured and won positive feedback compared to other encoder factory.
Q: Are you a manufacturer or a agency?
A: We are a factory for over 23 years of manufacturing experience,welcome to visit our factory,we are located in Shanghai city, China.
Q: Can I customize an encoder if there's no similar parameters from your current catalog?
A: Yes, we can provide customized services,we also have laser printing machines to custom your own logo or part number;
If you would like to get an equivalent products for other brands,you may contact us to get an accurate price and parameters confirmation, we will reply you within one hour in working time.
Q: What is your MOQ?
A: MOQ is 1pcs for our regular encoders.
Q: How long does the lead time take?
A: Delivery takes within 1 week for samples,about 10 days for mass order for regular encoders.
