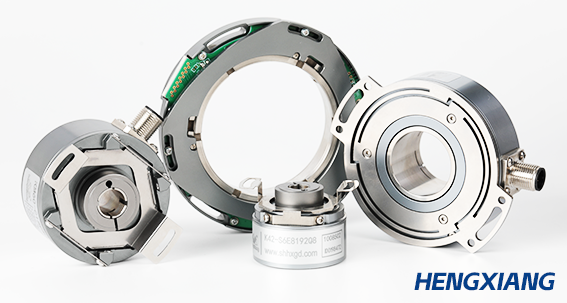

In the realm of rotary encoders, two heavyweights stand out: absolute encoders and incremental encoders. While both track rotational motion, they’re like two different tools in a mechanic’s toolbox—each designed for specific jobs, with unique strengths that make them indispensable in different scenarios. Let’s break down their differences, with insights from Shanghai Hengxiang Optical Electronics Co., Ltd.’s expertise in crafting both types.
The Core Difference: Memory Matters
At the heart of the distinction lies a simple question: What happens when the power goes out? An absolute encoder is like a meticulous note - taker—it never forgets its position. Even if the system shuts down, spins freely, or loses power, it retains a precise record of exactly where the shaft is. This is because its code disk is etched with a unique pattern for every possible position, almost like a serial number for each degree of rotation. When power returns, it reads this "serial number" and knows exactly where it stands.
An incremental encoder, on the other hand, is more like a counter. It generates pulses as the shaft spins, counting them to track how far and how fast it’s moved. But here’s the catch: it has no memory. If power is lost, the count resets to zero. When power comes back on, it has no idea where the shaft was before the outage—it can only start counting again from that moment. This makes it great for tracking motion in real - time but less reliable for applications where position must be known at all times, even after interruptions.
How They Work: Patterns and Pulses
Let’s dive into their inner workings. Absolute encoders from Hengxiang use a code disk with a complex, multi - track pattern. Each track represents a bit in a binary or Gray code, and together, they create a unique code for every position. For example, a 12 - bit absolute encoder can distinguish 4,096 different positions in a single revolution. The sensors read these codes simultaneously, giving an instant, unambiguous position reading. This design is why Hengxiang’s absolute encoders are trusted in applications like robotic arms, where knowing the exact angle of a joint—even after a power cycle—is critical.
Incremental encoders, by contrast, rely on two tracks of evenly spaced, alternating opaque and transparent segments. As the disk spins, these tracks generate two out - of - phase pulse streams (called quadrature encoding). By counting these pulses, the system calculates speed and distance. The phase difference between the two streams tells it direction (clockwise or counterclockwise). Hengxiang’s incremental encoders are optimized for high pulse counts—some generating thousands of pulses per revolution—making them ideal for tasks like monitoring motor speed in a conveyor belt, where real - time adjustments matter more than remembering a starting point.
Applications: Choosing the Right Tool
The choice between absolute and incremental often comes down to the application’s needs. Absolute encoders shine in scenarios where position accuracy is non - negotiable, even after power loss. Think of a medical scanner that must remember the exact angle of its arm during a procedure, or a satellite dish that needs to stay locked on a signal through power fluctuations. Hengxiang’s absolute encoders, with their rugged designs and high resolution, are built for these high - stakes environments.
Incremental encoders, being simpler and often more cost - effective, excel in applications where continuous motion tracking is key, and power interruptions are rare or manageable. They’re a staple in manufacturing lines, where they monitor the speed of motors driving assembly belts, or in 3D printers, where they track the movement of print heads. Their ability to generate high - speed pulses makes them perfect for tasks requiring rapid, real - time feedback—like adjusting the speed of a fan based on temperature changes.
Trade - Offs: Precision, Cost, and Complexity
Absolute encoders are more complex, with their multi - track code disks and advanced signal processing, which makes them pricier than incremental models. They also tend to be bulkier, though Hengxiang has made strides in miniaturizing their designs—like their compact absolute encoders used in drones, where space is at a premium.
Incremental encoders, with their simpler single - or dual - track disks, are more affordable and often smaller. They’re also faster at generating data, as they don’t need to process complex codes—just count pulses. However, their lack of memory means they require a reference point (a "home" position) to reset their count periodically, which adds a step in setup for some applications.
Hengxiang’s Take: Matching Encoders to Missions
Shanghai Hengxiang Optical Electronics Co., Ltd. doesn’t see one type as better than the other—just better suited. Their absolute encoders are engineered for reliability in critical, high - precision roles, with features like redundant sensors to prevent failure. Their incremental encoders, meanwhile, are built for speed and efficiency, with high - quality photodetectors that ensure clean pulse signals even at thousands of RPM.
In the end, the choice between absolute and incremental encoders boils down to one question: Does your system need to remember where it is, even when the lights go out? If yes, absolute is the way to go. If not, incremental offers a robust, cost - effective solution. Either way, Hengxiang’s lineup ensures there’s an encoder tailored to the job—turning motion into meaning, whether through a unique code or a steady stream of pulses.
