What is the difference between HTL and SlN COS encoders?


When selecting an encoder for industrial motion control, understanding the difference between HTL (Push-Pull) and SinCos (Sine-Cosine) encoders is critical. Each serves distinct purposes based on signal type, precision, and application requirements.


1. Signal Output Type

Feature HTL (Push-Pull) Encoder SinCos Encoder
Signal Format Digital square-wave (TTL/HTL) Analog sine & cosine waves
Output Pulse trains (A, B, Z) Continuous 1Vpp or differential Sin/Cos signals
Resolution Fixed (e.g., 1024 PPR) Interpolatable (theoretically infinite)

HTL → Best for discrete position counting (e.g., conveyor belts, basic motor feedback).
SinCos → Ideal for smooth, high-resolution control (e.g., CNC interpolation, servo systems).


2. Precision & Interpolation

  • HTL: Provides fixed resolution (e.g., 1000 pulses/revolution). Sudden steps between pulses can cause "jitter" in high-speed applications.

  • SinCos: Delivers analog waveforms, allowing external electronics to interpolate positions for sub-micron precision (e.g., 20-bit+ resolution after interpolation).

Example:

  • A 2048 PPR HTL encoder offers 11-bit resolution.

  • A SinCos encoder with 2048 cycles/rev + 4096x interpolation achieves 23-bit resolution.


3. Noise Immunity & Wiring

Factor HTL SinCos
Noise Immunity Good (HTL is robust) Excellent (differential signals reject EMI)
Cable Length Up to 100m (with shielded cable) Up to 50m (requires high-quality cabling)
Complexity Simple (3-5 wires) Complex (6+ wires for differential signals)

HTL → Preferred for long-distance, noisy environments (e.g., factory floors).
SinCos → Used in short-range, EMI-sensitive setups (e.g., lab equipment).


4. Typical Applications

HTL Encoders SinCos Encoders
- Conveyor systems - CNC machine tool axes
- Packaging machinery - Robotics & servo motors
- Basic motor feedback - Semiconductor manufacturing
- Cost-sensitive projects - High-end motion control

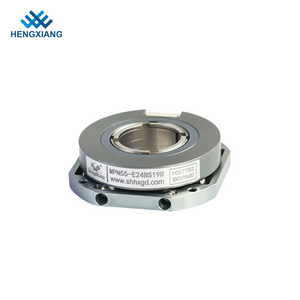

SHHXGD Solutions

✔ HTL Encoders: Rugged, IP67-rated designs for harsh industrial use.
✔ SinCos Encoders: Ultra-precise (±1 arc-second) with customizable interpolation.

Need help choosing? Contact SHHXGD for expert guidance!
