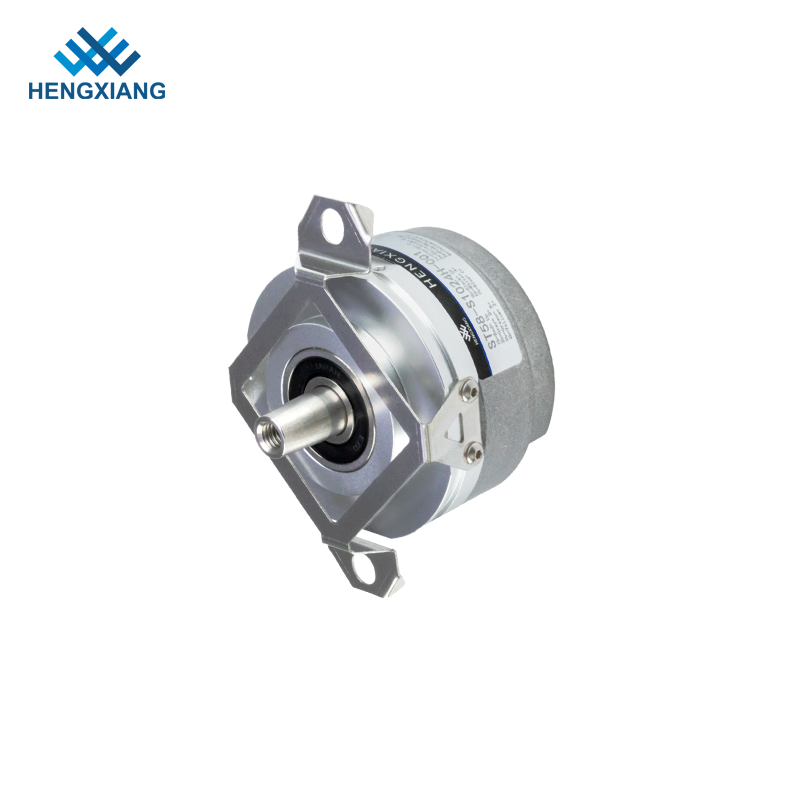

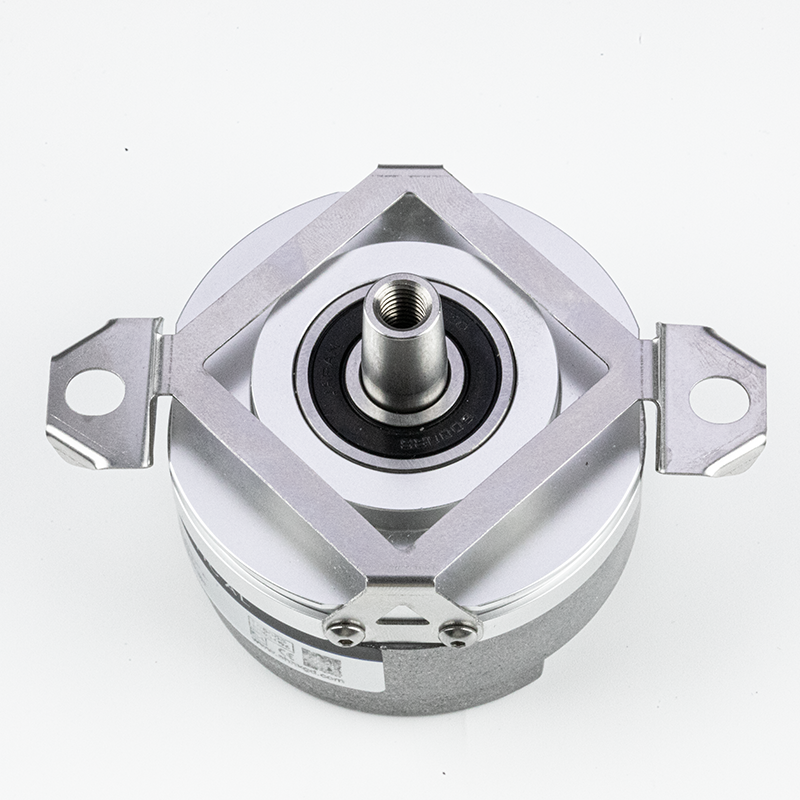

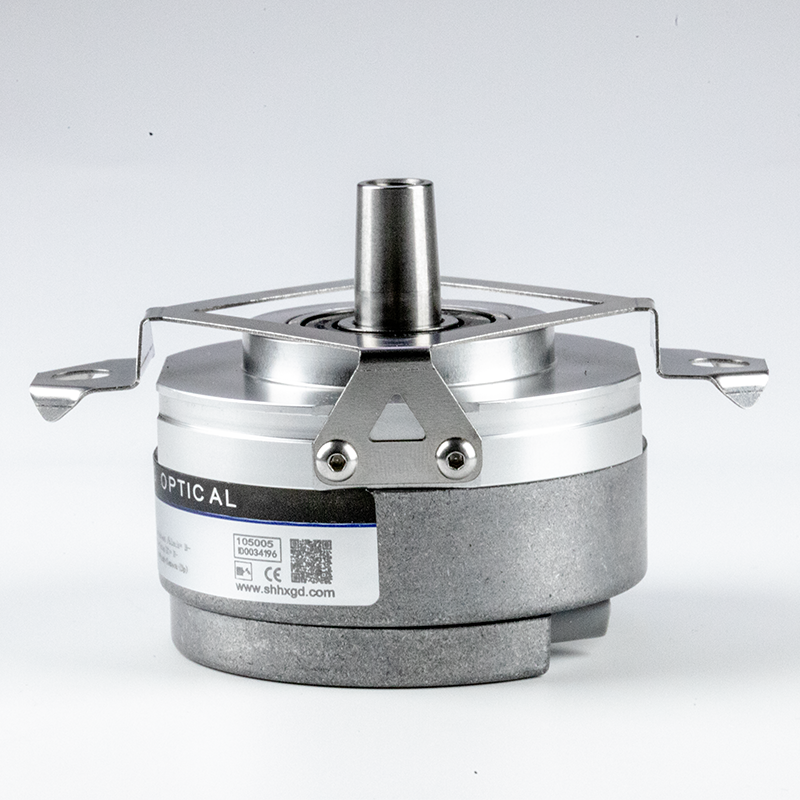

ST58 Tapered Shaft 9.25mm 1024ppr 2048ppr 1Vpp 1Vss Analog Signal Digital Signal Sincos Incremental Encoder Optical Encoder

Share to:

ST58 Tapered Shaft 9.25mm 1024ppr 2048ppr 1Vpp 1Vss Analog Signal Digital Signal Sincos Incremental Encoder Optical Encoder

Brand：HENGXIANG
Factory Price：Negotiable
Supply Ability：50,000 Piece/Pieces per year
Payment Terms：T/T,Cash,Western Union, Paypal,Credit Card
Min.Order Quantity：1pcs
ODM & OEM：Acceptable
Certification：ISO9001&CE&25 ITEMS of IVENTION PATENTS
Delivery date：3-5 working days for sample order, 7-10 days for mass order
Shipment:FedEx/UPS/DHL/other express line

Download:
ST58-E-01100232 Ver. 2.0.pdf
Shaft Type:
Taper Solid Shaft
Outer diameter:
58mm
Thickness:
39mm
Shaft diameter:
9.25mm
Resolution:
1024-2048ppr
Encoder type:
Sincos Encoder
Protection Grade:
IP40
Interface:
Sincos
With UVW:
No

SKU:
Availability:

Quantity:



Inquiry Add to Basket

2048ppr Analog Signal 1Vpp Sincos Incremental Encoder 1Vss Analog Encoder 2048ppr Tapered Shaft 9.25mm Encoder optical encoder

Product Description

Company profile

FAQ

Download

Related Model Number

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Sincos incremental encoder
External diameter	58mm
Thickness	38.2mm
Shaft type	Taper shaft
Taper shaft diameter	9.25mm
Resolution	1024-2048(Sin/Cos)
Supply voltage	DC5V ； DC8-30V
Signal	1Vpp(differential)
	After differential generation Sin/Cos (DC5V; DC8-30V)
	Before differential generation Sin/Cos (DC5V)
Protection grade	IP40
Reverse polarity protection	√
Short-circuit protection	√
Shell material	Aluminum alloy
Shaft material	Stainless steel
Net weight	About 240g (with package)
Mark to space ratio	45% to 55%
Allowable shaft force	Radial 30N; Axial 20N
Reference point signal	One
Certification	CE
package	Carton box

Core advantages: Precision, reliability, convenience, and adaptability to multiple scene requirements

Support multiple types of signal output, covering complex working conditions

ST58 supports three types of output modes: analog signal (1Vpp), analog+digital signal (before/after generation), and incremental digital signal (TTL/HTL), which can be flexibly selected according to different device requirements:

n 1Vpp analog signal: Single cycle output 2048 lines, paired with 1Vpp absolute position value, to meet high-precision positioning requirements;

n Analog+Digital Signal: Supports 1024/2048 line 1Vpp signals before and after generation, balancing the delicacy of analog signals with the stability of digital signals;

n Incremental digital signal: capable of outputting up to 32768 PPR, with optional TTL/HTL differential signals, suitable for mainstream automation control systems.

At the same time, all signals are equipped with reverse polarity protection and short circuit protection. The maximum allowable duration in a short circuit state is 30 seconds, effectively avoiding damage to the encoder caused by circuit faults and improving the safety of equipment operation.
