In the world of industrial automation and motion control, accurate positioning and speed measurement are paramount. This is where shaft encoders come into play. Whether you're working with robotics, CNC machines, or any system requiring precise rotation measurements, the encoder serves as a critical component for feedback in motion control systems. But when it comes to choosing an encoder for your application, one important decision you'll face is whether to opt for a hollow shaft encoder or a solid shaft encoder.
This article aims to provide an in-depth comparison of these two types of encoders. We'll discuss their differences, advantages, and potential applications to help you make an informed decision for your specific needs. By the end of this post, you'll have a clear understanding of how each type of encoder works, as well as the best use cases for both.
When choosing between hollow shaft and solid shaft encoders, the key difference lies in the mounting method and the type of mechanical connection. Hollow shaft encoders are typically used in situations where a more flexible and space-saving installation is required, as they allow for a direct fit over a rotating shaft. On the other hand, solid shaft encoders offer a more rigid, secure connection and are often used in applications where the encoder must be directly connected to the shaft for precise measurement. The right choice will depend on factors such as installation space, load requirements, and mechanical compatibility.
A hollow shaft encoder is a type of rotary encoder designed with a hollow or open-ended shaft that allows it to be mounted directly onto a shaft or axle without the need for additional couplings or adapters. The hollow shaft is typically designed to fit over a rotating shaft, creating a secure connection through a press-fit or clamping mechanism.
The main advantage of a hollow shaft encoder is its ease of installation. Since the encoder is mounted around the shaft, there is no need to worry about aligning the encoder's solid shaft with the machine's shaft. This can save valuable time and labor during setup and maintenance. Additionally, the hollow shaft allows for a more compact and versatile design, making it ideal for situations where space is limited or where the encoder needs to be installed in tight spaces.
Easy Installation: No need for complex mounting systems, as the encoder slides directly over the shaft.
Space-Saving: Hollow design allows for a more compact and flexible setup.
Reduced Wear and Tear: With a direct connection to the shaft, there's less friction and wear, extending the life of the encoder.
Compatibility: Can fit different shaft sizes without needing additional accessories.
Less Rigidity: The encoder is more prone to slight shifts or misalignments during operation compared to a solid shaft design.
Limited Load Capacity: In some cases, the hollow shaft may not be able to handle heavier loads effectively.
Maintenance: Depending on the design, hollow shaft encoders can be slightly more complex to maintain in harsh environments.

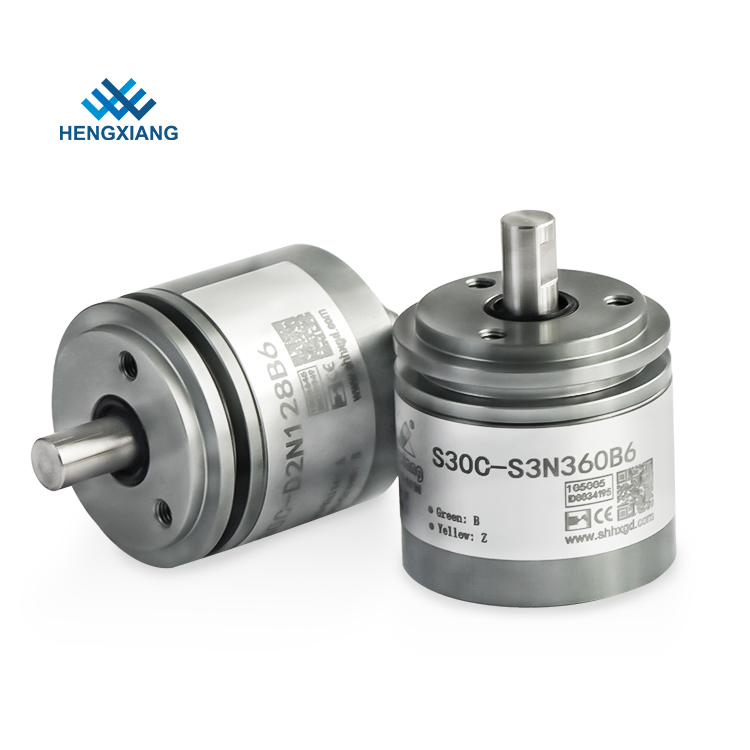

A solid shaft encoder, on the other hand, is designed with a shaft that extends out from the encoder itself, which is then inserted into the corresponding shaft of the machine. The encoder's solid shaft is typically secured using a coupling or a set screw, which ensures a stable and reliable connection to the rotating part.
Solid shaft encoders are often preferred in applications where high precision and robustness are critical. The solid shaft provides a stronger mechanical connection, which makes the encoder ideal for applications requiring higher torque, greater precision, and a more rigid setup.
Greater Precision: The rigid connection ensures more accurate measurements, especially in high-torque environments.
Stability: The solid shaft provides a stable, fixed connection that reduces the risk of misalignment.
Higher Load Capacity: Solid shaft encoders can handle more demanding applications with higher mechanical loads.
Robust Design: More suited for harsh industrial environments and high-speed machinery.
Complex Installation: Requires precise alignment with the shaft and may need additional accessories like couplings or adapters.
Larger Size: Typically larger than hollow shaft encoders, which can be a disadvantage in space-constrained environments.
More Maintenance: Depending on the application, solid shaft encoders may require more frequent maintenance due to the added mechanical components.
| Feature | Hollow Shaft Encoder | Solid Shaft Encoder |
|---|---|---|
| Installation | Easier installation with fewer components | Requires precise alignment and additional coupling |
| Size | More compact and space-saving | Larger and may require additional space |
| Connection Type | Slides directly onto the shaft | Solid shaft inserted into the rotating part |
| Load Handling | Limited in handling heavy loads | Better suited for high-torque and heavy-duty loads |
| Precision | Less rigid, may be more susceptible to misalignment | Provides more stable, precise measurements |
| Cost | Generally less expensive | Can be more expensive due to additional components |
| Maintenance | Can be more complex in harsh environments | Easier to maintain, but requires more care for alignment |
| Applications | Used in tight spaces or when quick installation is needed | Best for high-precision applications and heavy-duty machinery |
When deciding between a hollow shaft and a solid shaft encoder, several factors need to be considered:
Application Type: If you're working in an environment that requires precise control and stability under high loads, a solid shaft encoder is the better option. It is ideal for applications like CNC machines, robotics, and industrial motors where high torque and precision are critical.
Space Constraints: If space is a concern and you need to install the encoder in a compact or limited space, a hollow shaft encoder is a great choice. It allows for a more flexible and space-saving installation, especially when the encoder needs to be mounted in tight locations.
Installation Time: If you need an encoder that can be installed quickly and with minimal hassle, a hollow shaft encoder is more straightforward to set up. It can fit directly over the shaft without the need for additional mechanical parts like couplings or set screws.
Durability and Maintenance: Solid shaft encoders tend to be more durable, especially in harsh environments. They're less likely to suffer from misalignment, which can reduce maintenance costs in the long run.
Both hollow shaft and solid shaft encoders are excellent tools for measuring rotation, but the choice between them depends on your specific needs. If you require a quick, space-efficient, and easy-to-install solution, a hollow shaft encoder may be the best choice. On the other hand, if you need a more rigid, stable connection that can handle high precision and heavy loads, a solid shaft encoder is likely to be a better fit. Ultimately, your decision should be based on factors such as the installation space, load requirements, and environmental conditions.
1. Can a hollow shaft encoder be used in high-torque applications?
While hollow shaft encoders are suitable for many applications, they may not be the best choice for high-torque environments. In such cases, a solid shaft encoder would be more reliable due to its more rigid mechanical connection.
2. Are hollow shaft encoders more cost-effective than solid shaft encoders?
Generally, hollow shaft encoders tend to be less expensive than solid shaft encoders, mainly due to their simpler design and ease of installation. However, this cost advantage may come with trade-offs in terms of precision and load handling.
3. Can I switch from a solid shaft encoder to a hollow shaft encoder?
Switching between the two is possible, but it depends on your system's requirements. You would need to consider compatibility issues, such as shaft sizes, mounting methods, and load handling capabilities, before making the switch.
4. How do I maintain a hollow shaft encoder?
While hollow shaft encoders are relatively low-maintenance, they still need to be kept clean and properly aligned to avoid issues with performance. In harsh environments, more frequent checks may be necessary to ensure optimal performance.
5. Which encoder is better for robotics?
For robotics, the choice between hollow shaft and solid shaft encoders depends on the specific application. If the robot requires precise control and can accommodate a more rigid connection, a solid shaft encoder is often the better option. For more flexible, space-efficient designs, a hollow shaft encoder may be ideal.
