Home » Optical Components » Encoders » Rotary Encoder » SJ50 absolute rotary encoder binary encoder EP50S8 Solid shaft SJ50 single turn gray code output shaft 8mm absolute encoder price

Product Category

SJ50 absolute rotary encoder binary encoder EP50S8 Solid shaft SJ50 single turn gray code output shaft 8mm absolute encoder price

Share to:

SJ50 absolute rotary encoder binary encoder EP50S8 Solid shaft SJ50 single turn gray code output shaft 8mm absolute encoder price

Brand：HENGXIANG Factory Price：Negotiable Supply Ability：50,000 Piece/Pieces per year Payment Terms：T/T,Cash,Western Union, Paypal,Credit Card Min.Order Quantity：1pcs ODM & OEM：Acceptable Certification：ISO9001&CE&25 ITEMS of IVENTION PATENTS Delivery date：3-5 working days for sample order, 7-10 days for mass order Shipment:FedEx/UPS/DHL/other express lineBrand：HENGXIANG Factory Price：Negotiable Supply Ability：50,000 Piece/Pieces per year Payment Terms：T/T,Cash,Western Union, Paypal,Credit Card Min.Order Quantity：1pcs ODM & OEM：Acceptable Certification：ISO9001&CE&25 ITEMS of IVENTION PATENTS Delivery date：3-5 working days for sample order, 7-10 days for mass order Shipment:FedEx/UPS/DHL/other express line

Download:
SJ50-E-01100132 Ver. 4.0.pdf
Outer diameter:
Please select
Thickness:
Please select
Shaft diameter:
Please select
Resolution:
Please select

SKU:
Availability:

Quantity:



Inquiry Add to Basket

rotary encoder suppliers small rotary encoder

Product Description

PRODUCT PARAMETERS

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Absolute encoder
External diameter	51mm
Thickness	29mm
Installation dimension	40mm diameter
Shaft length	16mm
Solid Shaft diameter	8mm D shape
Bit(steps)	5 bit(32ppr); 6 bit(64ppr); 7 bit(128ppr); 8 bit(180ppr); 8 bit(256ppr);9 bit(360ppr); 9 bit(512ppr);10 bit(720ppr);10bit (1024ppr) ;11 bit(2048ppr); 12bit(4096)
Supply voltage	DC5V; DC8-30V
Outlettype	Radial cable
	Radial socket
	Radial cable with plug
Count direction	Counterclockwise
	Outside control direction
	Clockwise
Interface	NPN low level effective
	NPN high level effetive
	PNP high level effetive
	PNP low level effetive
Protection grade	IP50; IP65
Cable length	1M (cable length could be added appropriately by
Cable length	Require, but it need payment individually)
Consumption current	100mA MAX
Top response frenquency	100KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Output code	gray code
Precision	360/(resolution x 4)
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	Not connect to encoder
Starting torque	Less than 5x 10-3N.m
Intertia moment	Less than 3x 10-6kg.m2
Shaft load	Radial 50N; Axial 30N
Top REV	4000RPM; IP65≤3000r rpm
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～ +85°C；storage:-25 ～ +90°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm, 5-55Hz, 2 hours for three axis individually
Sock(endure)	49m/s2, 11 ms three times for X, Y, Z direction individually
Shaft Material	Stainless steel
Shell Material	Dia cast aluminium
Cable length	1000mm(cable with shielding)
Certification	CE
package	Carton box
Net weight	About 300g(with package)

Basic Dimensions

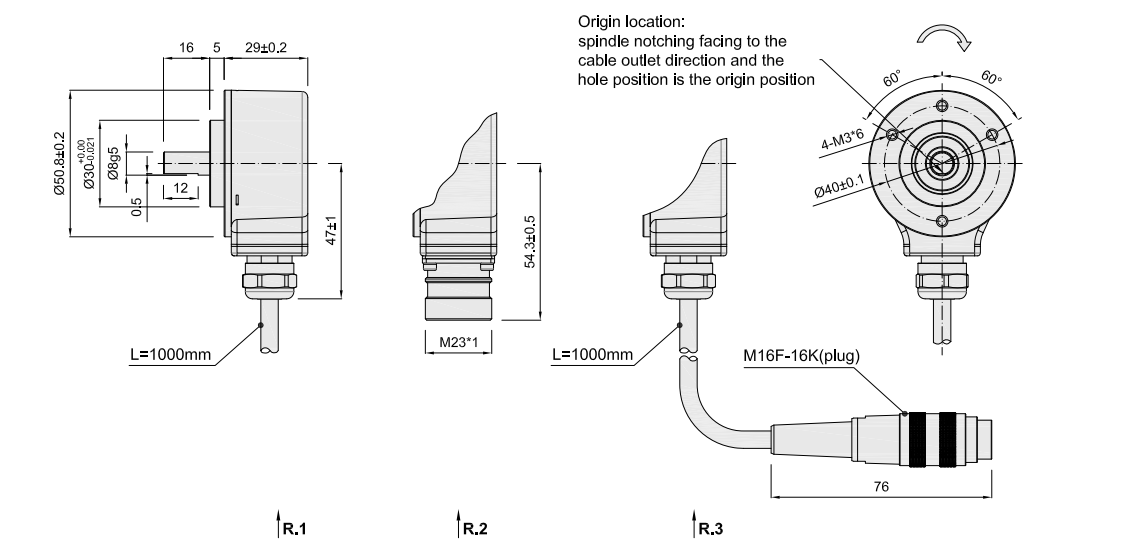

product-HENGXIANG-SJ50 absolute rotary encoder binary encoder EP50S8 Solid shaft SJ50 single turn

product-SJ50 absolute rotary encoder binary encoder EP50S8 Solid shaft SJ50 single turn gray code -1

Assembling Requirement

About SJ50-Series Encoder

Absolute Type-Parallel output(Solid Shaft)Feature: sturdy and durable,output gray code without reading error, direction can be controlled by outside. Application: automation control like motor,CNC,package machine, industrial assembly line,etc. External dimensions: external diameter:51mm, thickness 29mm, diameter of shaft 8mm(D type) Resolution: 12bit(4096 steps per turn) Output code: Gray code Supply voltage: DC5V; DC8-30V Protection: IP50;IP65 Cable length: 1000mm Weight: about 300g

About SJ50-Series Encoder

About Absolute Encoder Basic

The advantage of absolute rotary encoders is that they provide unique position values as soon as they are switched on by scanning the position of a coded element.Absolute encoders have an encoder disc which has marks or slots on a power-transmission shaft and a stationary pickup. The disc records a unique code for each shaft position. Each position corresponds to a unique code, and even movements that occur while there is no power are recorded into accurate position values once the encoder is turned on again.According to a many range of encoder applications, it is necessary to need to measure the accuracy of the motion of a rotary shaft and to know its rotation position, speed, or even acceleration. In order to do this, a electrical part which called a shaft or rotary encoder is used to the motor/shaft assembly.

About Absolute Encoder Basic

About Our Engineer Team

Our engineer designing&development team is the most professional and the most trusted team in China. with over 20 years experienced engineer who specialized in this field.Meet a few of our team of dedicated experts and contact us to learn more about our suite of services.our engineering team knows that the manufacturing challenges of today are extreme, so we designed and built sensors to meet and exceed these demands, regardless of the application or environment.Our disciplined engineer team which has more than 20 years experience in designing and developing allows us to be ahead of our competition in product development cycle time without compromising quality. our factory is committed to delivering quality encoder products to our customers through our OEM/ODM services.

About Our Engineer Team

Advantage of HENGXIANG Encoder Factory

Quick services to save your time!One piece is Ok. Small order is also welcome! Professional recommends to every customer!Our company is a encoder manufacturer over 19 years!Competitive price makes you never over pay!Online Payment such as T/T, western union, credit card and Paypal!Excellent technical and sales team, waiting for your enquiry!High quality to ensure our long-term cooperation!
