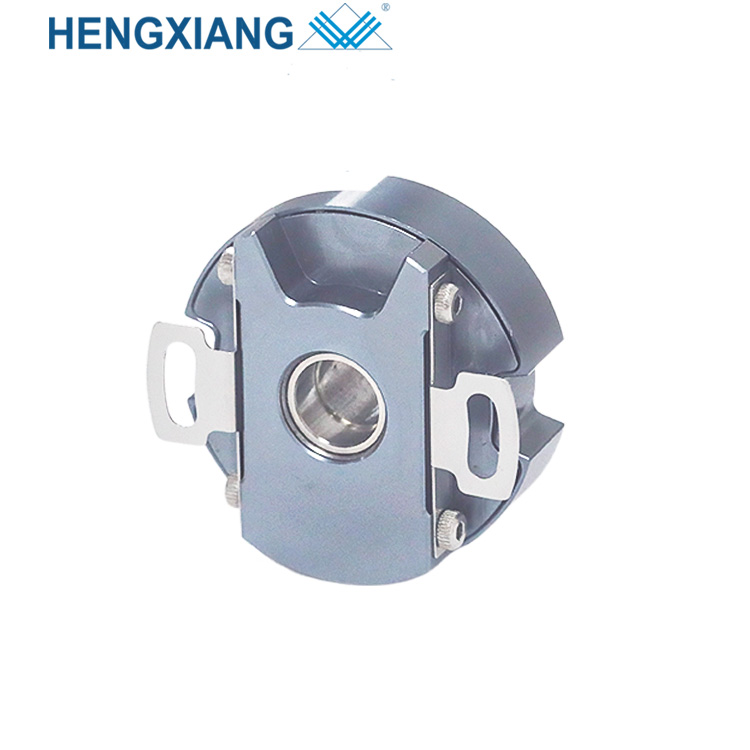

PN35 hollow 8mm resolution 5000 external 35mm soft connection digital junction box photoelectric motor encoder for robotics

Brand:HENGXIANG Factory Price:Negotiate Supply Ability：50,000 Piece/Pieces per Month Port：SHANGHAI Payment Terms：T/T, Cash, Western Union, Paypal, Credit Card Min.Order Quantity：1pcs ODM & OEM：Available Certification：ISO9001/CE Delivery date：3-5 working days for sample order, 7-10 days for mass order

Product Description

PRODUCT PARAMETERS

More

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental Type

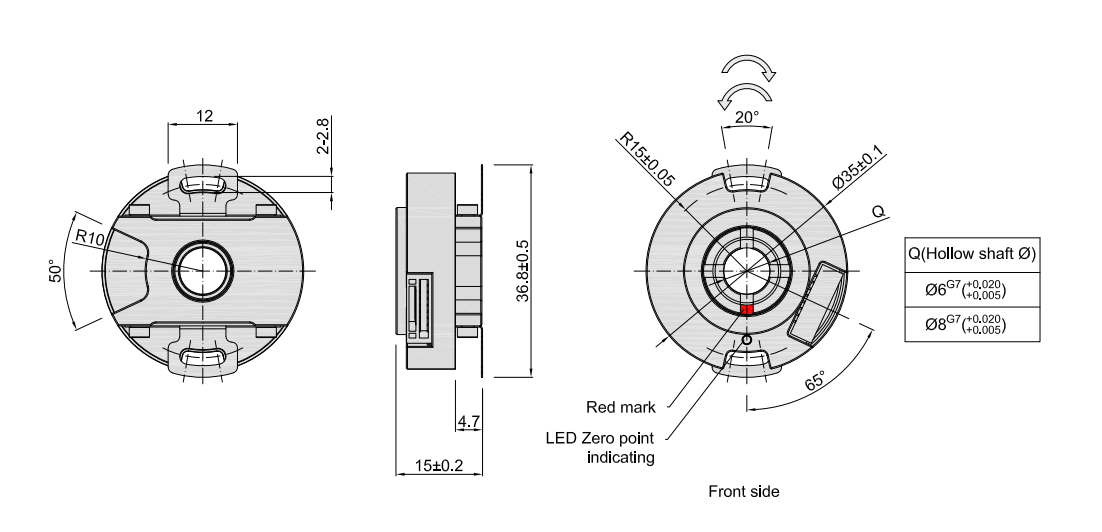

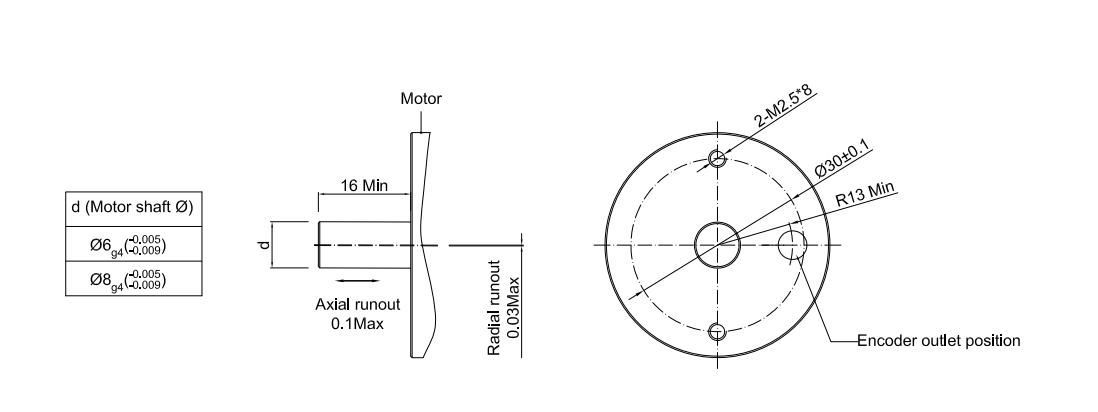

External diameter	35mm
Thickness	15mm
Hollow shaft type	Through shaft
Hollow shaft diameter	6mm;8mm
Resolution	1024/6;/8;2048/6;/8;2500/6;/8;4096/6;/8;5000/6;/8
Output phase	3=A+B+Z; 6=A+A-+B+B-+Z+Z-; 6=Less wiring type A+B+Z Delay U+V+W; 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W-
Supply voltage	DC5V; DC8-30V
Outlet type	Radial connector; Radial cable
Output mode	N=OC(DC5V&8-30V); C=TTL(DC5V)
Output mode	E=HTL(DC8-30V); S=TTL(DC5V)(Less wiring type)
Consumption current	120mA Max
Top response frenquency	100kHZ; 500kHZ; 800kHZ
GND	not connected to the encoder, must be effectively connected to GND
Starting torque	less than 5x10-³N.m
Inertia moment	less than 1.5x 10-6kg.m2
Environmental temperature	Operating:-20 ～+95°C； storage:-25 ～+100°C
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Protection	IP50
Material	Aluminium alloy
Certification	CE
package	Carton box
Net weight	About 70g
