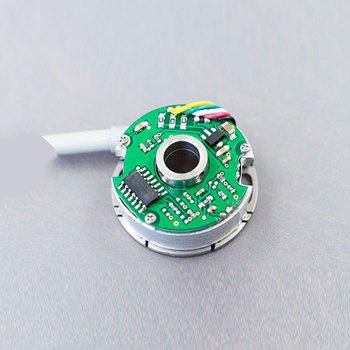

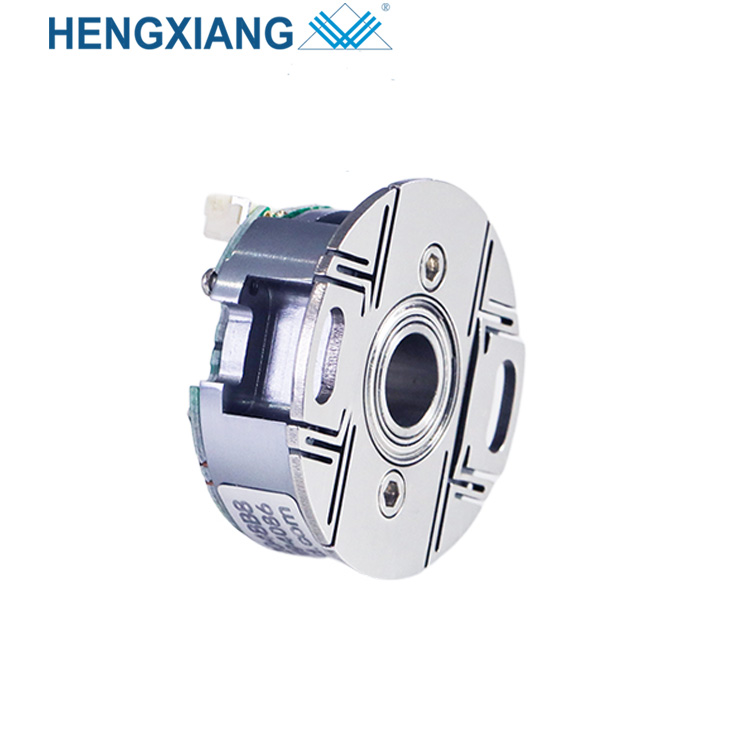

KB35 non shelling 14400 ppr UVW signal line driver encoder 6/8mm hollow shaft dc motor sensor

Brand
HENGXIANG
Factory Price
Negotiable
Supply Ability
50,000 Piece/Pieces per year
Payment Terms
T/T,Cash,Western Union, Paypal,Credit Card
Min.Order Quantity
1pcs
ODM & OEM
Acceptable
Certification
ISO9001&CE&21 ITEMS of IVENTION PATENTS
Delivery date
3-5 working days for sample order, 7-10 days for mass order
Quantity:
Inquiry Add to Basket

ultra thin rotary encoder thin bearingless encoder
Product Description

PRODUCT PARAMETERS

More
Items Basic parameters
Brand HENGXIANG
Encoder type Incremental Type
External diameter 35mm
Thickness 17mm
Hollow shaft type Through hole
Hollow shaft diameter 6mm;8mm
Resolution 1024；2048；2500；3600；5000；7200；10000；14400
Output phase 2=AB；3=A+B+Z; 4=±A±B；6=±A±B±Z；12=±A±B±Z±U±V±W
Supply voltage DC5V; DC8-30V
Outlet type Radial connector; Radial cable
Output mode N=OC(NPN); C=TTL(DC5V)
N=OC(NPN); C=TTL(DC5V)
Consumption current 120mA Max
Top response frenquency 100kHZ; 200kHZ; 300kHZ
GND not connected to the encoder
Starting torque less than 5.9x10-³N.m
Inertia moment less than 1.5x 10-6kg.m2
Environmental temperature Operating:-20 ～+100°C；
storage:-25 ～+110°C
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Protection IP50
Material Aluminium alloy
Certification CE
package Carton box
Net weight About 60g


01

02

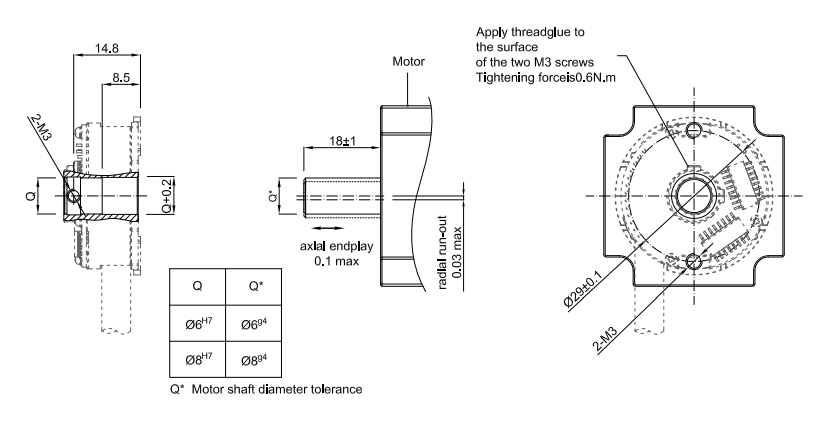

Assembling Requirement
