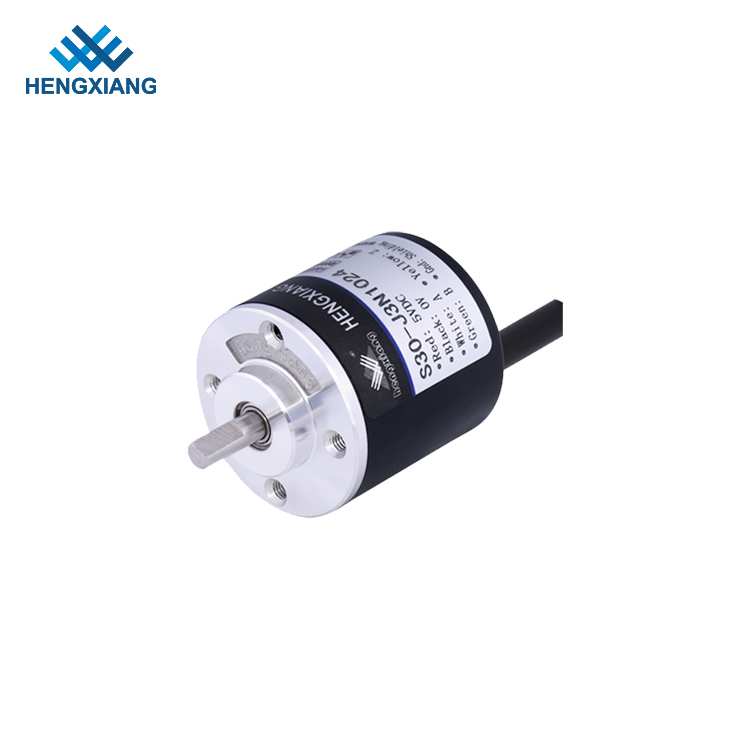

Lightweight Solid Shaft Encoder 4mm Axial Length , CNC Optical Encoder S30

Brand：HENGXIANG Factory Price：Negotiable Supply Ability：50,000 Piece/Pieces per year Payment Terms：T/T,Cash,Western Union, Paypal,Credit Card Min.Order Quantity：1pcs ODM & OEM：Acceptable Certification：ISO9001&CE&25 ITEMS of IVENTION PATENTS Delivery date：3-5 working days for sample order, 7-10 days for mass order Shipment:FedEx/UPS/DHL/other express line

Product Description

PRODUCT PARAMETERS

Items	Basic parameters
External dimensions	External diameter: 30mm
	Thickness: 30mm
	Shaft diameter: 4mm(D type)
Encoder type	Incremental encoder
Resolution	20; 25; 36; 50; 60; 100; 200; 250; 256; 300; 360; 400; 500; 512; 600; 625; 720; 1000; 1024; 1200; 1250; 1440; 2000; 2048; 2500
Output phase	Phase A, B, Z, A-, B-, Z-
Supply voltage	DC5V: DC8-30V
Outlettype	Cable out from side
	Cable out from back
Output mode	NPN&PNP
	Voltage output
	Push-pull output
	Difference output(TTL, HTL, RS422)
Environmental temperature	Operating temperature: -20~+80°(Non icing)
	Storage temperature: -25~+85°(Non icing)
Environmental humanity	Operating and storage: 35~85%RH(non-condensing)
Protection grade	IP50
Cable length	1000mm
Shell	Die cast aluminium
Consumption current	100mA Max
Shaft Load	Radial: 10N; Axial: 5N
Slew Speed	5000rpm
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
Mark to Space ratio	45% to 55%
Top Resonse Frequency	100kHz Max
Shell Material	Dia cast aluminium
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
GND	Not connect to encoder
Shaft Material	Stainless steel
Vibration(endure)	Amplitude 0.75mm, 10-55Hz, 1 hour for X/Y/Z direction individually
Shock(endure)	49/m/s2,three times for X, Y, Z direction individually
package	Carton box
Net weight	60g(with package)
Certification	CE

Basic Dimensions

Assembling requirement
