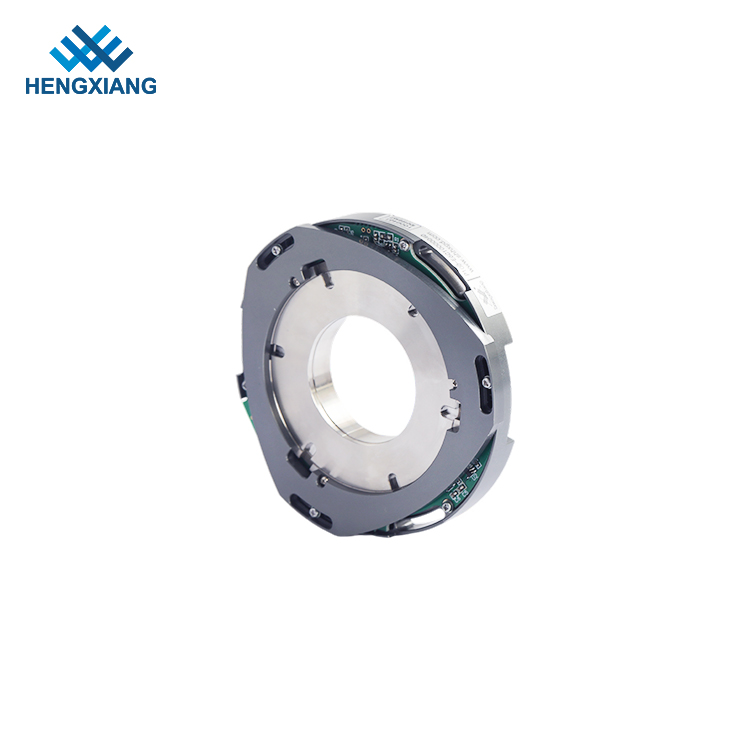

Hollow Shaft
100mm
12.8mm
40/63mm
2500-10000ppr
Incremental encoder
None
TTL, HTL
No
| Quantity: | |
|---|---|
| Items | Basic parameters |
| Brand | Hengxiang |
| Encoder type | Incremental encoder |

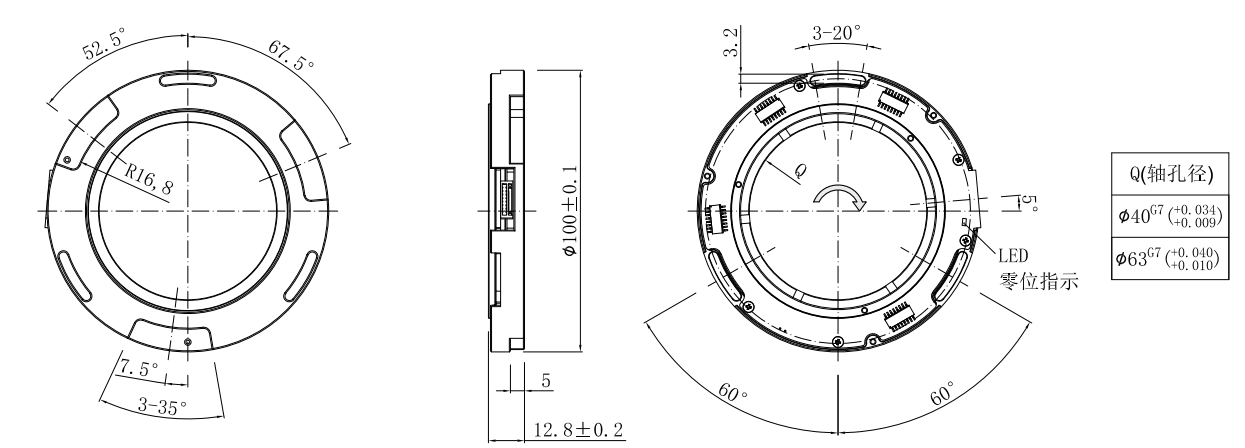

| External diameter | 100mm |
| Thickness | 12.8mm |
| Installation dimension | R16.8mm |
| Hollow shaft type | through hole |
| Hollow shaft diameter | 40mm/63mm |

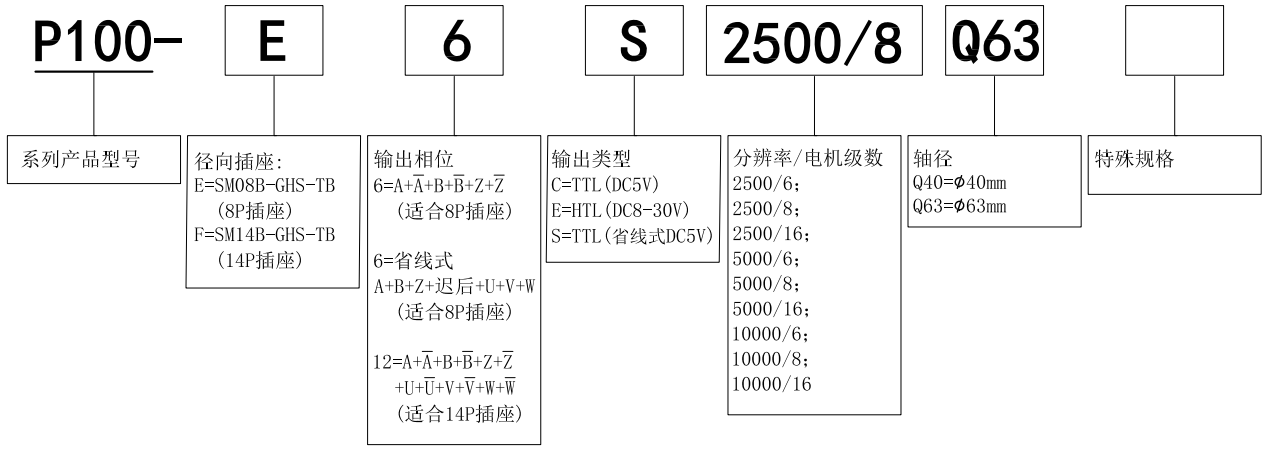

| Resolution | 2500/6,2500/8,2500/16,5000/6,5000/8,5000/16,10000/6,10000/8,10000/16 |
| Output phase | 6=A+A-+B+B-+Z+Z-, 6=wire-saving type A+B+Z Lag+U+V+W |
| 12=A+A-+B+B-+Z+Z-+U+U-+V+V-+W+W- | |
| Supply voltage | DC5V;DC8-30V |
| Outlet type | Radial socket |
| Output phase | C=TTL(DC5V) |
| E=HTL(DC8-30V) | |
| S=TTL(DC5V)(Wire-saving type) | |
| Consumption current | 120mA MAX |
| Top response frenquency | TTL: 800KHz, HTL:1MHz |
| Rise/ Fall time | Less than 1us(cable length:2m) |
| GND | not connect to encoder |
| Environmental temperature | Operating: -20~+105℃; Storage:-25~+110℃ |
| Enviromental humidity | Operating and storage: 35~85%RH(noncondensing) |
| Shell Material | Aluminium alloy |
| Certification | CE |
| package | Carton box |
| Net weight | about 150g |
