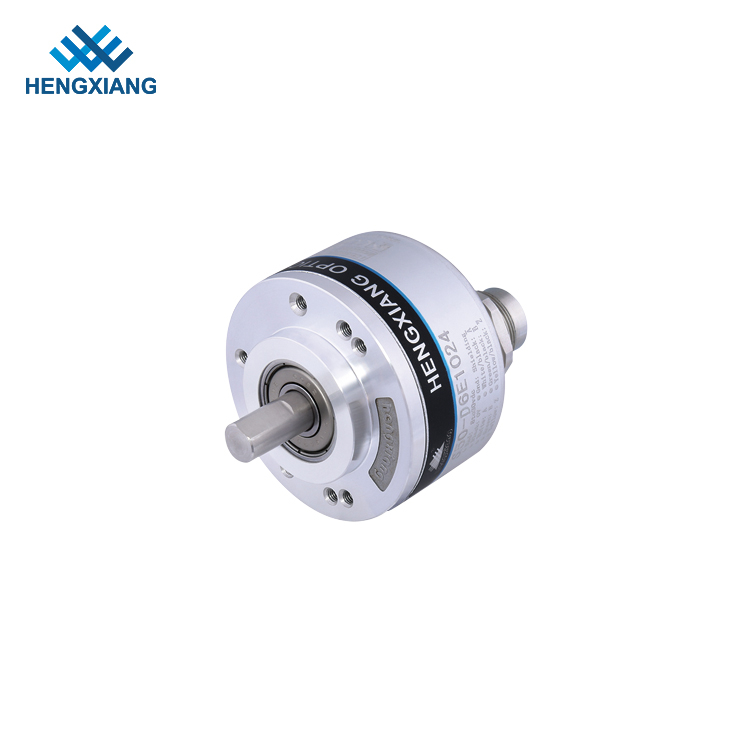

PRODUCT PARAMETERS
| Items | Basic parameters | |
| External dimensions | External diameter: 50mm | |
| Thickness: 30mm | ||
| Shaft diameter: 8mm(D type); Shaft length: 16mm | ||
| Encoder type | Incremental encoder | |
| Resolution | 50;60;100;200;250;256;300;360;400;450;500;512;600;700;720;800;900;1000;1024;1200;2000;2048;2500;5000;8192;10000；11520；16384；20000；23040；32000；32768；40000 | |
| Output phase | Phase A, B, Z, A-, B-, Z- | |
| Supply voltage | DC5V: DC8-30V | |
| Outlettype | Cable out from side | |
| Cable out from bac | ||
| Socket out from back | ||
| Output mode | NPN&PNP | |
| Voltage output | ||
| Push-pull output | ||
| Difference output(TTL, HTL, RS422) | ||
| Environmental temperature | Operating temperature: -20~+90°(Non icing) | |
| Storage temperature: -25~+95°(Non icing) | ||
| Environmental humanity | Operating and storage: 35~85%RH(non-condensing) | |
| Protection grade | IP50;IP65 | |
| Cable length | 1000mm | |
| Shell | Die cast aluminium | |
| Consumption current | 100mA Max | |
| Shaft Load | Radial 40N; Axial 20N | |
| Slew Speed | 6000RPM ;IP65≤4000r rpm | |
| Insulation strength | AC500V 60s | |
| Insulation resistance | 10MΩ | |
| Mark to Space ratio | 45% to 55% | |
| Top Resonse Frequency | 100kHz Max | |
| Shell Material | Dia cast aluminium | |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) | |
| GND | Not connect to encoder | |
| Shaft Material | Stainless steel | |
| Vibration(endure) | Amplitude 0.75mm, 10-55Hz, 1 hour for X/Y/Z direction individually | |
| Shock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually | |
| package | Carton box | |
| Net weight | 190g(with package) | |
| Certification | CE | |
| Reverse polarity protection | √ | |
| Short-circuit protection | √ | |
