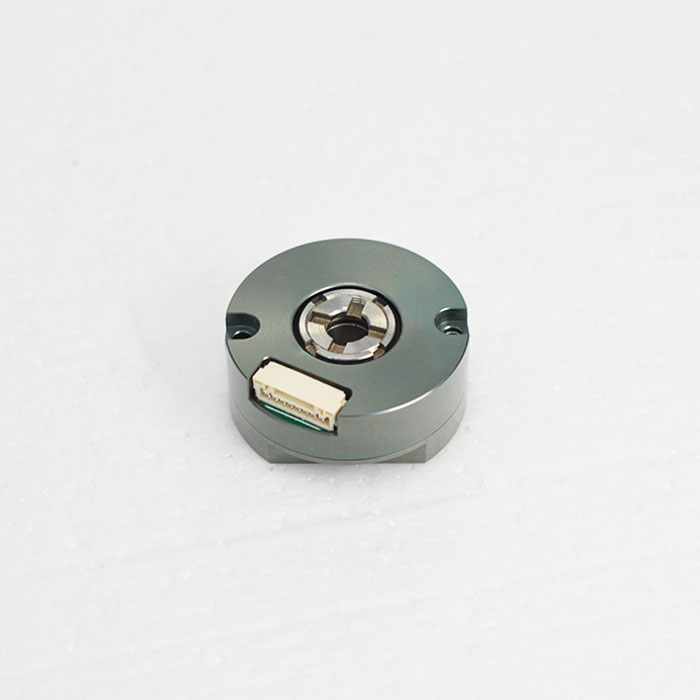

| tems | Basic parameters |
| Brand | Hengxiang |
| Encoder type | Absolute encoder |

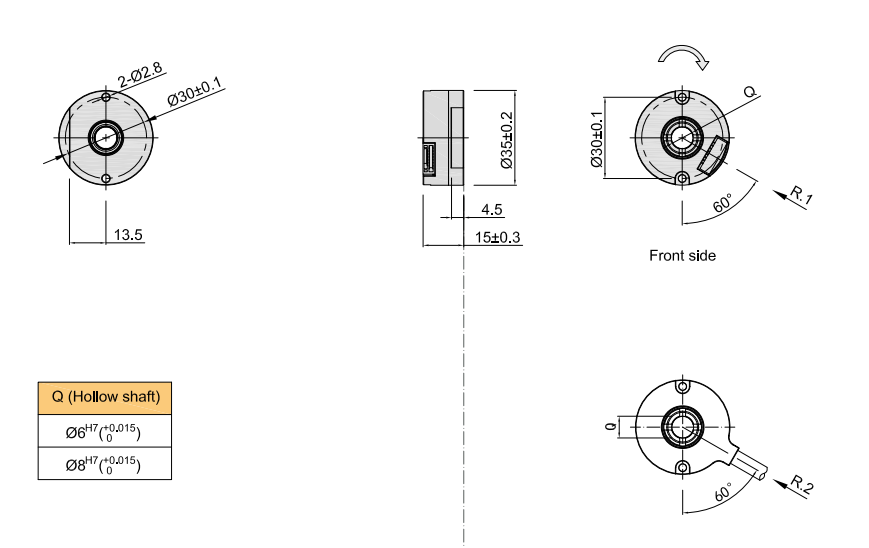

| External diameter | 35mm |
| Thickness | 15mm |
| Hollow shaft type | Through hole |
| Hollow shaft diameter | 6mm; 8mm |
| Resolution | single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit can be expanded to 32bit |
|
|
| Interface | E=Radial socket SM08B-GHS-TB ；J=radial cable |
| Communication | B=BISS-C; S=SSI |

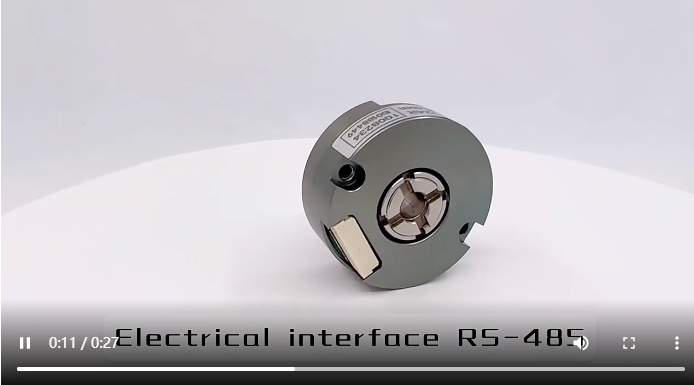

| Electrical connection | R=RS-485 |
| Output mode | G=Single-turn(Gray) |
| S=single-turn(Binary) |
| Scanning principle | Reflective grating code |
| Accuracy | ±80" |
| Response speed | Normal action: 6000min-1 |
| RMS position signal noise | ±2@18 bits/r |
| Communication clock frequency | ≤10MHz(BISS) or ≤ 5MHz(SSI) |
| Starting time | typical value: 13ms |
| Absolute position sampling period | ≤75 ns |
| Allowable speed | ≤32200 r/min (restricted by mechanical speed limit) |
| Cable | Differential twisted-paired cable |
| Cable length | 200mm-10000mm |

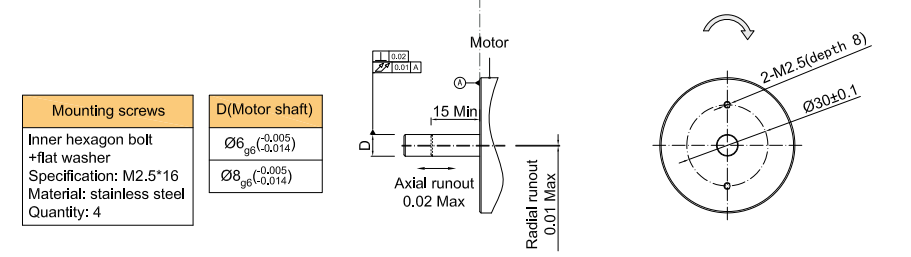

| Mechanical Connection | Concentric shaft ring locking structure |
| Starting Torque | less than 5×10-3 N.m |
| Inertial moment | less than 1.5×10-6 kg.m2 |
| Shaft load | Radial 15N; Axial 5N |
| Slew speed | ≤6000rpm |
| Shell Material | Aluminum alloy |
| Environmental temperature | Operating: -20~+95℃; Storage: -25~+95℃ |
| Environmental humidity | Operating and storage: 35~85%RH(Noncondensing) |
| Vibration | Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually |
| Shock | 490m/s2 11ms, three times for X,Y,Z direction individually |
| Protection | IP50 |
| Net weight | About 70g |
