When discussing industrial automation, robotics, or motion control systems, the terms "A", "B", and "Z" signals often come up in relation to encoders. For anyone working in the field, or those looking to understand how precise motion is achieved, it's essential to grasp the role of these signals in encoders. At first glance, these may seem like simple binary signals, but in reality, they play a crucial role in improving the performance of a wide range of applications.
In this article, we'll delve deep into the concept of encoders and explore the significance of the AB and Z signals. These signals are fundamental for accurate position tracking and motion control. We'll explain how they work, their impact on direction detection, and their applications in various industries. By the end of this post, you'll have a thorough understanding of how ABZ encoders function and why they are essential for modern precision engineering.
AB and Z signals in encoders are essential for accurate motion control and position detection. A and B signals typically represent two quadrature outputs used to detect rotational direction and position, while the Z signal provides an index pulse, often marking a home position. Understanding the relationship between these signals is crucial for optimizing encoder performance in precision applications.

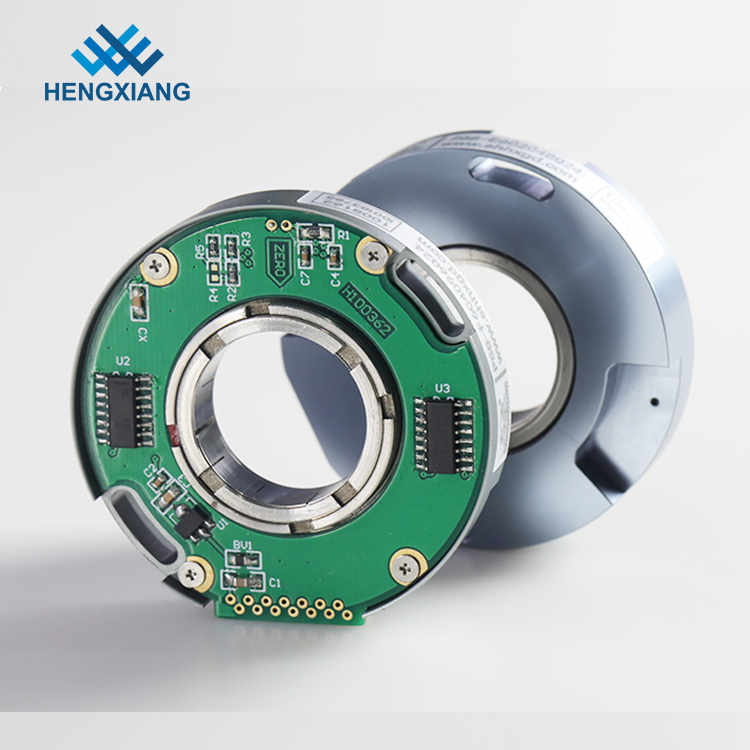

Encoders are devices used to convert the rotational position of a shaft or axle into an electrical signal. They are commonly used in robotics, motor control systems, CNC machines, and other applications requiring precise movement and positioning. The most common types of encoders are incremental encoders and absolute encoders, with the incremental type being more prevalent in many applications due to its simplicity and lower cost.
In an incremental encoder, the most common signals are A and B, which are often referred to as quadrature signals. These two channels work together to provide both position and direction information. But how do they work?
In a quadrature encoder, the A and B signals are offset from each other by 90 degrees, meaning they are "out of phase". This phase shift allows the system to determine the direction of rotation.
When the A signal leads the B signal, the encoder is moving in one direction (typically clockwise).
When the B signal leads the A signal, the encoder is moving in the opposite direction (typically counterclockwise).
This phase difference is the key to direction detection. By measuring the relative timing of the A and B signals, the encoder can detect not only the position but also the direction of movement.
The A and B signals are typically square waves with the same frequency, but with the phase difference allowing for the determination of direction. The number of pulses generated by these signals during each rotation can also be used to determine the resolution of the encoder—i.e., how precisely the position is being measured.
While A and B signals are essential for tracking the direction and movement of the encoder, there is another important signal known as Z. This signal is typically used in incremental encoders to provide a reference point, often referred to as the index pulse.
The Z signal is unique because it only sends a pulse once per revolution of the encoder. This makes it a critical reference signal in many applications. The Z pulse allows the system to know when a full rotation has been completed, and it can be used to recalibrate or reset the position counter to zero. This is particularly useful in applications where an accurate home position is crucial, such as in CNC machines or robotic arms.
The Z signal can also be used to synchronize the encoder with other systems in a multi-axis setup. For example, in a robotic arm with multiple encoders, the Z signal can act as a common reference point, ensuring that all encoders are aligned and synchronized to the same starting position.
In summary, while A and B provide the means to track position and direction, the Z signal serves as a reference for one complete revolution. This combination of signals ensures both precision and reliability in motion control systems.
One of the primary advantages of using A and B signals is their ability to detect the direction of movement. As mentioned earlier, these two signals are out of phase with each other. By comparing the phase relationship between the two signals, an encoder can determine which way the shaft is rotating.
Clockwise Rotation: If the A signal leads the B signal, this indicates a clockwise rotation.
Counterclockwise Rotation: Conversely, if the B signal leads the A signal, this indicates a counterclockwise rotation.
This precise detection of direction is made possible by the 90-degree phase shift between the two signals. The encoder system constantly monitors the relationship between A and B, updating the position count as the shaft rotates. This allows for continuous monitoring of the rotational movement, making AB encoders highly effective for precise motion control.
The ability to detect direction is essential in many precision applications. For example, in a robotic arm, knowing the exact direction of movement allows the system to make complex maneuvers. Similarly, in motor control systems, precise direction detection ensures that the motor rotates correctly in both forward and reverse directions.
In some advanced encoders, the A and B signals can also be used to provide information about speed by measuring the rate at which pulses are generated. Faster rotations generate more pulses in a given time period, while slower rotations generate fewer pulses, providing a feedback mechanism for speed control.
The use of A, B, and Z signals is widespread across industries that require precision motion control. These signals enable precise position tracking, direction detection, and synchronization, making them integral to numerous applications.
In industrial automation, ABZ encoders are used extensively to monitor and control the movement of machinery. For example, in a conveyor belt system, encoders with AB signals are used to track the position of the belt, ensuring it moves in the correct direction and at the proper speed. The Z signal can reset the system after each cycle, ensuring that each part of the process is aligned and synchronized.
In robotics, encoders are used to control the movement of joints and actuators. The AB signals allow the system to detect the position and direction of the joints, while the Z signal helps ensure that the robot's limbs return to a known starting position. This is critical for tasks like picking up objects, assembling parts, or performing complex movements in a repeatable manner.
CNC (Computer Numerical Control) machines rely on encoders to precisely control the movement of tools. The A and B signals allow the machine to track the position of the tool in real-time, ensuring accurate cuts and movements. The Z signal can be used to recalibrate the machine after each cycle, ensuring the tool starts each operation from the correct position.
In medical equipment, such as imaging devices or robotic surgery tools, precision movement is paramount. Encoders with AB and Z signals are used to ensure the accurate positioning of equipment parts, such as scanners or robotic arms. These signals help maintain high levels of accuracy in delicate procedures where even a small error can have significant consequences.
In more advanced applications, the synchronization of ABZ signals is crucial for maintaining high levels of accuracy and performance. By ensuring that the A, B, and Z signals are properly aligned, encoders can provide more reliable data and minimize errors caused by timing mismatches.
Enhanced Accuracy: Synchronization of the ABZ signals ensures that the encoder's position data is as precise as possible, reducing the risk of drift or error in critical systems.
Improved Reliability: By ensuring all signals are aligned and working together, the encoder can provide more consistent and dependable results.
Easier Integration: Proper signal synchronization makes it easier to integrate encoders into larger systems, ensuring that all components work together seamlessly.
Understanding AB and Z signals in encoders is crucial for anyone working with precision motion control or position tracking systems. These signals, though simple in concept, play a vital role in ensuring accurate movement, direction detection, and synchronization in a wide range of applications. From industrial automation to robotics and CNC machinery, ABZ encoders are the backbone of many high-precision systems.
By understanding how these signals work together, engineers and technicians can design and implement more efficient, reliable, and accurate motion control systems. Whether you are working on a conveyor belt, robotic arm, or medical device, the principles of AB and Z signals will help you achieve optimal performance.
1. What is the difference between A, B, and Z signals in encoders?
The A and B signals are quadrature signals that help detect position and direction of rotation. The Z signal, on the other hand, is an index pulse used to mark a reference position, often once per revolution.
2. How do AB signals help in detecting the direction of rotation?
The A and B signals are offset by 90 degrees. By comparing the phase relationship between these signals, an encoder can determine whether the rotation is clockwise or counterclockwise.
3. Why is the Z signal important in encoders?
The Z signal provides a reference pulse, typically once per revolution, to help the system identify a home or reset position. It ensures that the encoder's position data remains accurate over time.
4. What are the main applications of ABZ encoders?
ABZ encoders are used in applications requiring precise motion control, such as industrial automation, robotics, CNC machines, and medical equipment. They help ensure accurate position tracking and direction detection.
5. How does synchronization of ABZ signals improve performance?
Synchronization ensures that the A, B, and Z signals are aligned, providing more accurate and reliable position data. This leads to better performance and reduces the risk of errors in critical applications.
