What Does An Encoder Consist of？

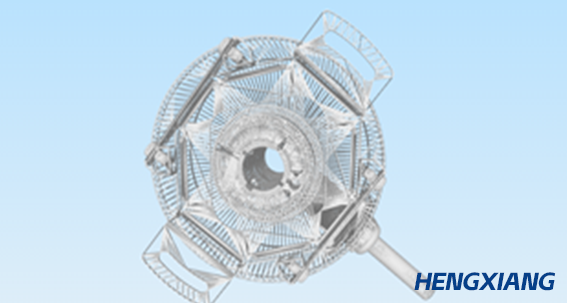

What does an encoder consist of?

An encoder encoder usually consist of the following parts:

Part 1: Mechanical parts

Shaft: The rotating shaft of the encoder, used to connect to mechanical equipment.

Bearings: Support the shaft and reduce friction.

Housing: Protect the electronic and optical components inside the encoder.

Part 2: Optical parts

Light source: Usually a light-emitting diode (LED) that emits light signals.

Photosensitive element: Such as a photodiode or phototransistor, used to receive the reflected light signal.

Part 3: Electronic components

Signal processing circuit: Converts the light signal received by the photosensitive element into an electrical signal and processes it.

Output interface: Outputs the processed signal to an external device, such as a PLC or computer.

Part 4: Encoder disk:

Code disk: There is a specific coding pattern on it, which is used to generate position information, the materials of the encoder disk usually is metal, plastic or glass.

Part 5: Connection

Cable: Used to connect the encoder to external devices

Plug: replacing cables will become easier

Socket: replacing cables will become easier and sockets with high protection levels are also used in harsh scenarios.
