E50S8-1024-3V24 cheap encoder price S50 speed sensor distance measuring sensor

这里可以自定义设置
E50S8-1024-3V24 cheap encoder price S50 speed sensor distance measuring sensor
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
HEN GXIANG
Model Number:
E50S8-1024-3V24 S50 speed sensor
Usage:
PRESSURE SENSOR
Theory:
Optical sensor
Output:
Other
Item:
E50S8-1024-3V24 S50 speed sensor distance measuring sensor
External diameter:
50mm
Shaft diameter:
8mm (D type)
Thickness:
30mm
Resolution:
Max 23040PPR
Protection grade:
IP50 & IP65
Supply voltage:
DC5V & DC8-30V
Output mode:
NPN & voltage output & line driver output
Wire length:
1M
Weight:
about 190g (with package)

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
0.250 kg
Package Type:
Carton box for E50S8-1024-3V24 S50 speed sensor distance measuring sensor
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Product Description



E50S8-1024-3V24 S50 speed sensor distance measuring sensor



1) Advantages



1, Factory advantage

------Customer Repurchase rate ≥ 85%

------Over 25 years experience engineer team in research and development

------ CE & ISO9001 & SGS Certification



2, Encoder Advantages

    --- Mini outer size of 50mm

   --- Solid shaft 6mm,8mm

   --- Resolution max to 23040ppr.

   --- Power supply voltage 5-30V

   --- Max motor speed to 24000 RPM

3, Application: textile industry, packing machinery, production line, etc., for automation control.







Product Description





S50 solid shaft encoder





1) Advantages



1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control



2) S50- Series Encoder Specification



BrandHENGXIANG
External dimensionsExternal diameter: 50mm
Thickness: 30mm
Shaft diameter:6mm/8mm/10
Resolution 50;60;100;200;250;256;300;360;400;500;512;600;700;720;800;900;1000;1024;1200;2000;2048;2500;50008192;10000;11520;16384;20000;23040
Output phasePhase A,B,Z ,A-,B-,Z-
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Cable out from back
Socket out from back
Output modeCollector open circuit output(NPN &PNP)
Voltage output
Push-pull output
Line drive (26LS31)
Line drive (RT7272)
Line drive (Compatible RS422)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1000mm
Shell Aluminium
PackageCarton box
Net weight About  190g (with package)
Certification CE

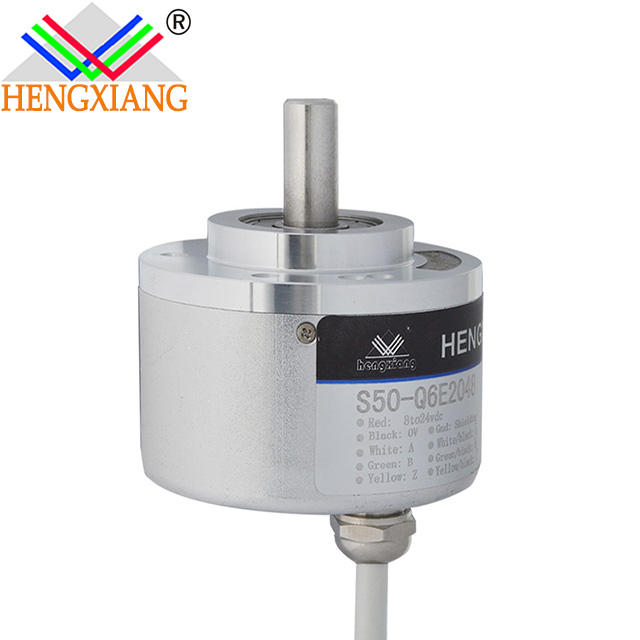

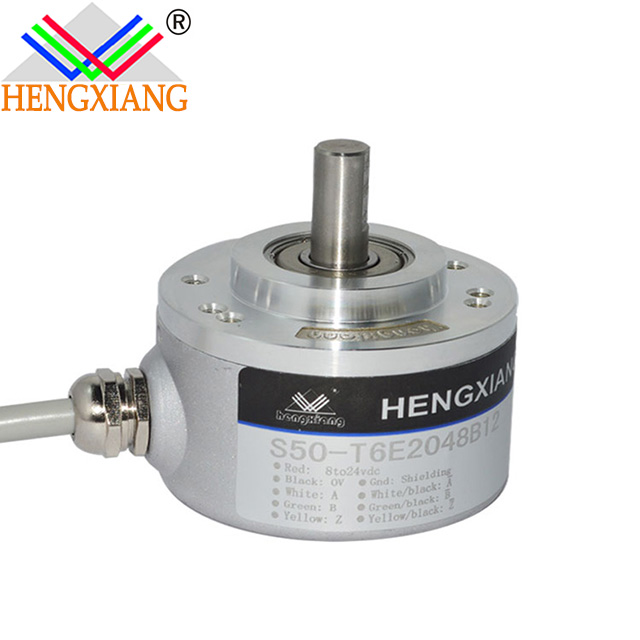

3) Pictures









4)Machine Dimension
