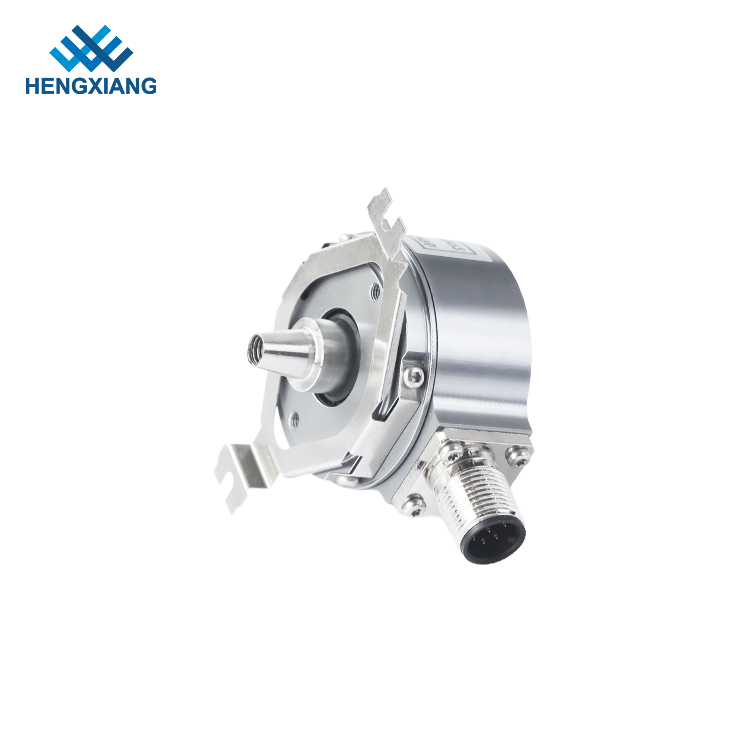

Taper Solid Shaft
42mm
29.8mm
6.5mm
1024ppr
Sincos Encoder
IP65
Sincos
No
| Quantity: | |
|---|---|
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 42mm |
| Thickness | 29.8mm |
| Installation dimension | 60±0.1mm diameter |
| Shaft type | Taper shaft |
| Taper shaft diameter | 6.5mm |
| Bit(steps) | 1024 (Sin/Cos) |
| Supply voltage | DC5V ； DC8-30V |
| Signal | After differential generation Sin/Cos (DC5V; DC8-30V) |
| Before differential generation Sin/Cos (DC5V) | |
| Protection grade | IP65 |
| Cable length | 1M (cable length could be added appropriately by |
| require, but it need payment individually. Max 100m) | |
| Supply voltage | DC4.5V...5.5V; DC8...30V |
| Maximum output frequency | ≤200kHz |
| Reverse polarity protection | √ |
| Short-circuit protection | √ |
| Starting torque | ≤1.0 Ncm (at 20℃） |
| Operating torque | ≤0.8 Ncm (at 20℃） |
| Permissible movement static | ±0.3mm (radial); ±0.5mm (Axial) |
| Permissible movement dynamic | ±0.05mm (radial); ±0.1mm (Axial) |
| Max. angular acceleration | ≤500,000 rad/s² |
| Operating speed | 6000min^-1 |
| Bearing lifetime | 3.6x10^9 |
| Shell material | Aluminum alloy |
| Shaft material | Stainless steel |
| Cable length | 1000mm |
| Certification | CE |
| package | Carton box |
| Net weight | About 150g (with package) |
Shanghai Hengxiang Optical Electronics Co., Ltd. is a high-tech enterprise specializing in the creation, research, production, and marketing of high-precision optical encoders. We have a mature independent research and development capability, which enables to customize the production of exclusive models based on the needs of new development technology products. We founded in 2001 and exported products to domestic and overseas after 21 years of sedimentation. Our company mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.
We focus on being a well-known brand in the field of precision optical encoders and aim to be a leader in international precision encoders.
"Precision in Sensing for a Sci-tech Life.” "Hengxiang will adhere to the corporate principles of "Integrity, Precision & Pragmatism, Customer-oriented, Unity and Mutual-success".
Q: What's your major products?
A: Our company established products from optical lens and encoder disk,which provide a strong theoretical basis for encoders, after 20 years development, we exteneded our business to encoders , this is why our quality is highly assured and won positive feedback compared to other encoder factory.
Q: Are you a manufacturer or a agency?
A: We are a factory for over 23 years of manufacturing experience,welcome to visit our factory,we are located in Shanghai city, China.
Q: Can I customize an encoder if there's no similar parameters from your current catalog?
A: Yes, we can provide customized services,we also have laser printing machines to custom your own logo or part number;
If you would like to get an equivalent products for other brands,you may contact us to get an accurate price and parameters confirmation, we will reply you within one hour in working time.
Q: What is your MOQ?
A: MOQ is 1pcs for our regular encoders.
Q: How long does the lead time take?
A: Delivery takes within 1 week for samples,about 10 days for mass order for regular encoders.
