Hollow Shaft
60mm
40mm
6/8/10/12/14/15mm
100-5000ppr
Incremental encoder
IP65
TTL HTL NPN PNP Push-Pull Voltage
No
| Quantity: | |
|---|---|

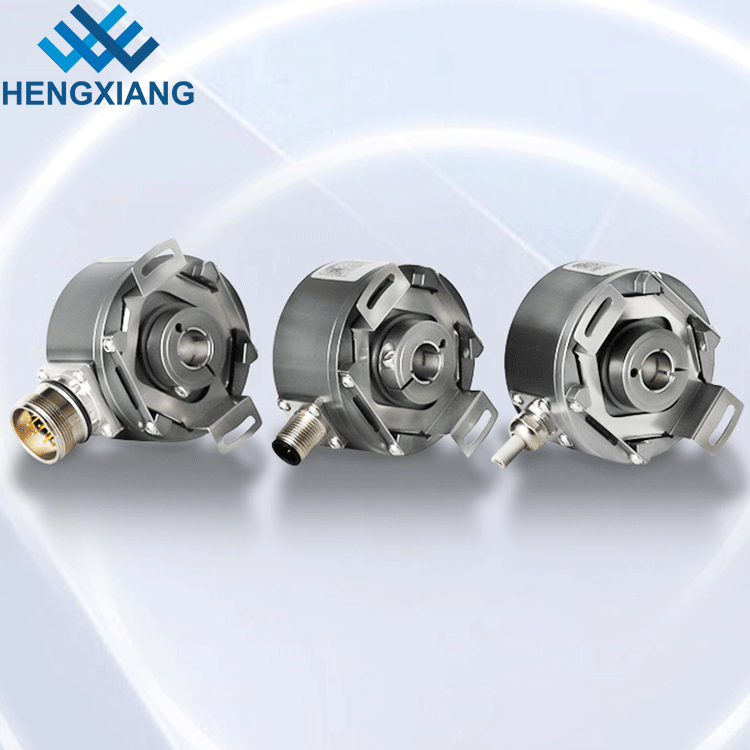

K60
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 60mm |
| Thickness | 40mm |
| Installation dimension | 63mm |
| Hollow shaft type | through hole |
| Hollow shaft diameter | 6mm,8mm,10mm,12mm;14mm;15mm |
| Resolution | 9;20;50;60;66;100;200;250;300;360;400;450;500;512;600; |
| 720;750;800;900;1000;1024;1200;1440;1500;1800;2000; | |
| 2048;2400;2500;3000;3600;4000;4096;4800;5000;8000; | |
| 8192;10000;16000;16384;20000;32000;32768;40000; 46080;48000;65536 | |
| Output phase | Phase A,B,Z A- B- Z- |
| Reverse polarity protection | √ |
| Short circuit protection | √ |
| Supply voltage | DC5V ; DC8-30V |
| Outlettype | Cable out from side |
| Cable out from back | |
| Output mode | NPN/PNP(Open Collector Output) |
| Voltage output | |
| Push-pull output | |
| TTL (DC5V, 26LS31) | |
| TTL (DC5V, 26C31) | |
| HTL (DC8-30V) | |
| Environmental temperature | Operating temperature: -40~+90° |
| Storage temperature: -40~+95° | |
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
| Shell | Aluminium alloy |
| Consumption current | 120mA Max |
| Shaft Load | Radial: 40N; Axial:20N |
| Top REV | ≤5000RPM |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| Mark to Space ratio | 45% to 55% |
| Top Resonse Frequency | 300kHz Max |
| Shell Material | Aluminium alloy |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
| GND | not connect to encoder |
| Shaft Material | Stainless steel |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for X/Y/Z direction individually |
| Shock(endure) | 490m/s2,11 ms three times for X,Y,Z direction individually |
| Protection grade | IP65 |
| Cable length | 1000mm |
| starting torque | less than 9.8X10-3 N.m |
| Intertia moment | less than 6.5x 10-6kg.m2 |
| package | Carton box |
| Net weight | About 350g (with package) |
| Certification | CE |
Shanghai Hengxiang Optical Electronics Co., Ltd. is a high-tech enterprise specializing in the creation, research, production, and marketing of high-precision optical encoders. We have a mature independent research and development capability, which enables to customize the production of exclusive models based on the needs of new development technology products. We founded in 2001 and exported products to domestic and overseas after 21 years of sedimentation. Our company mainly engaged in the encoder, optical lens, germanium products, etc. The strict control of product quality and high precision and high standard of deep processing technology serve the elevator, motor, CNC, textile, robot, wind power, medical, assembly line equipment, and other automation technology industries.
We focus on being a well-known brand in the field of precision optical encoders and aim to be a leader in international precision encoders.
"Precision in Sensing for a Sci-tech Life.” "Hengxiang will adhere to the corporate principles of "Integrity, Precision & Pragmatism, Customer-oriented, Unity and Mutual-success".
Q: What's your major products?
A: Our company established products from optical lens and encoder disk,which provide a strong theoretical basis for encoders, after 20 years development, we exteneded our business to encoders , this is why our quality is highly assured and won positive feedback compared to other encoder factory.
Q: Are you a manufacturer or a agency?
A: We are a factory for over 23 years of manufacturing experience,welcome to visit our factory,we are located in Shanghai city, China.
Q: Can I customize an encoder if there's no similar parameters from your current catalog?
A: Yes, we can provide customized services,we also have laser printing machines to custom your own logo or part number;
If you would like to get an equivalent products for other brands,you may contact us to get an accurate price and parameters confirmation, we will reply you within one hour in working time.
Q: What is your MOQ?
A: MOQ is 1pcs for our regular encoders.
Q: How long does the lead time take?
A: Delivery takes within 1 week for samples,about 10 days for mass order for regular encoders.
